Working It Rear Panel Features
2• 6
Rear Panel Features
12. Phones: Keep it quiet around the house by connecting headphones to the Phones
jack. Just remember to unplug your headphones when you want to rock the house
again—plugging in headphones disables your speaker outputs. The Master knob sets
the output level while you’re using headphones—be sure you turn the knob down as
you switch between headphones and the speakers to make sure you don’t unexpectedly
blast yourself with volume.
13. Pedal: Connect the RJ-45 cable supplied with your FBV or FBV Shortboard here.
Chapter 4 has the full details.
14. MIDI In & MIDI Out: Connect standard MIDI cables here. Duoverb always sends
and receives on MIDI Channel 1. See the MIDI appendix for more details.

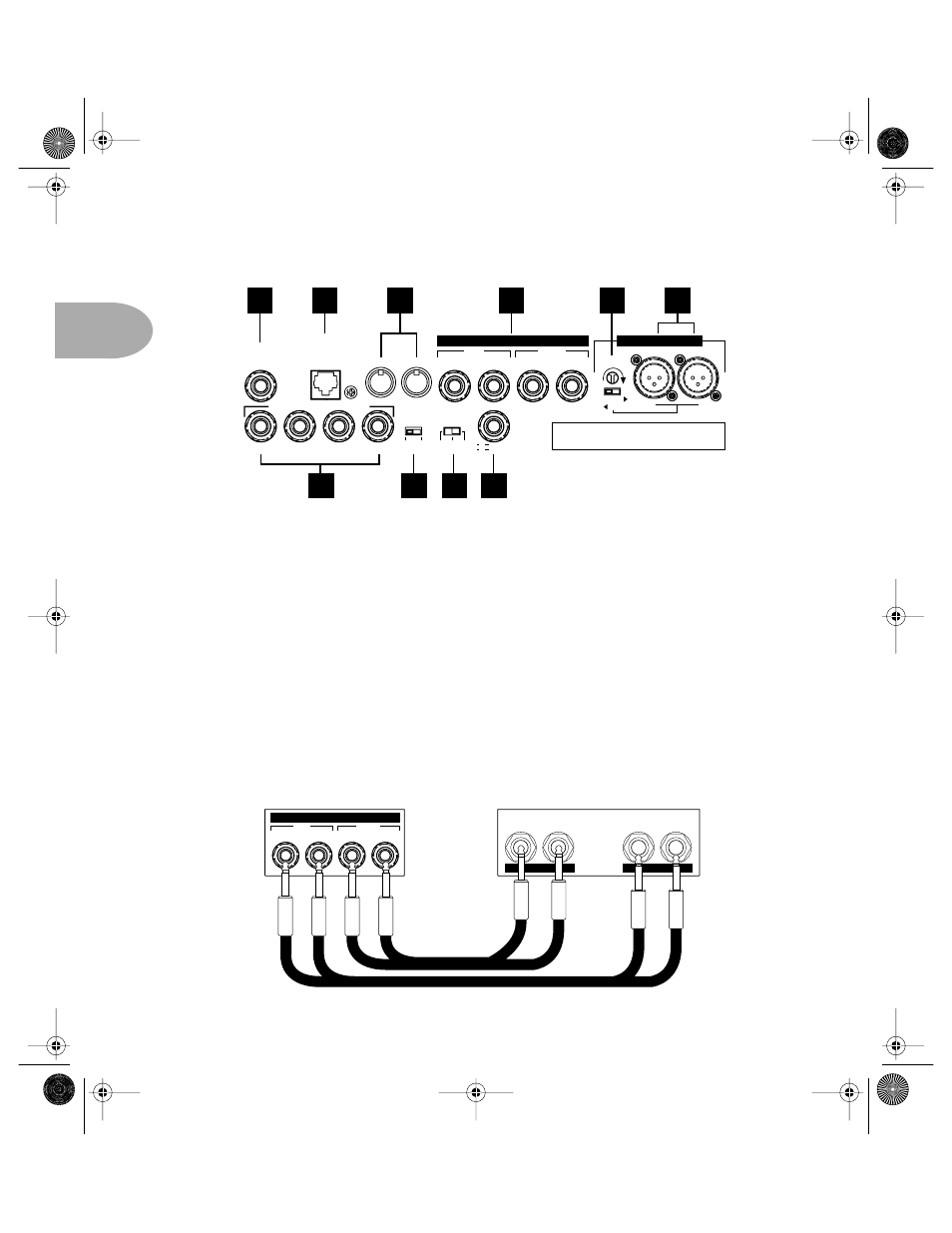

15. Effects Loop: Use the Left(Mono) Send and Return for a mono rack effect. Connect
stereo effects as shown below. Generally stompboxes go before the amp, not in this
loop. When your amps are Split, Amp 1 comes out left only, and Amp 2, right only.
12 15 16 17
18 19 20 21
14
RETURN SEND
13
OUTPUT
IMPEDANCE
4 OHMS
CABINET
MODELING
OPEN RIGHT LEFT RIGHT
SPEAKER OUTS / CLASS 2 WIRING
8 OHMS CLOSED OFF
MIDI OUT MIDI IN PEDAL PHONES LEFT (MONO) RIGHT LEFT (MONO) RIGHT
EFFECTS LOOP
I/ II SWITCH LEFT
-22dBu
RIGHT LEFT
LEVEL TRIM
+4dBu
XLR OUTPUTS - PIN 2 HOT
LIFT
GROUND
connect FBV Class Foot Controller here
(not compatible with Floor Board or FB4)
- MONO -
SERIAL NUMBER
Rack FX unit
INPUT OUTPUT
RIGHT LEFT RIGHT LEFT
Duoverb FX Loop
RETURN SEND
LEFT (MONO) RIGHT LEFT (MONO) RIGHT
EFFECTS LOOP
