NOTE:

Lincoln Electric assumes no responsibility for liablilities resulting from board level troubleshooting. PC Board repairs will invalidate your factory warranty. Individual Printed Circuit Board Components are not available from Lincoln Electric. This information is pro-
vided for reference only. Lincoln Electric discourages board level troubleshooting and repair since it may compromise the quality of the design and may result in danger to the Machine Operator or Technician. Improper PC board repairs could result in damage to the
machine.

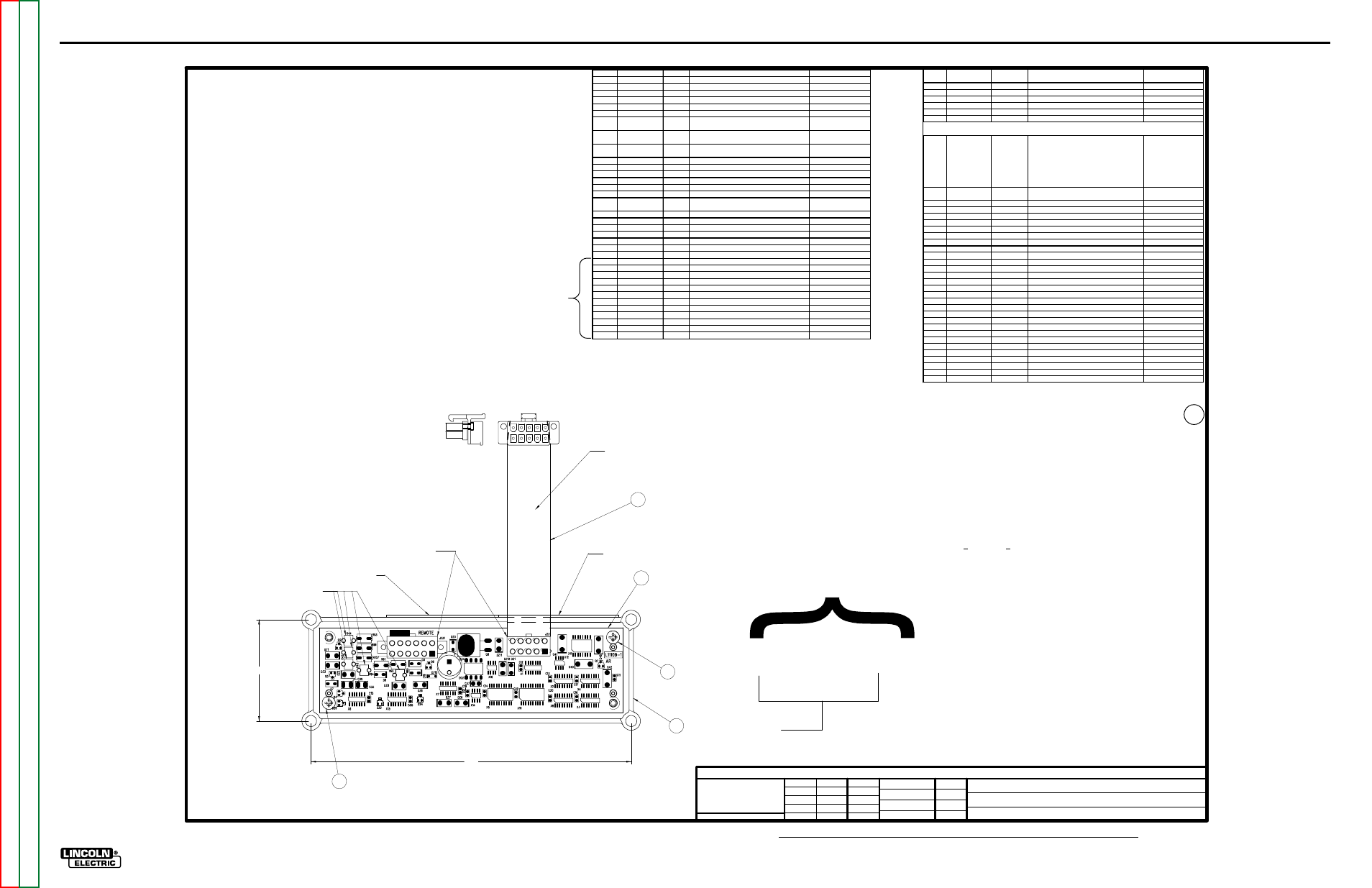

ELECTRICAL DIAGRAMS

G-20

V350-PRO

PC BOARD ASSEMBLY-REMOTE

-168

MANUFACTURING TOLERANCE PER E2056

UNLESS OTHERWISE SPECIFIED TOLERANCE

SCALE:

DO NOT SCALE THIS DRAWING

ON 3 PLACE DECIMALS IS

.002

THIS SHEET CONTAINS PROPRIETARY INFORMATION OWNED BY THE LINCOLN ELECTRIC COMPANY AND IS NOT TO BE REPRODUCED, DISCLOSED OR USED WITHOUT THE EXPRESS WRITTEN PERMISSION OF THE LINCOLN ELECTRIC COMPANY, CLEVELAND, OHIO U.S.A.

DESIGN INFORMATION

DRAWN BY:

WITH PUBLISHED STANDARDS.

DATE:

ON 2 PLACE DECIMALS IS

.02

MATERIAL TOLERANCE (" ") TO AGREE

ON ALL ANGLES IS

.5 OF A DEGREE

SUBJECT:

Chg. Sheet No.

ENGINEER:

EQUIPMENT TYPE:

DRAWING No.:

M.D.

INVERTER WELDERS

SPI REMOTE P.C. BOARD ASSEMBLY

FULL

3-3-99

REFERENCE:

SUPERSEDING:

G3443-1B2

APPROVED:

"X" INFO.

XM5626

XC-UF

11109-1

6-2-2000A

CAPACITORS = MFD/VOLTS
INDUCTANCE = HENRIES
RESISTANCE = OHMS

BUY AS:

L11109-1A1

{

IDENTIFICATION CODE

SHIELD SIDE

2.09

6.59

PART NO.

BUY PER E3867

TEST PER E3856-RM

S25001-7500SMT

RESISTOR,SMD,750OHMS,1/4W,1206,1%,TR

R135

S25000-2213SMT

RESISTOR,SMD,METAL FILM,1/10W,221K,1%

R138

S25000-1001SMT

RESISTOR,SMD,METAL FILM,1/10W,1.00K,1

R139

S25000-3570SMT

RESISTOR,SMD,METAL FILM,1/10W,357OHMS

R140

S25000-4752SMT

RESISTOR,SMD,METAL FILM,1/10W,47.5K,1

R141

S25003-15R0SMT

RESISTOR,SMD,1W,15.0OHMS,1%

R142,R143,R144

S25010-2SMT

RESISTOR,SMD,MF,121K,1/4W,1%,SURGE

R15,R16

S25010-3SMT

RESISTOR,SMD,MF,1W,20.0K,1%,SURGE

R17,R18,R76,R80,R119,

R120

S25000-4751SMT

RESISTOR,SMD,METAL FILM,1/10W,4.75K,1

R2,R3,R4,R5,R6,R7,R28,

R29, R39,R40,R116

S25000-1002SMT

RESISTOR,SMD,METAL FILM,1/10W,10.0K,1

R26,R27,R32,R33,R34,

R35,R36,R37,R38,R145

S25000-2670SMT

RESISTOR,SMD,METAL FILM,1/10W,267OHMS

R41

S18380-14

THERMISTOR,PTC,500OHMS,28mA

R42,R43,R44,R64,R65

S25001-3320SMT

RESISTOR,SMD,332OHMS,1/4W,1206,1%,TR

R46,R47

S25001-2210SMT

RESISTOR,SMD,221OHMS,1/4W,1206,1%,TR

R48,R49

S25001-1000SMT

RESISTOR,SMD,100OHMS,1/4W,1206,1%,TR

R51,R52

S25000-3321SMT

RESISTOR,SMD,METAL FILM,1/10W,3.32K,1

R55,R56,R57,R126,R127

S25000-6811SMT

RESISTOR,SMD,METAL FILM,1/10W,6.81K,1

R62,R63,R128,R129,

R130,R131

S25000-6813SMT

RESISTOR,SMD,METAL FILM,1/10W,681K,1%

R66,R67

S25000-9092SMT

RESISTOR,SMD,METAL FILM,1/10W,90.9K,1

R68,R69

S25000-2801SMT

RESISTOR,SMD,METAL FILM,1/10W,2.80K,1

R70,R71

S25000-1212SMT

RESISTOR,SMD,METAL FILM,1/10W,12.1K,1

R8,R9,R10,R11,R12,R13

S25000-2002SMT

RESISTOR,SMD,METAL FILM,1/10W,20.0K,1

R82,R85

S25001-6810SMT

RESISTOR,SMD,681OHMS,1/4W,1206,1%,TR

R86

S25004-2430SMT

RESISTOR,SMD,1W,243OHMS,1%

R91,R92,R93,R99,R107

S17900-8SMT

IC,SMD,CMOS,INVERTER,SCHMITT,HEX,HC14

S20496-1SMT

IC,SMD,CMOS,DRIVER,DISPLAY,LED,CC,MCU

X10

S25068-5SMT

IC,SMD,VOLTAGE CONVERTER,SWITCHED-CAP

X11

S15128-10SMT

IC,SMD,VOLTAGE REF,ADJ, PECISION,431I

X12

S15018-22SMT

IC,SMD,ARRAY,CLAMPING,HEX,SOIC-8

X14

S15018-11SMT

IC,SMD,CMOS,SWITCH,ANALOG,QUAD,201(SS

X15

M15458-4SMT

IC,PWM-CONTROLLER,I-MODE,2842A, SOIC-

X16

S17900-26SMT

IC,CMOS,SMD,MUX,DAT,8-INPUT,HC151(SS)

S17900-10SMT

IC,SMDCMOS,REGISTER,SHFT,S-PI/SO,8-BI

X3,X4

70M1510

5-7SMT

IC,SMD,CMOS,CONVERTER,A/D,MPU, 10-BIT

S15128-18SMT

IC,OP-AMP,SMT,QUAD,HIGH-PERF,33074D

X6,X7

S17900-28SMT

IC,SMD,CMOS,HEX INVERTING BUFFER,3-ST

NOTES:

N.A. ALL CONNECTORS MUST BE GREASED WITH ITEM 6 PRIOR

TO ENCAPSULATION.

N.B.

CAUTION:

THIS DEVICE IS SUBJECT TO DAMAGE BY STATIC

ELECTRICITY. SEE E2454 BEFORE HANDLING.

N.C. ATTACH ITEM 1 TO ITEM 2 WITH ITEM 3. TIGHTEN ITEM 3 TO

.60 + .05Nm (5.3 + .5 IN-LBS).

N.D. ENCAPSULATION PER E1911-E TO A MINIMUM DEPTH SO ALL

OF THE COMPONENTS LEADS ARE COVERED.

N.E. PLACE BARCODED ASSEMBLY NUMBER IDENTIFICATION AND BARCODED

SERIAL NUMBER IDENTIFICATION IN AREA SHOWN

N.F. DO NOT INSERT THESE COMPONENTS.

N.G. THESE COMPONENTS MUST BE COMPLETELY COVERED WITH ITEM 5.

ITEM

PART NO.

REQ'D

DESCRIPTION

REFERENCE

DESIGNATOR

G3709-A

P.C. BOARD BLANK

M19436-4

POTTING TRAY

S8025-80

SELF TAPPING SCREW

L11166-1

FLEX CIRCUIT ASSEMBLY

E2527

66.7g ( 2.19 oz )

EPOXY ENCAPSULATION RESIN

E3539

.57g (.02 oz ) ELECTRICAL INSULATING COMPOUND

FOR ITEMS LISTED BELOW REFER TO ELECTRONIC COMPONENTS DATABASE FOR COMPONENT

SPECIFICATIONS

S25020-3SMT

CAPACITOR,SMD,CERAMIC,0.1MF,50V,10%,X

C2,C3,C4,C5,C6,C8,C9,

C10,C11,C12,C13,C14,
C15,C16,C17,C18,C19,

C20,C21,C22,C47,C48,

C49,C50,C51,C52,C53,

C54,C55,C56,C57,C58,

C59,C60,C61,C62,C65,
C66,

S25020-12SMT

0CAPACITOR,SMD,CERAMIC,100pF,100V,5%,C

C23,C24,C25,C26,C27,

C29

S25020-5SMT

CAPACITOR,SMD,CERAMIC,2700pF,50V,5%,X

C30,C32

10S13490

-184

CAPACITOR,ALEL,330,100V,20%

C34

S25020-7SMT

CAPACITOR,SMD,CERAMIC,0.22MF,50V,20%,

C35,C36

S25024-2SMT

CAPACITOR,SMD,TANTALUM,1.0MF,35V,10%,

C37

S25024-5SMT

CAPACITOR,SMD,TANTALUM,4.7MF,35V,10%,

C40

S25024-9SMT

CAPACITOR,SMD,TANTALUM,100MF,20V,20%,

C41

S25024-7SMT

CAPACITOR,SMD,TANTALUM,47MF,20V,10%,S

C42,C46

S25020-6SMT

CAPACITOR,SMD,CERAMIC,4700pF,50V,5%,

C63

S25020-2SMT

CAPACITOR,SMD,CERAMIC,0.022MF,50V,10%

C64

S25040-1SMT

DIODE,SMD,1A,400V,FAST RECOVERY,DO-21

D20

S25049-2SMT

DIODE,SMD,1A,30V,SMA,SCHOTTKY

D21

S25040-5SMT

DIODE,SMD,DUAL,0.200A,70V,UFR

D24,D25,D26

S25040-2SMT

DIODE,SMD,1A,400V,DO-214BA/AC

D3,D6,D7,D19

S25044-1SMT

ZENER DIODE,SMD,3W,5.1V,5%, SMB

DZ1,DZ2,DZ3

S25046-4SMT

ZENER DIODE,SMD,0.5W,12V,5%,SOD-123

DZ10

S25044-4SMT

ZENER DIODE,SMD,3W,15V,5%, SMB

DZ11

S25044-6SMT

ZENER DIODE,SMD,3W,27V,5%, SMB

DZ12

S25044-3SMT

ZENER DIODE,SMD,3W,12V,5%, SMB

DZ6,DZ7,DZ8,DZ9

S18248-10

CONNECTOR,MOLEX,MINI,PCB,10-PIN

J33

S24020-12

CONNECTOR,MOLEX,MINI,PCB,12-PIN,TIN

J331

S15000-25SMT

OPTOCOUPLER,SSR,FORM:1A+1B,0.17A,8-PI

OCI1

S25050-1SMT

TRANSISTOR,SMD,NPN,0.5A,40V,SOT-23,MM

Q2,Q3,Q4,Q7

S25050-2SMT

TRANSISTOR,SMS,PNP,SOT23,0.5A, 40V,MM

S25051-2SMT

TRANSISTOR,SMD,NMF,D2PAK,18A,200V,IRF

S25000-2431SMT

RESISTOR,SMD,METAL FILM,1/10W,2.43K,1

S25000-2211SMT

RESISTOR,SMD,METAL FILM,1/10W,2.21K,1

R113,R121

S25000-3322SMT

RESISTOR,SMD,METAL FILM,1/10W,33.2K,1

R115

S25003-2211SMT

RESISTOR,SMD,1W,2.21K,1%

R132,R133,R134

N.F.

N.A.

N.B.

3 N.C.

N.C.

N.E.

N.G.
