Electrical diagrams, Schematic - power supply printed circuit board, V350-pro – Lincoln Electric INVERTEC V350-PRO SVM152-A User Manual

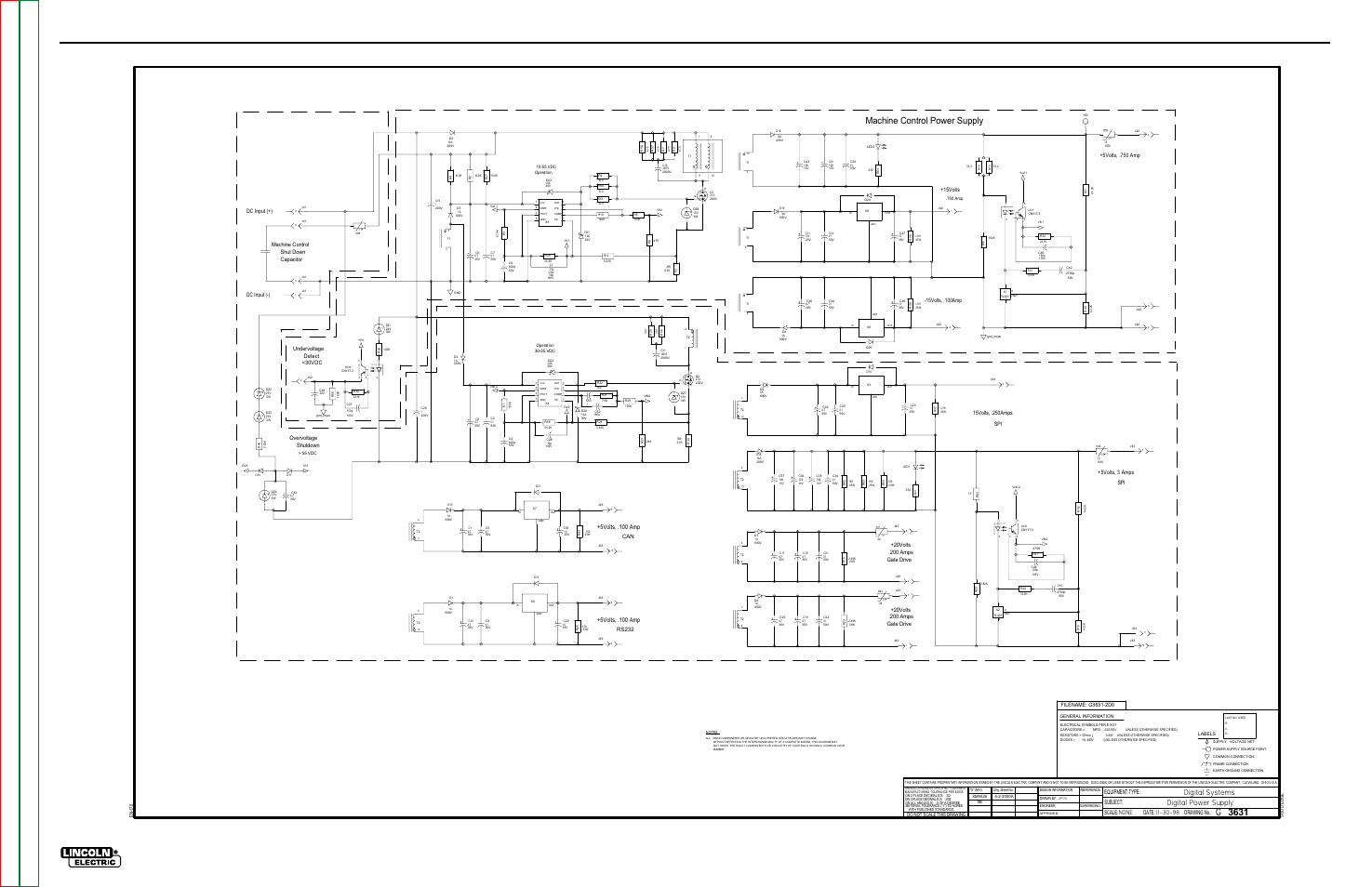

Page 141: Machine control power supply, Digital systems digital power supply, 5volts, .100 amp, Scale, Date, Subject, Equipment type: drawing no
