Operations in Detail Lexicon, Inc.
In 5-Channel configurations, all available machines are
configured for surround or other multi-channel uses.
For one configuration (Fig. 4-7), one machine is
configured as 5-in/5-out, the other as 2-in/5-out, both sharing the same output channels. On the display, the
output paths of the two machines are colored differently
for easier visualization.
Control Mode: Clocks, Configuration, and System Screens,
continued
4-6

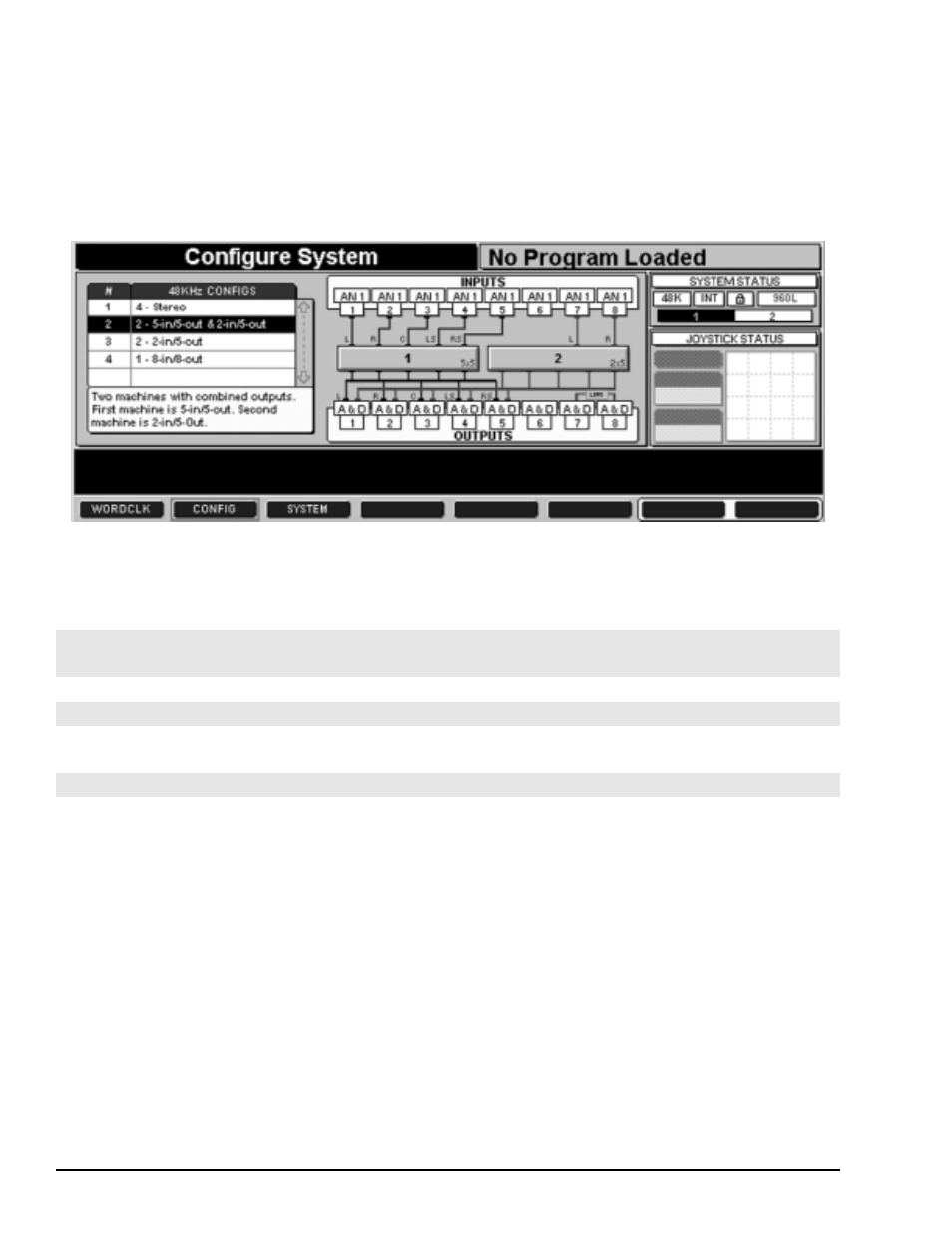

Figure 4-7 — 5-in/5-out and 2-in/5-out configuration for 44.1/48 kHz; two machines available
44.1/48kHz Dual machines (5-in and 2-in):
Input Assignment 1 Left 1 Right 1 Center 1 Left 1 Right Unused 2 Left 2 Right
Surround Surround
Analog Input Channel 1 2 3 4 5 6 7 8
AES Input Channel 1 (L) 2 (R) 3 (L) 4 (R) 5 (L) 6 (R) 7 (L) 8 (R)
Output Assignment Left Right Center Left Right Unused Lt* Rt*
Surround Surround
Analog Output Channel 1 2 3 4 5 6 7 8
AES Output Channel 1 (L) 2 (R) 3 (L) 4 (R) 5 (L) 6 (R) 7 (L) 8 (R)
* Lt/Rt denotes a matrix-encoded version of the 5-channel surround effects. This is implemented as a LexiconLogic encode
and is compatible with most matrix encoding.
