Linksys CISCO SYSTEMS WRT330N - Manual (Page 13)

7 Chapter 3: Getting to Know the Wireless-N Gigabit Gaming Router
The Front Panel
Wireless-N Gigabit Gaming Router
The Front Panel
The Router’s LEDs are located on the front panel.
POWER Green. The POWER LED lights up and will stay on while the Router is powered on.
ETHERNET 1, 2, 3, 4 Green/Orange. The numbered LEDs, correspond with the numbered ports on the Router’s
back panel and light up when the Router is connected to a device through the
corresponding port. If the LED is flashing, the Router is sending or receiving data over that
port. The light will be orange when there is a 1000 Mbps gigabit connection.
INTERNET Green. The INTERNET LED lights up when there is a connection through the Internet port.
WIRELESS Green. The WIRELESS LED lights up when there is a wireless connection. If the LED is
flashing, the Router is sending or receiving data over the wireless network.
SECURITY Green. The SECURITY LED is green when PSK/PSK2 is enabled.
Orange. The SECURITY LED is orange when WEP is enabled or no security is enabled.
Off. The SECURITY LED is off when the security button on the top of the unit is disabled.
The Top Panel
The Router has a button reserved for a future function.

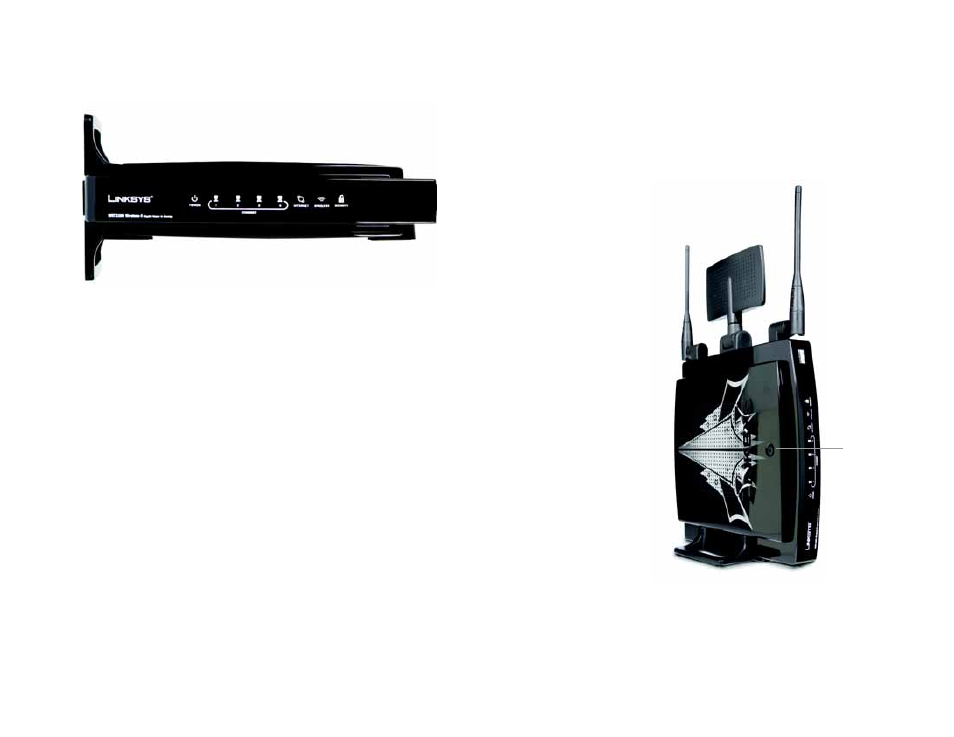

Figure 3-2: The Router’s Front Panel
Figure 3-3: The Router’s Top Panel
Button
