SGE2010/SGE2010P Administration Guide 45
Port Status
Using the Console

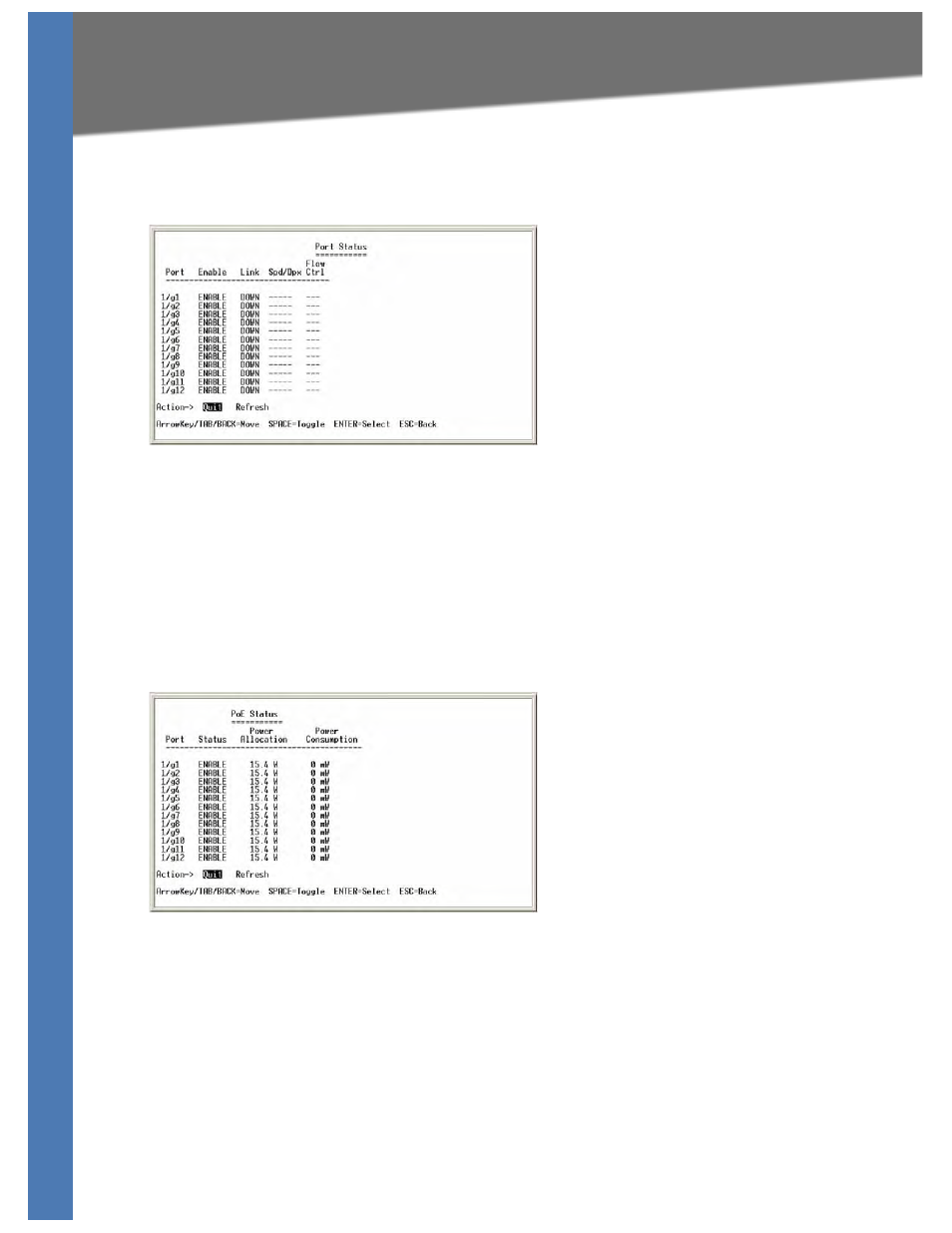

Port Status
You can use the Port Status screen to view the port connection status. You can use the up or
down arrow keys to scroll through all the ports on the switch.
NOTE: To configure ports, use the Port Configuration screen. See ”Port Settings,” on page 46 .
To open this screen:
1. From the Switch Main Menu, press 2. Port Status.
2. From the Port Status Menu, press 1. Port Status.
PoE Status
You can use the PoE Status screen to view the PoE status of the ports.
NOTE: To configure PoE, use the PoE Configuration screen. See ”PoE Settings,” on page 47 .
To open this screen:
1. From the Switch Main Menu, press 2. Port Status.
2. From the Port Status Menu, press 2. Poe Status.
