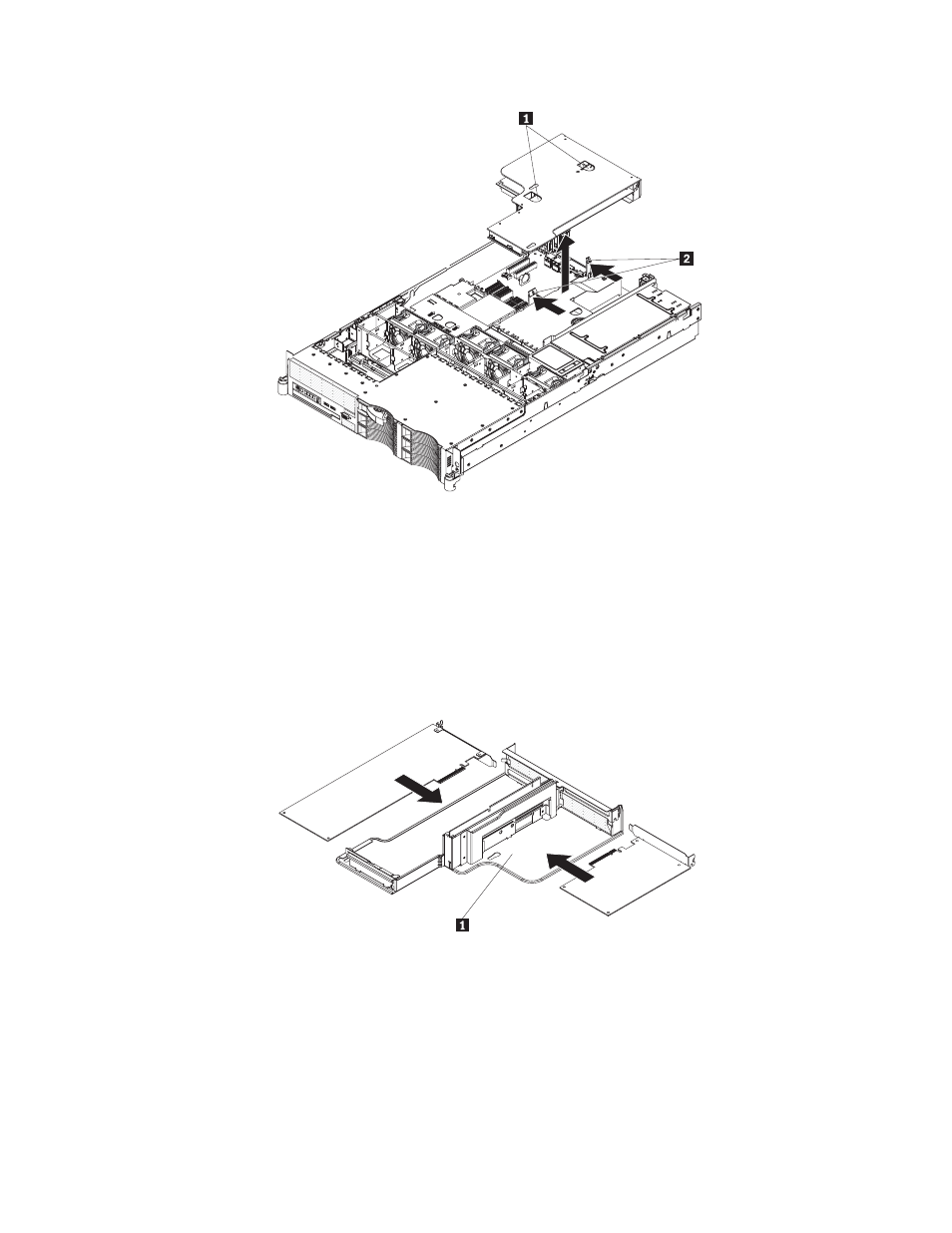

1
Access
holes
2
Release
tabs
4.
Slide
the
expansion-slot
cover
out
of
the
PCI
low-profile
expansion
slot
or
PCI
riser-card
assembly
expansion
slot.
5.
Install
the
adapter.
The
following
illustration
shows
how
to
install
an
adapter
in
a
PCI
slot
on
the
riser-card
assembly.
Note:
For
clarity,
the
PCI
riser-card
assembly
1
is
shown
inverted
in
the
following
illustration.
6.
If
you
removed
the
PCI
riser-card
assembly
to
install
the
adapter,
align
the
riser-card
assembly
with
the
release-tab
posts,
rear
guides,
and
connector;
then,
press
the
PCI
riser-card
assembly
firmly
into
the
connector.
