Installing
an
adapter
1
Expansion
slot
cover
5
Low-profile
PCI
Express
adapter
2
Raiser-card
assembly
6
Expansion
slot
cover
3
Expansion
slot
1
7
Expansion
slot
2
4
Adapter
8
Adapter

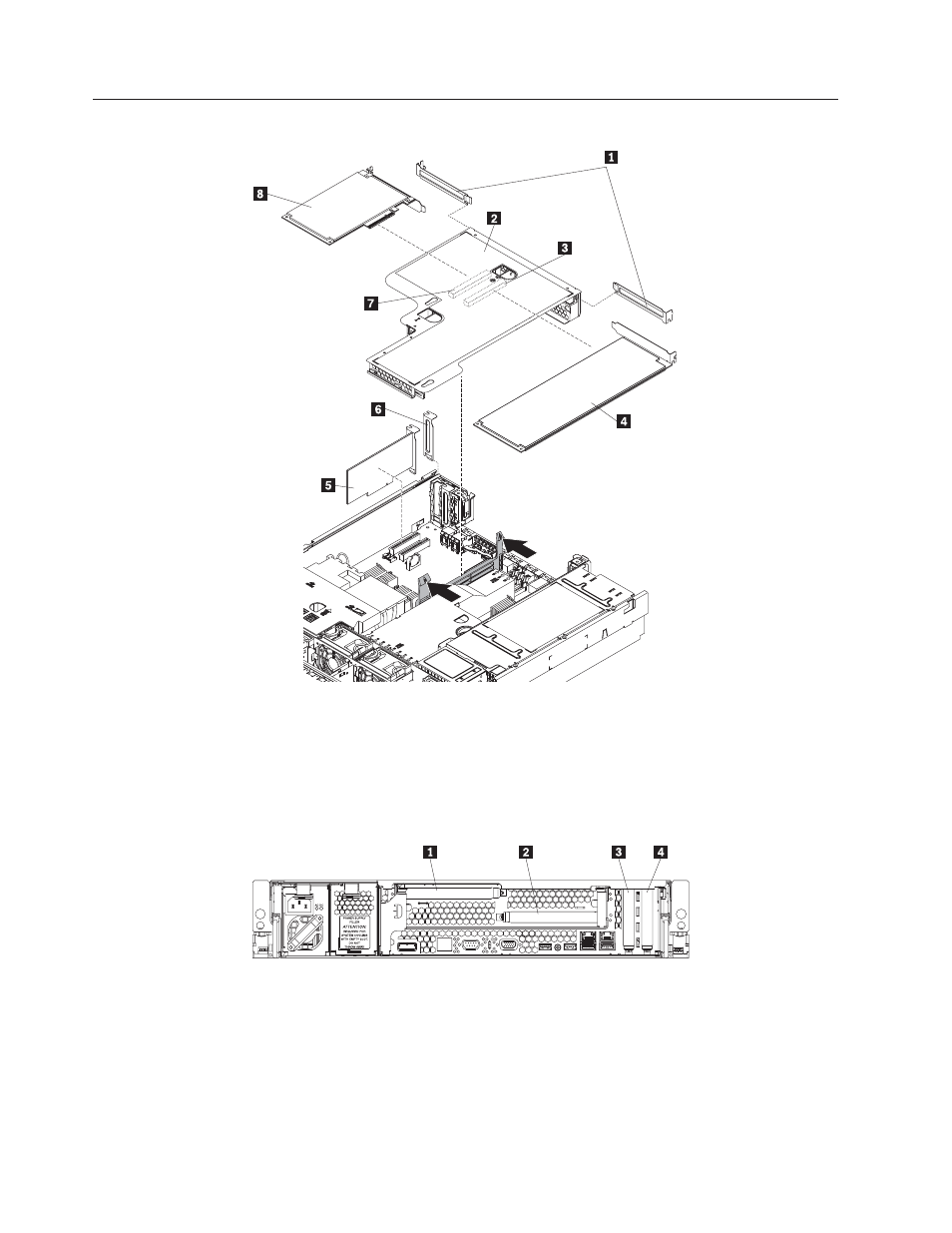

The
following
illustration
shows
the
locations
of
the
adapter
expansion
slots.
1
PCI
slot
1
3
PCI
slot
3
2
PCI
slot
2
4
PCI
slot
4
The
following
notes
describe
the
types
of
adapters
that
the
server
supports
and
other
information
that
you
must
consider
when
installing
an
adapter:
v
You
can
install
only
low-profile
PCI
Express
adapters
in
PCI
slots
3
and
4
on
the
system
board.
24
ThinkServer
RD120
Types
6444,
6445,
6446,
and
6447:
Installation
Guide
