Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these devices,
see “Handling static-sensitive devices” on page 9.

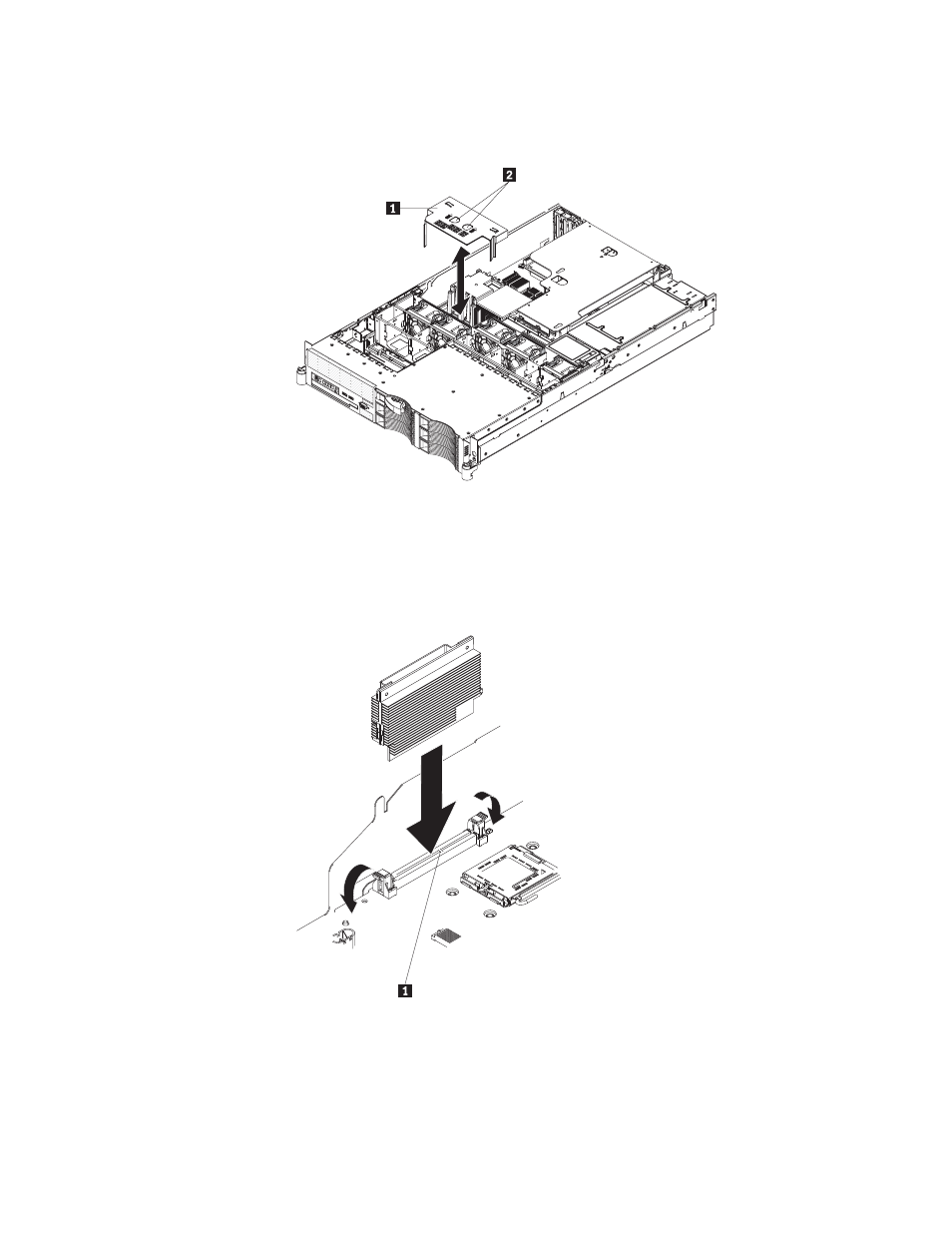

1 Microprocessor air baffle
2 Finger holes
4. Remove the microprocessor air baffle.
5. Touch the static-protective package containing the VRM to any unpainted metal
surface on the outside of the server. Then, remove the VRM from the package.
1 Alignment key
6. Turn the VRM so that the keys align correctly with the VRM connector; then,
firmly press the VRM straight down into the connector. Make sure that the
connector retaining clips are in the locked position.
7. Install the microprocessor:
Chapter 2. Installing optional devices 21
