Calculite ® HID Downlight
C7E170HW
Page 2 of 2 7" Aperture, ED17 (Open Rated), Ceramic Metal Halide, Wide Beam
Lightolier a Genlyte Thomas Company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2004 Genlyte Thomas Group LLC (Lightolier Division) • A0504
Job Information Type:
1,500
750
2,250
3,000
2,500
1,250
3,750
5,000
30°
60°
30°
60°

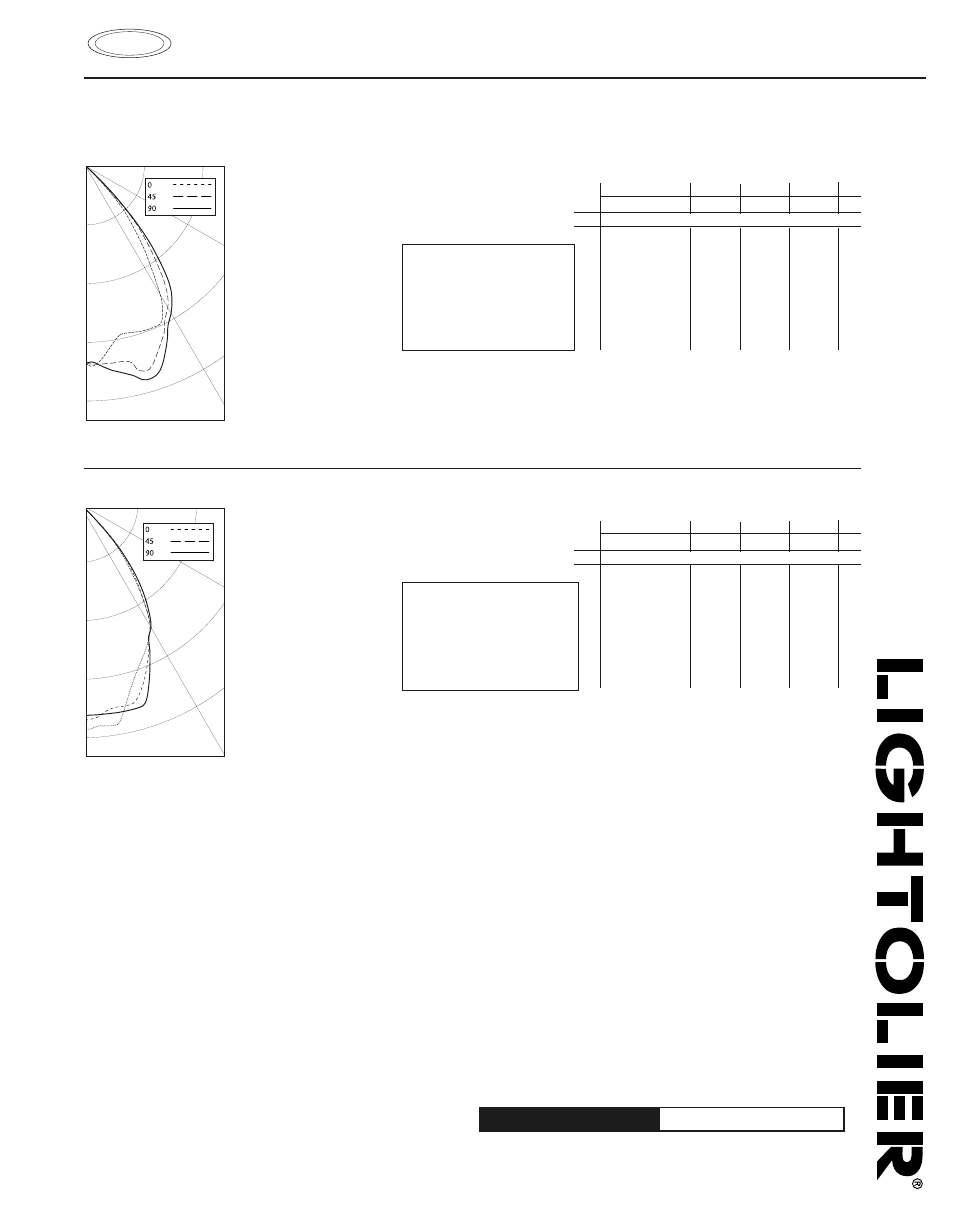

70W ED17 (ENCLOSED) PHILIPS COATED METAL HALIDE LAMP. LUMEN RATING = 5700 LMS., AROMAT ELECTRONIC BALLAST, CL FINISH REFLECTOR TRIM
ANGLE 0° 45° 90°
0 2517 2517 2517
5 2462 2535 2572
10 2242 2537 2678
15 2201 2705 2823
20 2230 2610 2778
25 2233 2365 2464
30 1916 2096 2180
35 1322 1698 1886
40 823 1127 1271
45 234 349 480
50 20 20 51
55 5 8 8
60 2 3 3
65 0 1 1
70 0 1 0
75 0 0 0
80 0 0 0
85 0 0 0
90 0 0 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 2050 35.98 59.89
0-40 3062 53.73 89.44
0-60 3423 60.05 99.96
0-90 3424 60.08 100
40-90 361 6.34 10.56
60-90 1 0.02 0.04
90-180 0 0 0
0-180 3424 60.08 100
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE 0 Deg. 45 Deg. 90 Deg.
45 11611 17393 23922
55 306 466 466
65 0 71 57
75 0 23 0
85 0 0 0
** EFFICIENCY = 60.1% ** CERTIFIED TEST REPORT NO. 2418FR, DATE: FEB 10, 2004
SC = 1.1 COMPUTED BY LSI PROGRAM **TEST-LITE**
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .72 .72 .72 .72 .70 .70 .67 .67 .64 .64 .60
1 .68 .67 .66 .64 .66 .63 .63 .61 .61 .59 .57
2 .65 .63 .61 .59 .62 .58 .60 .57 .58 .56 .54
3 .62 .59 .56 .54 .58 .54 .57 .53 .55 .52 .50
4 .60 .56 .52 .50 .55 .50 .54 .49 .52 .49 .47
5 .57 .52 .49 .46 .51 .46 .50 .46 .49 .45 .44
6 .54 .49 .46 .43 .48 .43 .48 .43 .47 .42 .41
7 .51 .46 .42 .40 .45 .40 .45 .40 .44 .39 .38
8 .48 .43 .39 .37 .42 .37 .42 .37 .41 .36 .36
9 .46 .40 .36 .34 .40 .34 .39 .34 .39 .34 .33
10 .43 .37 .34 .31 .37 .31 .36 .31 .36 .31 .30
LUMINAIRE INPUT WATTS = 78.0
Coefficients of Utilization
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
100W ED17 (ENCLOSED) PHILIPS COATED METAL HALIDE LAMP. LUMEN RATING = 8500 LMS., AROMAT, ELECTRONIC BALLAST, CL FINISH REFLECTOR TRIM
ANGLE 0° 45° 90°
0 4622 4622 4622
5 4767 4575 4529
10 4783 4421 4539
15 4151 4423 4544
20 3703 4033 4286
25 3387 3501 3570
30 3033 3024 3064
35 2201 2273 2443
40 1410 1566 1617
45 501 615 580
50 63 56 62
55 19 19 18
60 10 12 9
65 5 7 5
70 3 3 2
75 1 1 0
80 0 0 0
85 0 0 0
90 0 0 0
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 3282 38.62 62.14
0-40 4720 55.54 89.35
0-60 5275 62.07 99.86
0-90 5283 62.15 100
40-90 562 6.62 10.65
60-90 7 0.08 0.14
90-180 0 0 0
0-180 5283 62.15 100
LUMINANCE SUMMARY - CD. / SQ. M.
ANGLE 0 Deg. 45 Deg. 90 Deg.
45 24858 30607 28891
55 1140 1179 1075
65 422 611 376
75 153 153 0
85 0 0 0
** EFFICIENCY = 62.2% ** CERTIFIED TEST REPORT NO. 2267FR , DATE: JUN 23, 2003
SC = 1.1 COMPUTED BY LSI PROGRAM **TEST-LITE**
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .74 .74 .74 .74 .72 .72 .69 .69 .66 .66 .62
1 .71 .69 .68 .67 .68 .66 .65 .64 .63 .62 .59
2 .68 .65 .63 .61 .64 .60 .62 .59 .60 .58 .56
3 .65 .61 .58 .56 .60 .56 .59 .55 .57 .54 .52
4 .62 .58 .55 .52 .57 .52 .56 .51 .55 .51 .49
5 .59 .54 .51 .48 .54 .48 .53 .48 .52 .47 .46
6 .56 .51 .48 .45 .51 .45 .50 .45 .49 .45 .43
7 .53 .48 .45 .42 .48 .42 .47 .42 .46 .41 .40
8 .51 .45 .42 .39 .45 .39 .44 .39 .43 .39 .38
9 .48 .42 .39 .36 .42 .36 .41 .36 .41 .36 .35
10 .45 .40 .36 .34 .39 .34 .39 .33 .38 .33 .32
LUMINAIRE INPUT WATTS = 110
Coefficients of Utilization
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
