Lightolier SL205A User Manual
Sl205a, Decorative, spectral, floating paper, optic forms
Job Information
Type:
Job Name:
Cat. No.:
Notes:
SL205A
Decorative, Spectral, Floating Paper, Optic Forms
Page 1 of 3

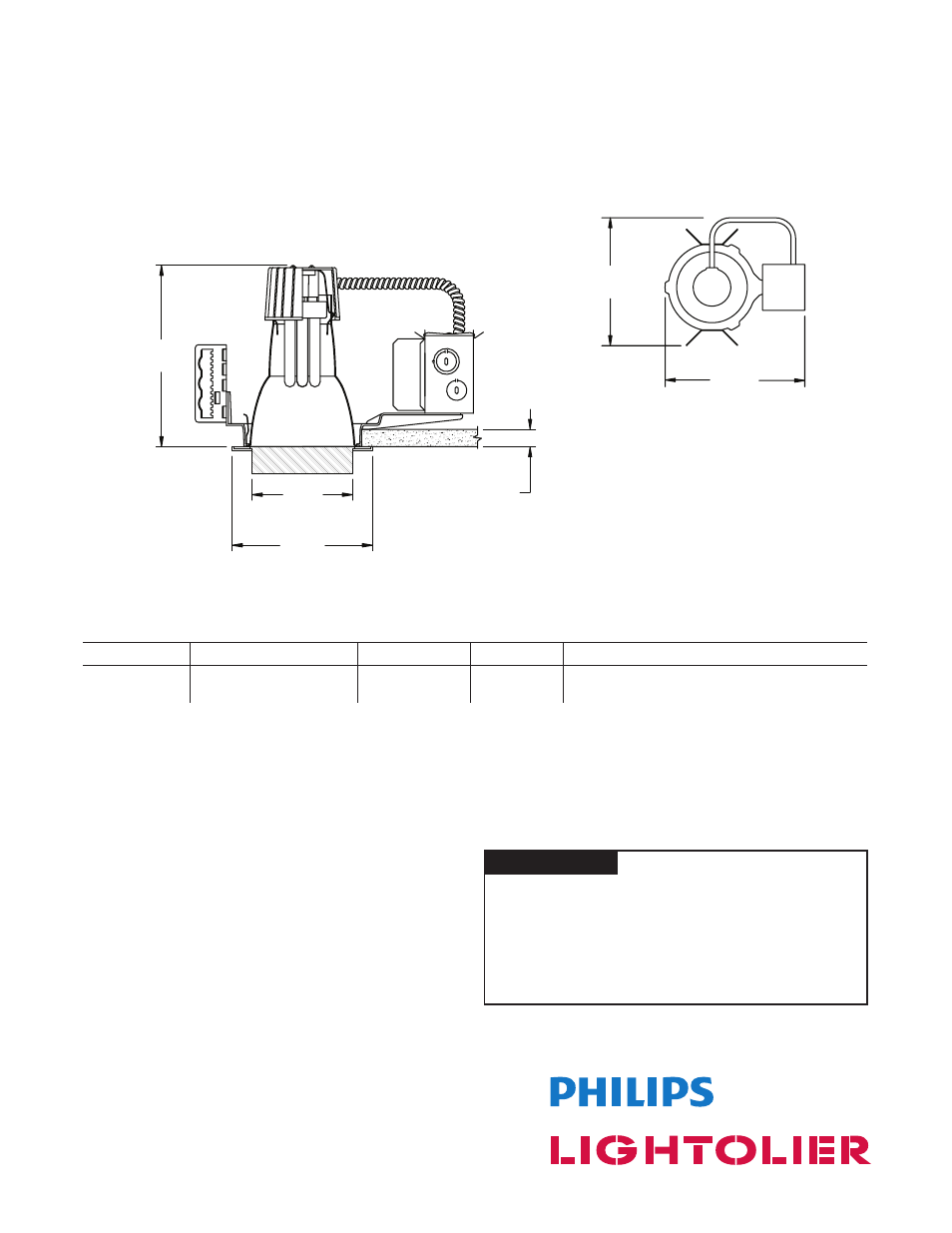

Ceiling Cutout: 5
1
⁄
16
" (128mm)
Ordering Guide (2 Part System: Trim and Frame-In-Kit)
Trim
Frame-In-Kit
Lamp
Volt
Finish
SL205AT
4118VU
1-18W TTT
120/277V
Clear acrylic with white lacquer lens
and stainless steel trim ring.
4118V-347
1-18W TTT
347V
*Use 4100K lamp for optimal white lens rendering
1
⅛
" MAX.
(29mm)
8
⅝
"
(219mm)
4
⅝
"
(117mm)
6
⅜
"
(162mm)
4 5/8"
(117mm)
8 5/8"
(219mm)
6 3/8"
(162mm)
10
½
"
(267mm)
11
½
"
(292mm)
