Monitoring System
Rack Monitoring System
Objects under
filterMainsTable
(1.3.6.1.4.1.1909.10.7.7)
Objects under

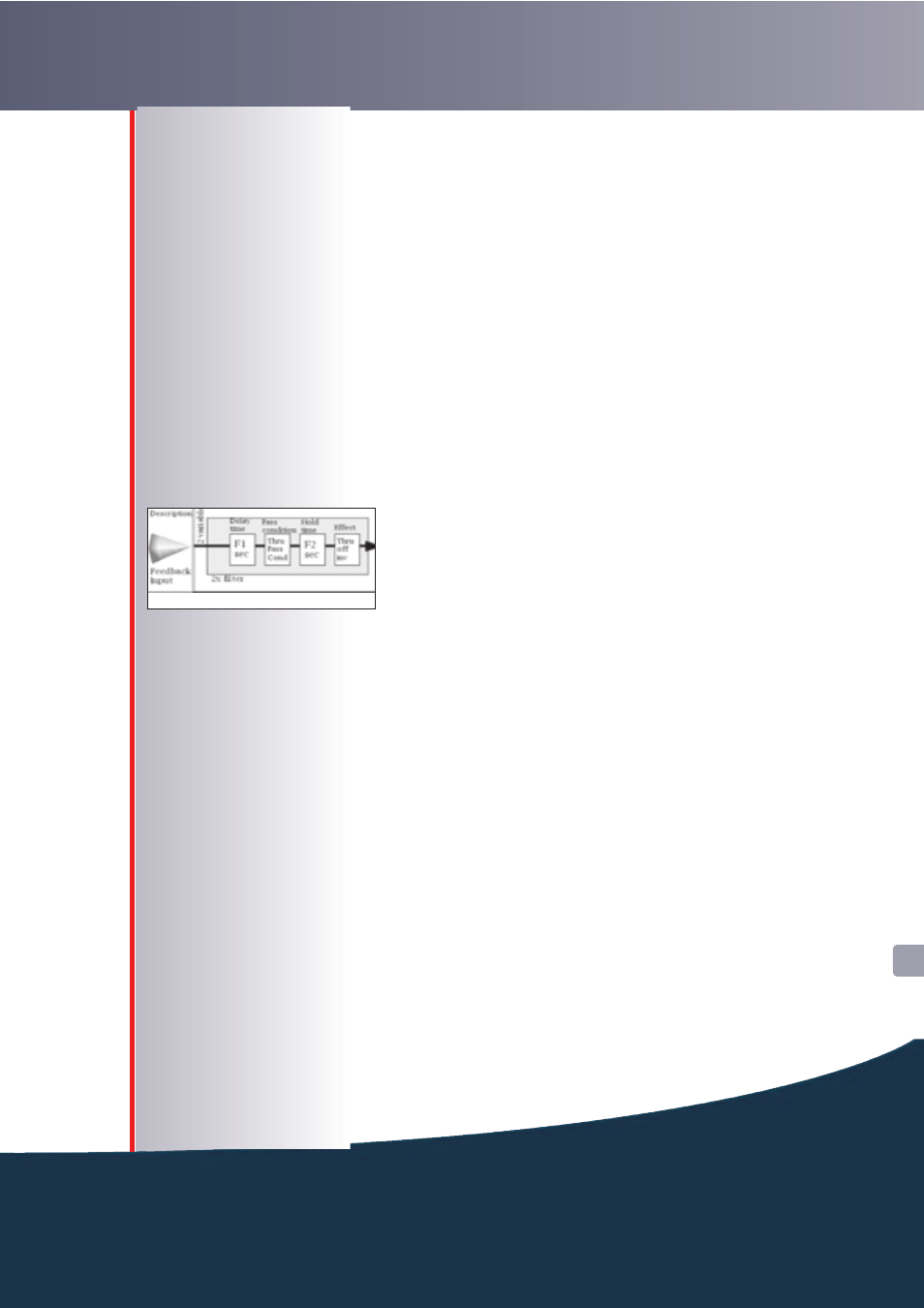

filterFeedbackTable
(1.3.6.1.4.1.1909.10.7.8)
For example:
Feedback input 1 of filter 8 is only
to operate if the event is still
applied:
1.3.6.1.4.1.1909.10.7.8.1.5.8.1 := 1
Objects under
messageTable
(1.3.6.1.4.1.1909.10.8.1)
For example:
Read out filter description from
message 5:
1.3.6.1.4.1.1909.10.8.1.1.3.5
Variable Type Value Access
1 filterMainsEntry
1 filterMainsIndex INT RO
2 filterMainsSensor INT RO
3 filterMainsEffect INT {off (1), thru (2), RW
invert (3) }
4 filterMainsAThres INT RW
5 filterMainsAMode INT {off (1), greater (2), RW
less (3) }
6 filterMainsBThres INT RW
7 filterMainsBMode INT {off (1), greater (2),RW
less (3) }
Variable Type Value Access
1 filterFeedbackEntry
1 filterFeedbackIndex INT RO
2 filterFeedbackInput INT RO
3 filterFeedbackInFilter INT RW
4 filterFeedbackDelay INT RW
5 filterFeedbackPassCond INT { thru (1), RW
conditional (2) }
6 filterFeedbackHold INT RW
7 filterFeedbackEffect INT { off (1), on (2), RW
invert (3) }
Variable Type Value Access
1 messageEntry
1 messageIndex INT RO
2 messageFilter INT RO
3 messageFilterDescr DS RO
4 messageTime TT RO
5 messagePriority INT {no-message (1), RO
warning (2),
critical (3) }
6 messageAcknowledged INT {not-acknow- RW
ledged (1),
acknowledged (2) }
