Monitoring System
Rack Monitoring System
Objects under mainsTable
(1.3.6.1.4.1.1909.10.6.1)

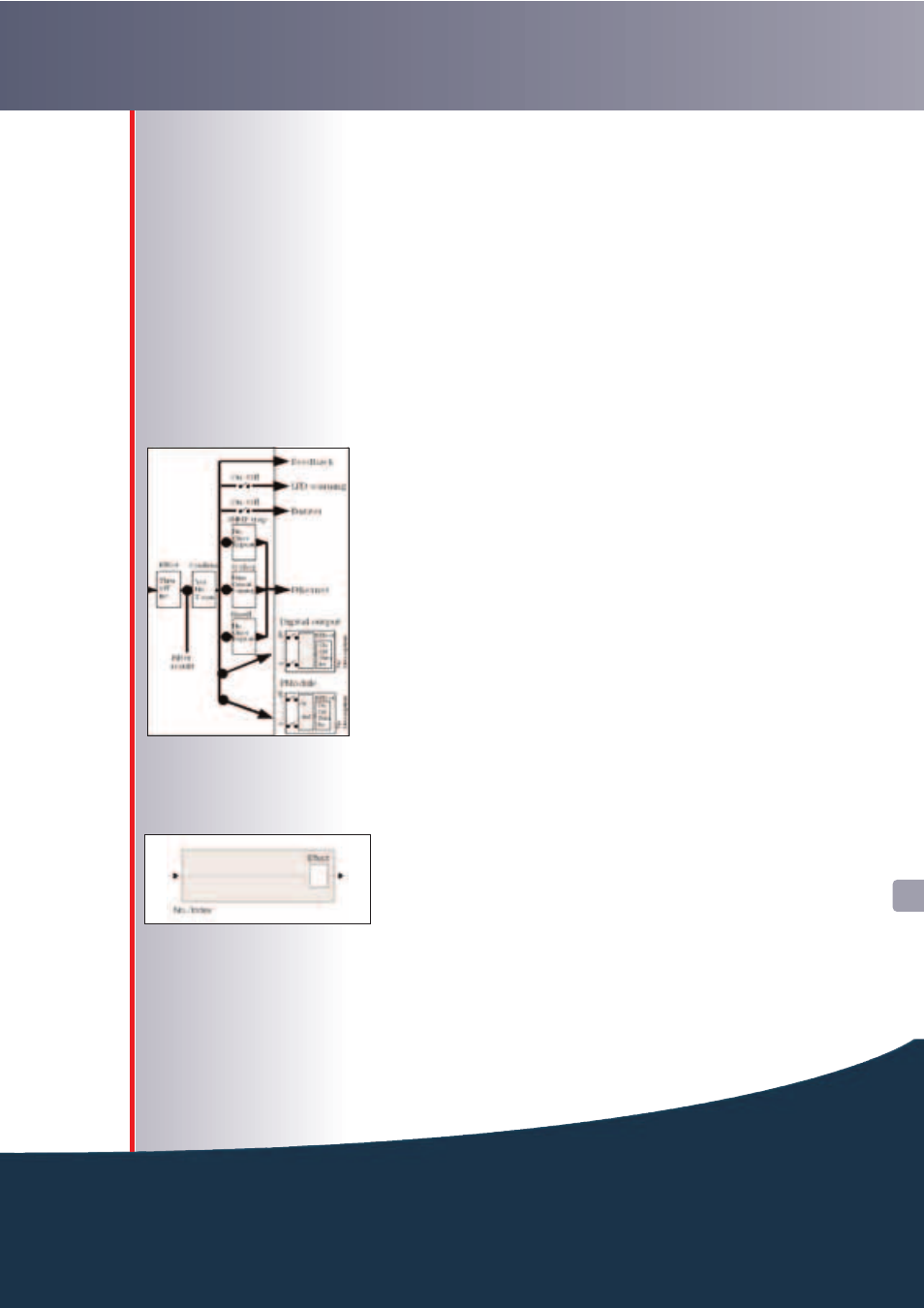

Objects under filterTable
(1.3.6.1.4.1.1909.10.7.1)
for example:
allow confirmation for filter 4
1.3.6.1.4.1.1909.10.7.1.1.9.4 := 1
Objects under
filterDigitalInTable
(1.3.6.1.4.1.1909.10.7.2)
for examle :
Make DIGTIAL INPUT 2 act on filter 6:
1.3.6.1.4.1.1909.10.7.2.1.3.6.2
Variable Type Value Access
1 mainsEntry
1 mainsIndex INT RO
2 mainsDescr DS RW
3 mainsValue INT RO
Variable Type Value Access
1 filterEntry
1 filterIndex INT RO
2 filterDescr DS RW
3 filterResult INT {false (1), true (2)} RO
4 filterEffect INT {off (1), thru (2), RW
invert (3)}
5 filterTrap INT {no (1), once (2), RW
repeat (3) }
6 filterLED INT {no (1), yes (2)} RW
7 filterBuzzer INT {no (1), yes (2)} RW
8 filterMessagePriority INT {no-message (1), RW
priority-warning (2),
priority-critical (3)}
9 filterConfirmation INT {disabled (1), RW
enabled (2) }
10 filterReactivationTime INT {no-timeout (1)} RW
11 filterConfirm INT {not-confirmed (1), RW
confirmed (2) }
Variable Type Value Access
1 filterDigitalInEntry
1 filterDigitalInIndex INT RO
2 filterDigitalInPort INT RO
3 filterDigitalInEffect INT {off (1), thru (2), RW
invert (3) }
