A
PPENDICES A
PPENDICES
Rack

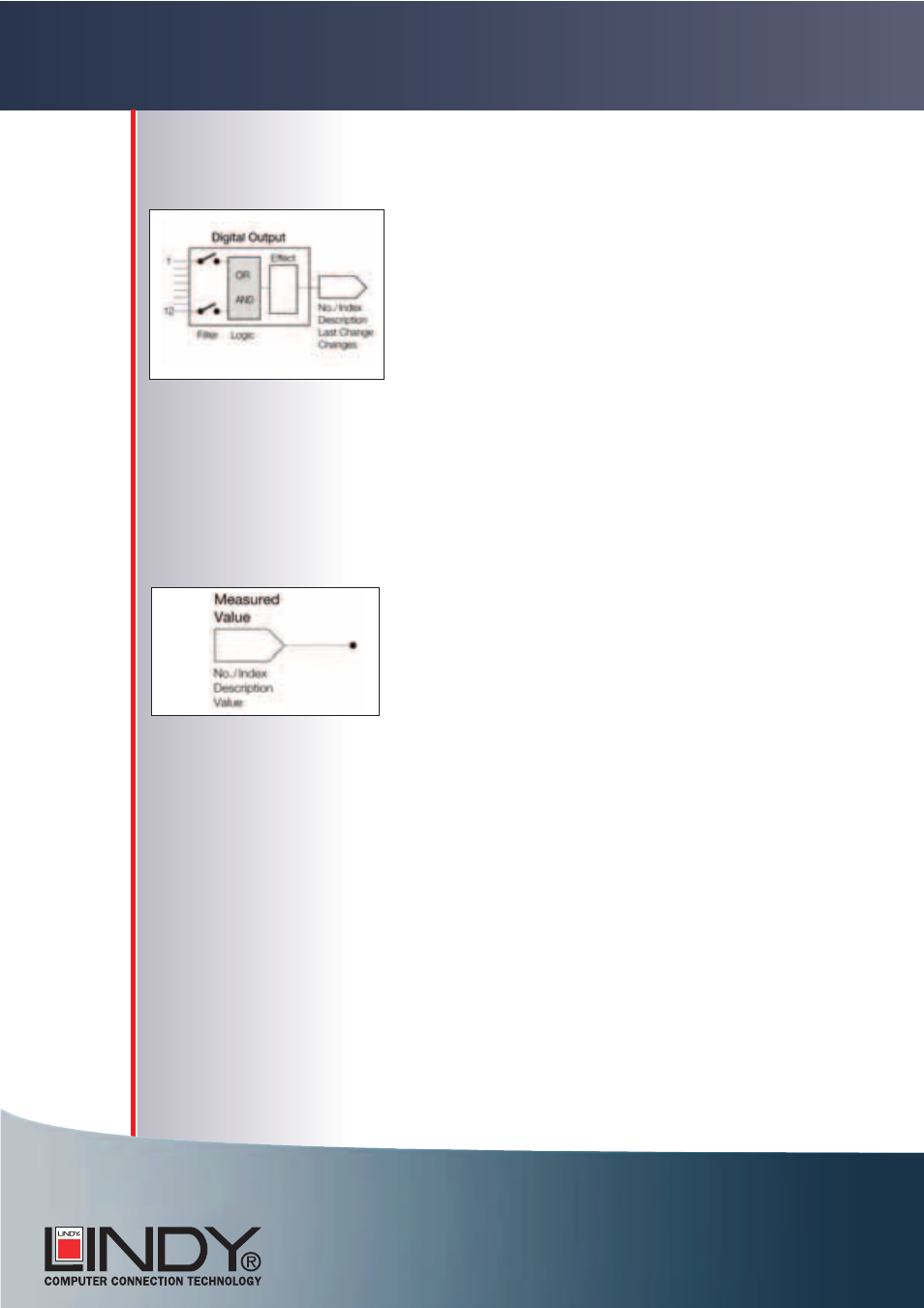

Objects under outputTable
(1.3.6.1.4.1.1909.10.3.1)
for example:
Read put description DIGITAL OUT 4:
1.3.6.1.4.1.1909.10.3.1.1.2.4
Objects under
outputLogicTable
(1.3.6.1.4.1.1909.10.3.2)
Objects under tempTable
(1.3.6.1.4.1.1909.10.4.1)
for example:
Read out current temperture of
temperature sensor 1:
1.3.6.1.4.1.1909.10.4.1.1.3.1
Objects under humidTable
(1.3.6.1.4.1.1909.10.5.1)
Variable Type Value Access
1 outputEntry
1 outputIndex INT RO
2 outputDescr DS RW
3 outputEffect INT {off (1), on (2), RW
thru (3), invert (4)}
4 outputLastChange TT RO
5 outputChanges CNT RO
6 outputLogic INT {and (1), or (2)} RW
7 outputState INT {open (1), short(2)} RO
Variable Type Value Access
1 outputLogicEntry
1 outputLogicOutputIndex INT RO
2 outputLogicFilterIndex INT RO
3 outputLogicFilter INT {off(1),on(2)} RW
Variable Type Value Access
1 tempEntry
1 tempIndex INT RO
2 tempDescr DS RW
3 tempValue INT {no-sensor (665)} RO
Variable Type Value Access
1 humidEntry
1 humidIndex INT RO
2 humidDescr DS RW
3 humidValue INT { no-sensor (255) } RO
