CONNECTING THE GUN CABLE TO
THE WIRE FEEDER
A variety of gun and cable assemblies are available for
the LN-9 models. See the
Accessories section of this
manual.
Lay the cable out straight. Insert the connector on the
welding conductor cable into the brass conductor block
on the front of the wire drive unit. See Figure A.9. Make
sure the connector is fully seated and tighten the lock-
ing screws with a 3/16" Allen wrench or handscrew (if
provided). Keep this connection clean and bright.
Connect the control cable polarized Amphenol plug into
the mating 5-cavity receptacle on the front panel of the
wire drive section.
INSTALLATION
A-13 A-13
LN-9 Wire Feeder Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Section TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC
Retur
n to Master TOC

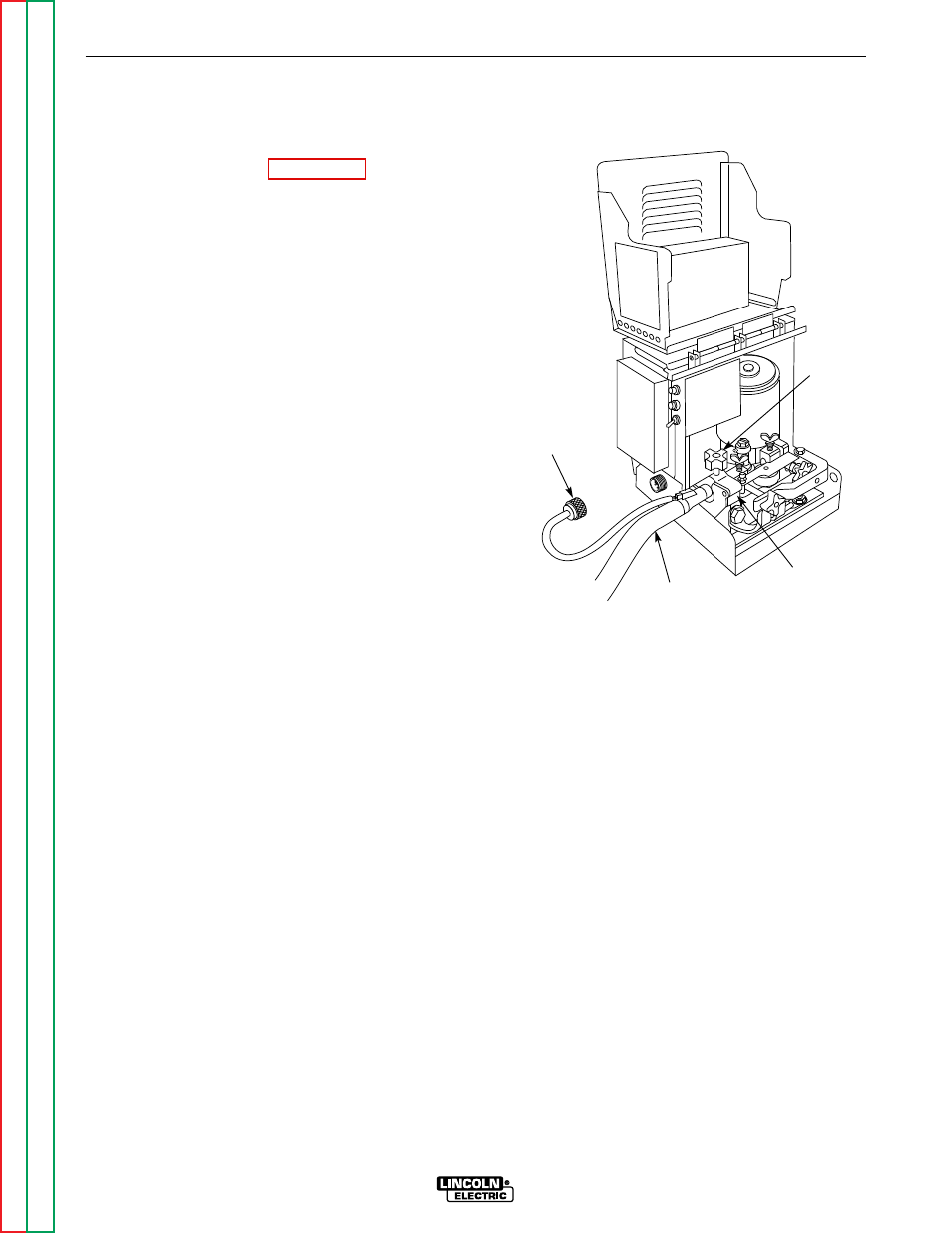

FIGURE A.9 – GUN CABLE CONNECTIONS
AMPHENOL
CONNECTOR
GUN CABLE
ASSEMBLY
CONDUCTOR
BLOCK
THUMB-
SCREW
