Calculite ® Evolution Open Reflector Downlight
C3MRD
Page 2 of 2 3" Aperture, MR16 (12V)
Spec. Sheet
C3MRD
"ICON"
Lightolier a Genlyte company www.lightolier.com
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • F0711
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
ANGLE MEAN CP
LUMENS
0 2084
5 1685 159
10 1228
15 839 245
20 543
25 280 140
30 107
35 40 31
40 10
45 0 2
50 0
55 0 0
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0
37W MR16 IR - 40° FLOOD SYLVANIA HALOGEN LAMP, LUMEN RATING = 840 LMS, 120V ELECTRONIC TRANSFORMER
LUMINANCE SUMMARY CD. / SQ.
M.
ANGLE MEAN CD/SQ M
45 0
55 0
65 0
75 0
85 0
** EFFICIENCY = 68.7% ** CERTIFIED TEST REPORT NO. 2741FR DATE: SEPT 24, 2004
COMPUTED BY LSI PROGRAM **TEST-LITE**

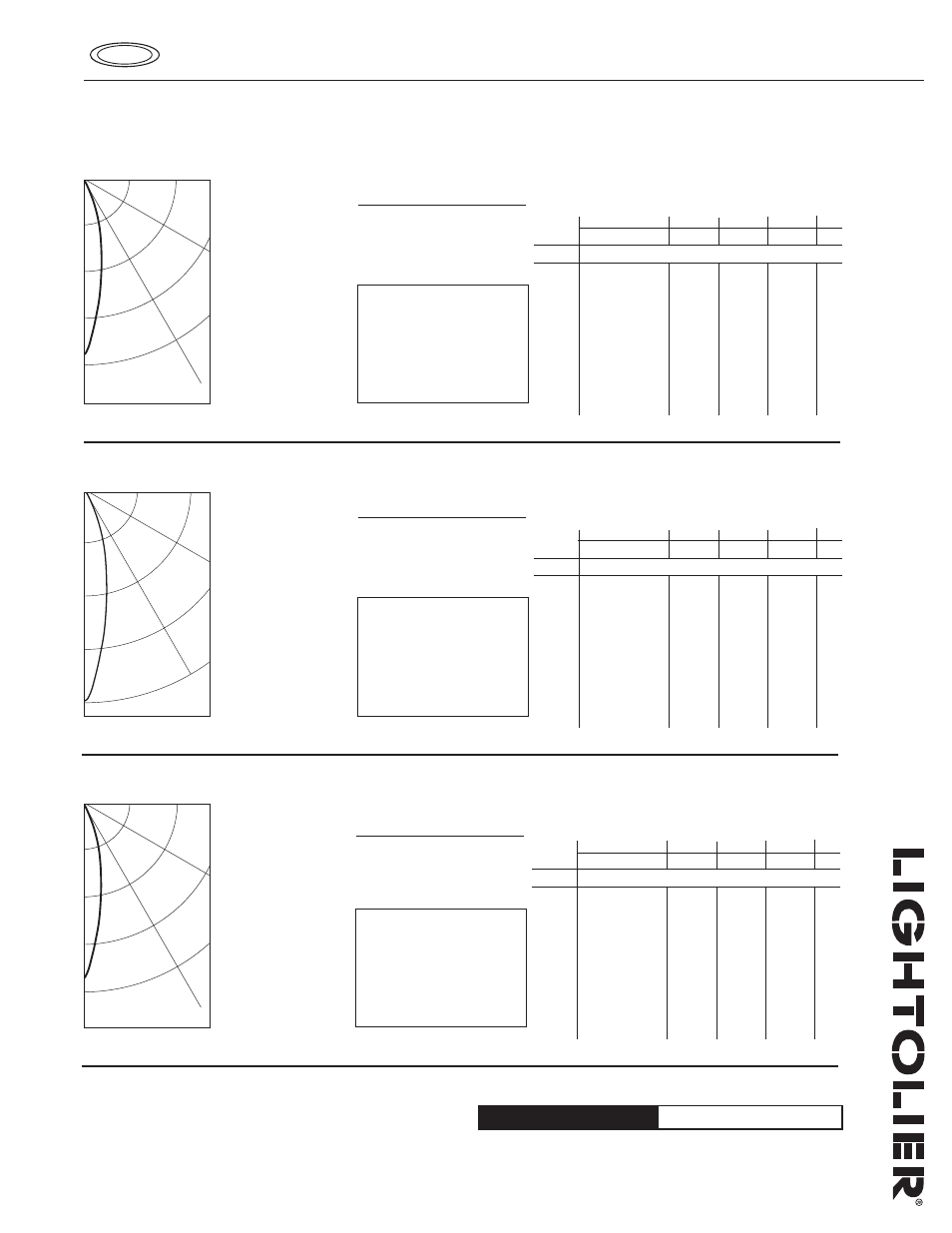

CANDLEPOWER DISTRIBUTION
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .82 .82 .82 .82 .80 .80 .76 .76 .73 .73 .69
1 .80 .78 .77 .76 .77 .75 .74 .73 .72 .71 .67
2 .77 .75 .74 .72 .74 .71 .72 .70 .70 .68 .66
3 .75 .73 .71 .69 .72 .69 .70 .68 .69 .66 .65
4 .74 .71 .68 .67 .70 .66 .69 .65 .67 .65 .63
5 .72 .68 .66 .64 .68 .64 .67 .63 .66 .63 .62
6 .70 .67 .64 .63 .66 .62 .65 .62 .64 .61 .61
7 .68 .65 .62 .61 .64 .60 .64 .60 .63 .60 .59
8 .67 .63 .61 .59 .62 .59 .62 .59 .61 .58 .58
9 .65 .61 .59 .57 .61 .57 .61 .57 .60 .57 .56
10 .64 .60 .58 .56 .60 .56 .59 .56 .59 .56 .55
LUMINAIRE INPUT WATTS = 38
Coefficients of Utilization
SC = .4
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 543 64.75 94.30
0-40 574 68.44 99.67
0-60 576 68.67 100.00
0-90 576 68.67 100.00
40-90 1 0.23 0.33
60-90 0 0.00 0.00
90-180 0 0.00 0.00
0-180 576 68.67 100.00
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
ANGLE MEAN CP
LUMENS
0 1985
5 1605 152
10 1170
15 799 233
20 518
25 266 133
30 102
35 38 30
40 9
45 0 2
50 0
55 0 0
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0
50W MR16 IR - 40° FLOOD GE HALOGEN LAMP, LUMEN RATING = 800 LMS, 120V ELECTRONIC TRANSFORMER
500
1000
1500
2000
30˚
60˚
90˚
LUMINANCE SUMMARY CD. / SQ.
M.
ANGLE MEAN CD/SQ M
45 0
55 0
65 0
75 0
85 0
** EFFICIENCY = 68.7% ** CERTIFIED TEST REPORT NO. 2817FR DATE: NOV 12, 2004
COMPUTED BY LSI PROGRAM **TEST-LITE**
CANDLEPOWER DISTRIBUTION
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .82 .82 .82 .82 .80 .80 .76 .76 .73 .73 .69
1 .80 .78 .77 .76 .77 .75 .74 .73 .72 .71 .67
2 .77 .75 .74 .72 .74 .71 .72 .70 .70 .68 .66
3 .75 .73 .71 .69 .72 .69 .70 .68 .69 .66 .65
4 .74 .71 .68 .67 .70 .66 .69 .65 .67 .65 .63
5 .72 .68 .66 .64 .68 .64 .67 .63 .66 .63 .62
6 .70 .67 .64 .63 .66 .62 .65 .62 .64 .61 .61
7 .68 .65 .62 .61 .64 .60 .64 .60 .63 .60 .59
8 .67 .63 .61 .59 .62 .59 .62 .59 .61 .58 .58
9 .65 .61 .59 .57 .61 .57 .61 .57 .60 .57 .56
10 .64 .60 .58 .56 .60 .56 .59 .56 .59 .56 .55
LUMINAIRE INPUT WATTS = 51
Coefficients of Utilization
SC = .4
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 518 64.75 94.30
0-40 547 68.44 99.67
0-60 549 68.67 100.00
0-90 549 68.67 100.00
40-90 1 0.23 0.33
60-90 0 0.00 0.00
90-180 0 0.00 0.00
0-180 549 68.67 100.00
Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%
ANGLE MEAN CP
LUMENS
0 2792
5 2258 214
10 1646
15 1125 328
20 729
25 375 188
30 144
35 55 42
40 14
45 0 3
50 0
55 0 0
60 0
65 0 0
70 0
75 0 0
80 0
85 0 0
90 0
50W MR16 IR - 40° FLOOD SYLVANIA HALOGEN LAMP, LUMEN RATING = 1125 LMS, 120V ELECTRONIC TRANSFORMER
LUMINANCE SUMMARY CD. / SQ.
M.
ANGLE MEAN CD/SQ M
45 0
55 0
65 0
75 0
85 0
** EFFICIENCY = 68.8% ** CERTIFIED TEST REPORT NO. 2629FR DATE: MAY 12, 2004
COMPUTED BY LSI PROGRAM **TEST-LITE**
CANDLEPOWER DISTRIBUTION
CEILING 80% 70% 50% 30%
WALL 70 50 30 10 50 10 50 10 50 10 0
RCR
0 .82 .82 .82 .82 .80 .80 .76 .76 .73 .73 .69
1 .80 .78 .77 .76 .77 .75 .74 .73 .72 .71 .67
2 .77 .75 .74 .72 .74 .71 .72 .70 .70 .68 .66
3 .75 .73 .71 .69 .72 .69 .70 .68 .69 .66 .65
4 .74 .71 .68 .67 .70 .66 .69 .65 .67 .65 .63
5 .72 .68 .66 .64 .68 .64 .67 .63 .66 .63 .62
6 .70 .67 .64 .63 .66 .62 .65 .62 .64 .61 .61
7 .68 .65 .62 .61 .64 .60 .64 .60 .63 .60 .59
8 .67 .63 .61 .59 .62 .59 .62 .59 .61 .58 .58
9 .65 .61 .59 .57 .61 .57 .61 .57 .60 .57 .56
10 .64 .60 .58 .56 .60 .56 .59 .56 .59 .56 .55
LUMINAIRE INPUT WATTS = 51
Coefficients of Utilization
SC = .4
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 729 64.82 94.21
0-40 771 68.56 99.65
0-60 774 68.80 100.00
0-90 774 68.80 100.00
40-90 2 0.24 0.35
60-90 0 0.00 0.00
90-180 0 0.00 0.00
0-180 774 68.80 100.00
