The MC5-IP models are upgraded via global connection (through the IP network
port). Upgrades are digitally signed by LINDY using a secure key. This prevents
unauthorised or altered firmware images being downloaded into the MC5-IP.

To upgrade MC5-IP models

1 Download the latest firmware revision for the MC5-IP from LINDY support

and decompress the download file. View the decompressed files and make a
note of the name and location of the .bin file that was part of the download
file collection.

2 Make a

global connection

to the MC5-IP unit and login as the admin user.

2 Once logged in, click the Configure button in the top right corner of the

window.

3 Click the Unit Configuration button.
4 Click the Advanced Unit Configuration button.

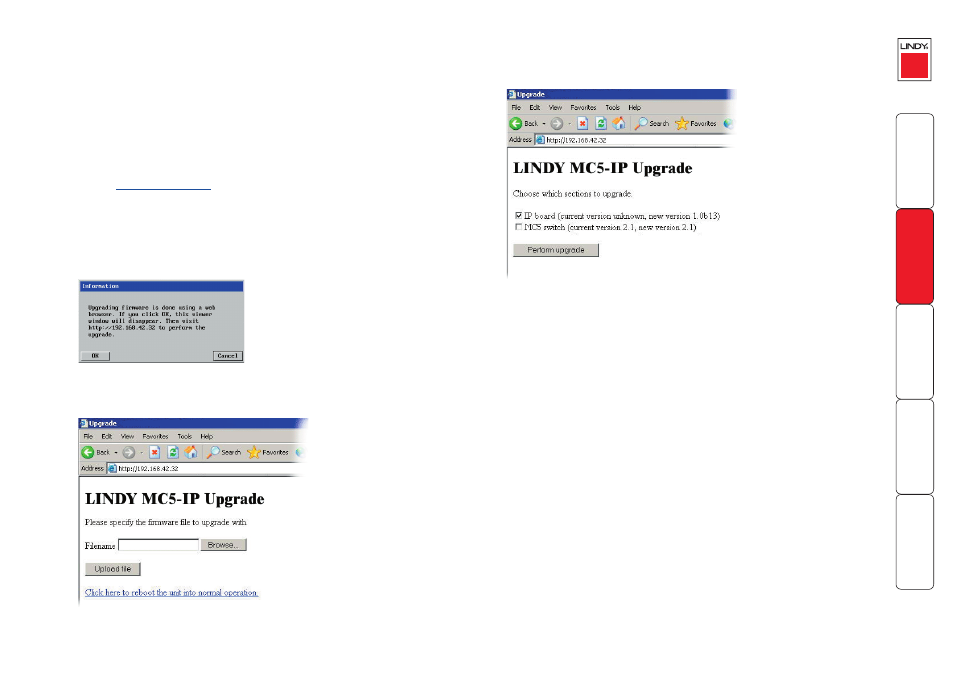

5 Click the Upgrade Firmware button. The following dialog will be displayed:

6 Click OK. The MC5-IP is now ready to accept the upgrade files. Open your

browser and log into the MC5-IP using the IP address that was confirmed in
the dialog. Once connected, the MC5-IP will offer the following screen:

7 Click the Browse button and locate the .bin upgrade file that you

downloaded earlier. The MC5-IP will show the following screen:

8 Select which portion of the MC5-IP that you wish to upgrade. Tick both

options to upgrade the complete unit. When ready, click the Perform
upgrade button.

The upgrade will take place and its progress will be shown on screen.
