9. See Figure 16 for
connecting the
photoelectric device
to the operator. See
Page 15 for proper
setting of the
selector switches.
These switches
must be properly
set and an approved photoelectric device or approved door edge
device connected to the operator to obtain B2 Mode of
Operation, Momentary Contact to Close.
TO AVOID DAMAGE TO DOOR AND
OPERATOR ENSURE ALL DOOR LOCKS ARE
DISABLED.
USE AN INTERLOCK SWITCH IF A LOCK IS
REQUIRED TO RETAIN FUNCTIONALTY.
CAUTION
Figure 8
Door Edge
Device
Note: See the door edge manufacturer‟s installation instructions for the complete installation procedure. See Figure 16 for connecting the
edge to the operator. See Page 15 for proper setting of the selector switches. These switches must be properly set and an approved photo-
electric device or approved door edge device connected to the operator to obtain B2 Mode of Operation, Momentary Contact to Close.

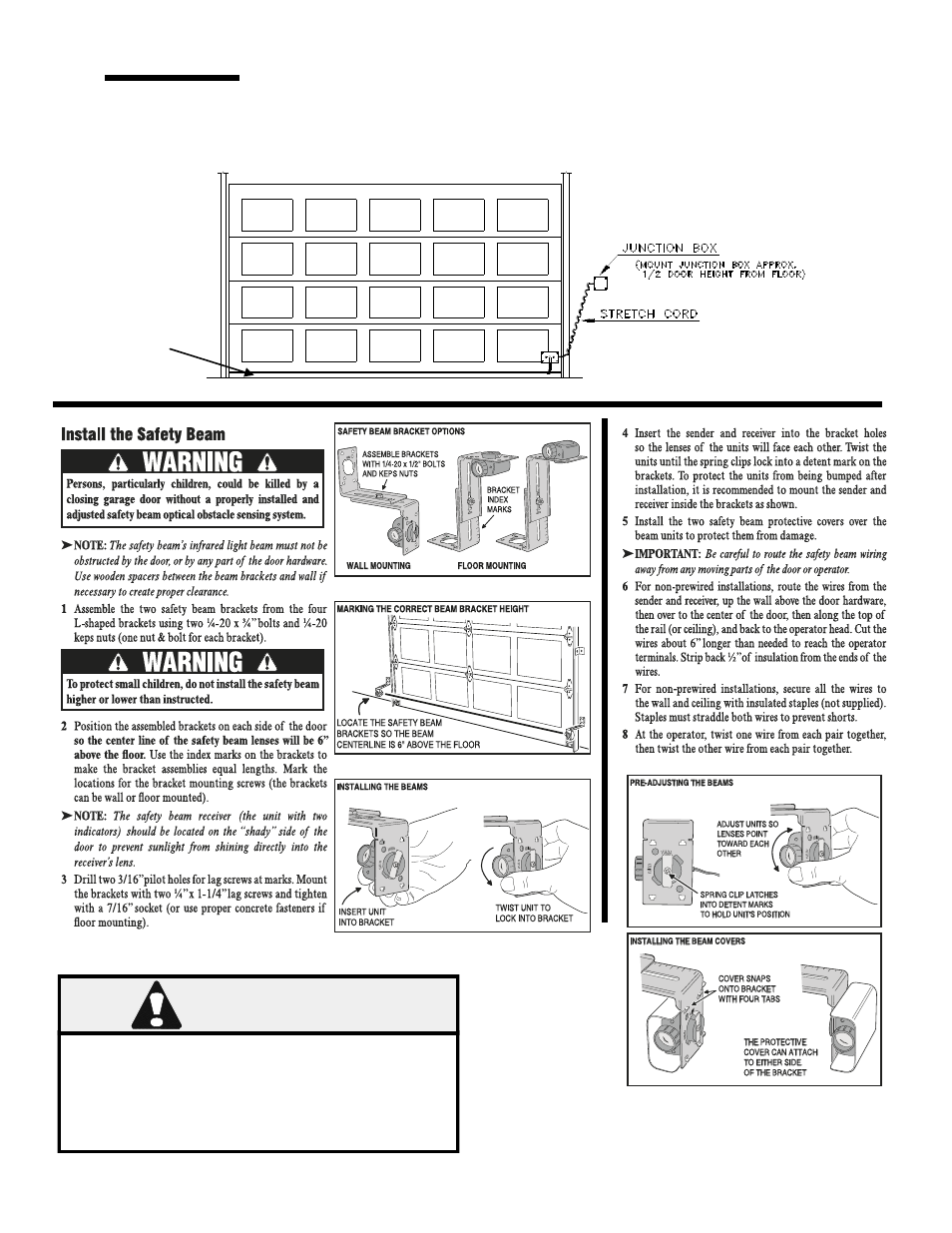

Door Edge Installation Illustration
12 DOOR EDGE and PHOTOELECTRIC INSTALLATION
