Linear CHCR-7/8 - Manual

CHCR
Carriage House Door
Rail Conversion Kit
Installation
Instructions
For Models:
CHCR-7/8
CHCR-8
CHCR-10
1. PRODUCT DESCRIPTION
Linear’s carriage house door rail conversion kit is a garage door
operator rail accessory that converts standard rails for installations
with heavier carriage house style garage doors. The rolled-steel
conversion rail bolts to the top of the standard rail to form a strong
“I-beam” rail assembly.
The rail conversion kit is designed for installation on Linear’s
belt-drive and chain-drive rails. The rail models compatible with the
rail conversion kit are:
HBT7C 7-foot belt-drive rail
HBT8C 8-foot belt-drive rail
HCT7C 7-foot chain-drive rail
HCT8C 8-foot chain-drive rail
HCT10C 10-foot chain-drive rail
•
•
•
•
•

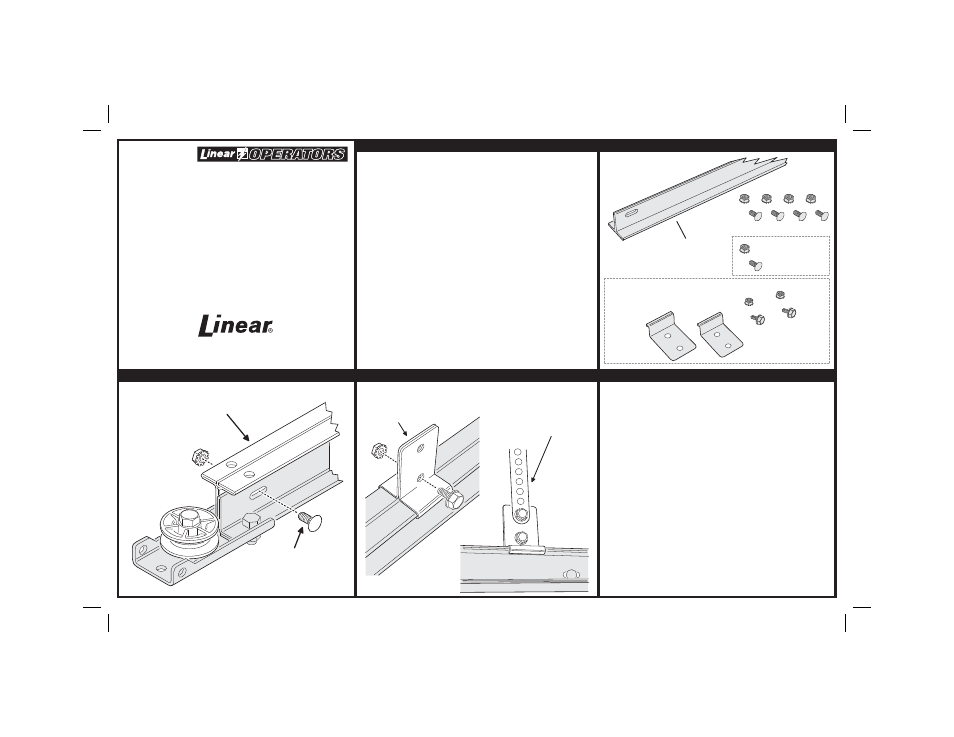

2. KIT PARTS
3. RAIL ASSEMBLY 4. OPTIONAL RAIL SUPPORT BRACKET LIMITED WARRANTY
This product is warranted to the original consumer against defects in material and
workmanship for fi ve (5) years. Linear will repair, or at its option, replace, any device
that it fi nds requires service under this warranty, and will return the repaired or replaced
device to the consumer at Linear’s cost. Devices must be sent to Linear for service
at owner’s expense. This warranty does not apply to damage to the product from
negligence, abuse, abnormal usage, misuse, accidents, normal wear or tear or due
to failure to follow Seller’s instructions, or arising from improper installation, storage
or maintenance. In no event will Linear be responsible for incidental, compensatory,
punitive, consequential, indirect, special or other damages. The remedies provided by
this warranty are exclusive. Some states do not allow the exclusion or limitation of
incidental and consequential damages, so the above limitation or exclusion may not
apply to you. Any warranties implied by law are limited to the time periods set forth
above. Some states do not allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you. This warranty gives you specifi c legal rights,
and you may also have other rights which vary from state to state.
For warranty service and shipping instructions contact Linear at the phone number
shown below. In order to be protected by this warranty, save your proof of purchase
and send a copy with equipment should repair be required. All products returned for
warranty service require a Return Product Authorization Number (RPA#). Contact
Linear Technical Services at 1-800-421-1587 for an RPA# and other important details.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL,CONVERSION,CARRIAGE - LINEAR P/N: 227800 A - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.500 x 5.500” - SCALE: 1-1
(760) 438-7000
USA & Canada (800) 421-1587 & (800) 392-0123
Toll Free FAX (800) 468-1340
www.linearcorp.com
Copyright © 2007 Linear LLC 227800 A
CONVERSION
RAIL
OPTIONAL MODEL CSB
SUPPORT BRACKET KIT
(NOT INCLUDED)
SUPPORT
BRACKET
ADDITIONAL
BRACKET
HARDWARE
FOUR 1/4-20 CARRIAGE BOLTS
FOUR 1/4-20 KEPS NUTS
PARTS INCLUDED
8-FOOT & 10-FOOT
EXTRA 1/4-20
CARRIAGE BOLT
AND KEPS NUT
BE SURE ALL THE
SLOTTED HOLES
ALIGN IN BOTH RAILS
ATTACH CONVERSION RAIL
TO STOCK RAIL WITH
CARRIAGE BOLTS AND
LOCKING NUTS SUPPLIED
CHAIN / BELT NOT SHOWN
BOLTS ON
THIS SIDE
NUTS ON
THIS SIDE
CONVERSION RAIL
STOCK RAIL
PLACE THE CONVERSION RAIL
ON THE FAR SIDE OF THE STOCK
RAIL AS SHOWN ATTACH SUPPORT
BRACKET AT CENTER
OF CONVERSION RAIL
CONNECT SUPPORT
BRACKET TO A
HANGER STRAP
