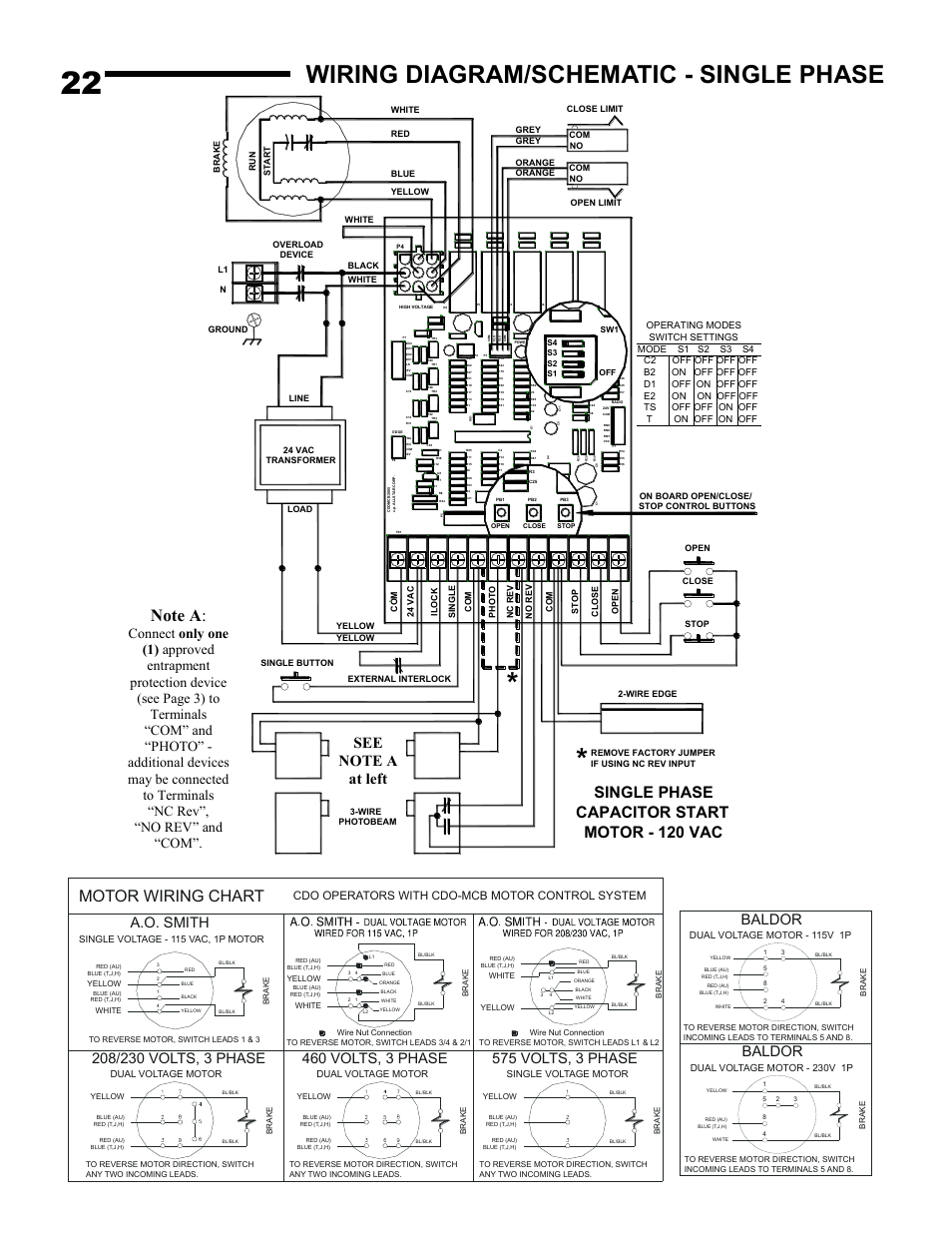

Wiring diagram/schematic - single phase, Motor wiring chart, Single phase capacitor start motor - 120 vac – Linear J-S User Manual

Page 22: 575 volts, 3 phase, A.o. smith, Baldor, Cdo operators with cdo-mcb motor control system

Wiring diagram/schematic - single phase, Motor wiring chart, Single phase capacitor start motor - 120 vac | 575 volts, 3 phase, A.o. smith, Baldor, Cdo operators with cdo-mcb motor control system | Linear J-S User Manual | Page 22 / 26 Wiring diagram/schematic - single phase, Motor wiring chart, Single phase capacitor start motor - 120 vac | 575 volts, 3 phase, A.o. smith, Baldor, Cdo operators with cdo-mcb motor control system | Linear J-S User Manual | Page 22 / 26
