— 44 —
ANT.
CONT
ILLUMI
EXT.CONT
P.CONT
+
+
+
+ FRONT • L
FRONT • R
REAR • L
REAR • R
– +
FRONT
NON
FADING
REAR

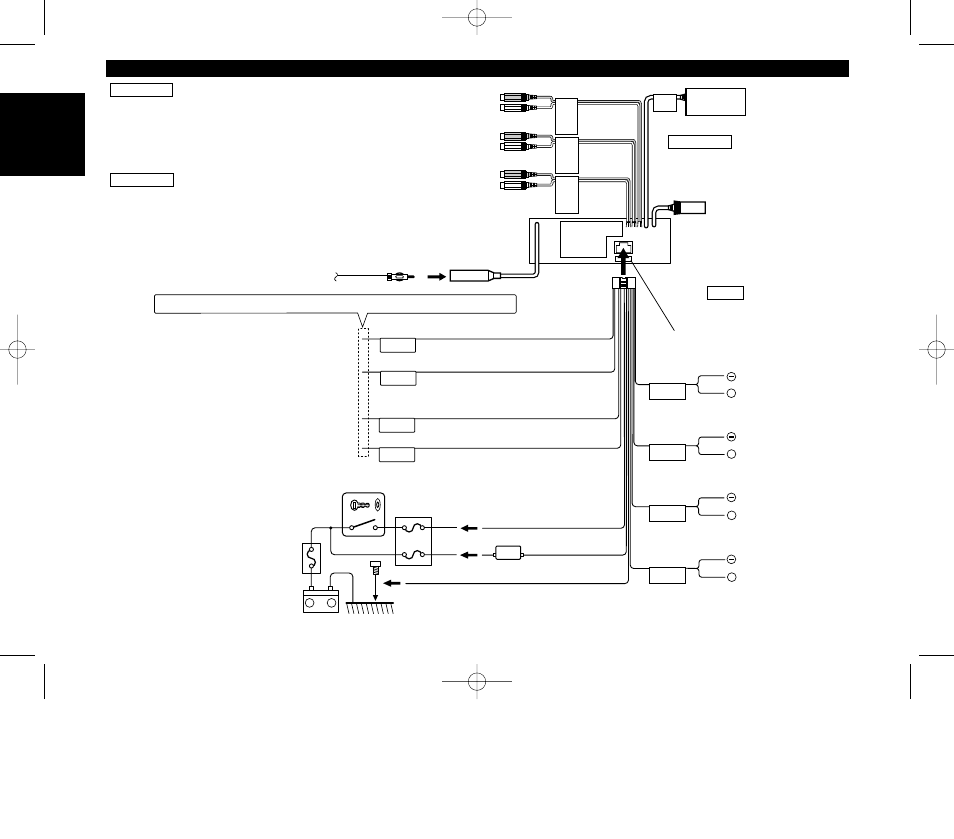

Connecting Wires to Terminals
When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front and
rear). For example, if you connect the +
connector of the left speaker to a front output
terminal, do not connect the -connector to a
rear output terminal.
2CAUTION
If you connect the ignition wire (red) and the
battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that in
turn may start a fire. Always connect those
wires to the power source running through the
fuse box.
2WARNING
FM/AM antenna input
Rear left output (White)
Rear right output (Red)
Fuse (5A:KDC-X915)
(10A:KDC-X815/9015)
KENWOOD disc changer /
DAB control input /
Display Data Output Jack
Wiring harness
(Accessory1)
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left speaker
(KDC-X815/9015 only)
To front right speaker
(KDC-X815/9015 only)
To rear right speaker
(KDC-X815/9015 only)
To rear left speaker
(KDC-X815/9015 only)
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse
box
(Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the wire come out from the tab.
Front left output (White)
Front right output (Red)
Non-fading right output (Red)
(KDC-X915/X815 only)
To connect the Disc changer or
DAB unit, consult each manual.
NOTE
Power control wire (Blue/White)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
When using the optional power amplifier, connect
to its power control terminal.
To car light control switch
Depending on what antenna you are using, connect
either to the control terminal of the motor antenna, or
to the power terminal for the booster amplifier of the
film-type antenna.
External amplifier control wire
(Pink / Black) (KDC-X915/X815 only)
To "EXT.AMP.CONT." terminal of the amplifier
having the external amp control function.
DC/DC converter box
(Wrap the cushion
(Accessory!) around
this box.)
Separate this box from the unit and
antenna cords. If they are too close, it
may cause the reception to get noise.
2CAUTION
Outputs data representing the unit's
current state, causing it to appear in
the external display.To connect to
this jack, a converting adapter
(optional) is necessary.
Non-fading left output (White)
(KDC-X915/X815 only)
