English – KTM 400 User Manual

Page 30

ENGLISH

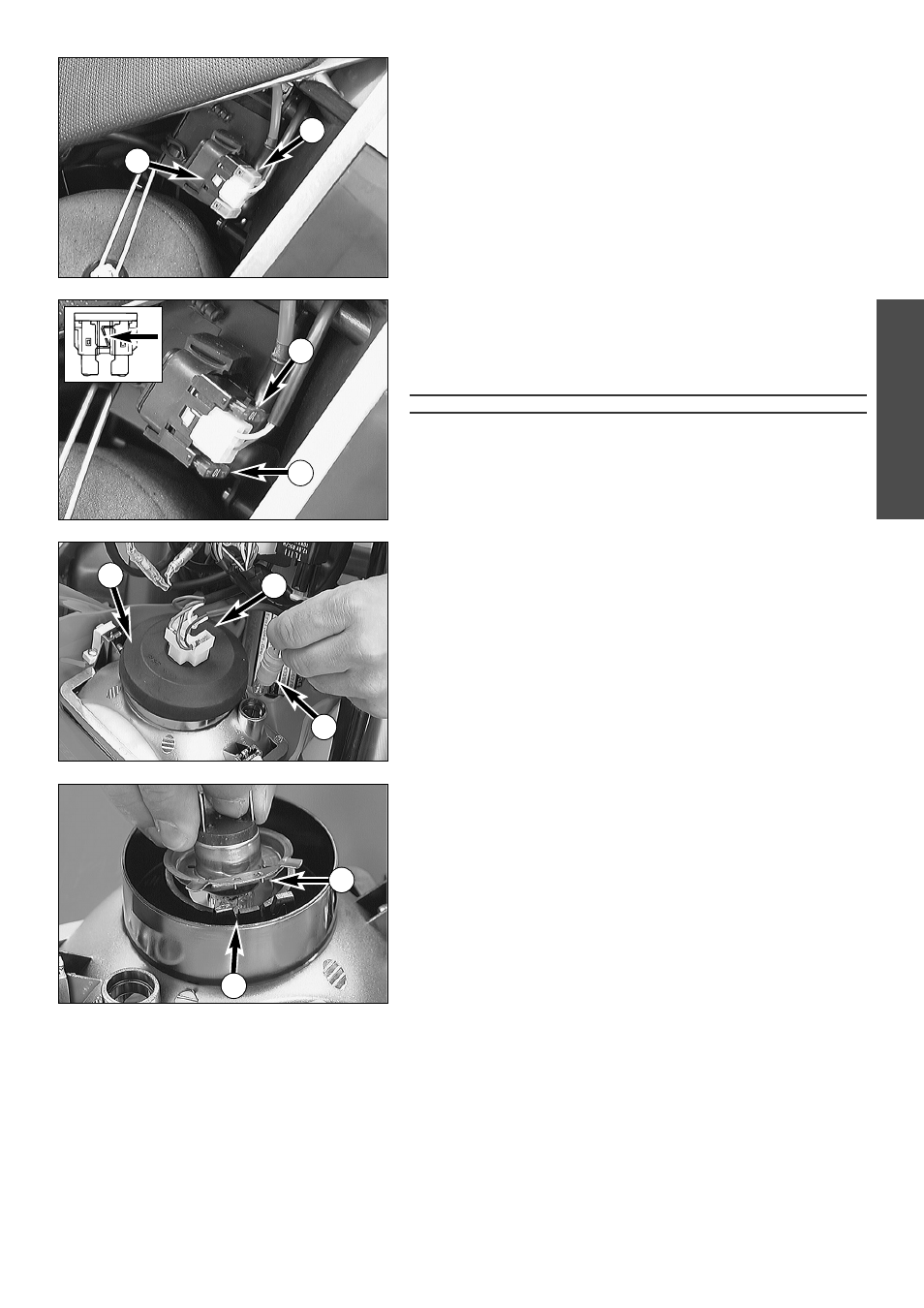

Fuse (MXC/EXC)

The fuse

is disposed in the starter relay of the E-starter

underneath

the left side paneling.
Having removed the left side paneling, the air box cover and the protection
cover

, you will be able to see the fuse.

The following loads are connected to it:
– E-starter system
– horn
– flasher lights

The starter relay also contains a (10 amp) spare fuse

Replace a blown fuse only with an equivalent one. If a new fuse that has
just been set in gets blown again, you are strongly advised to have it
inspected by a KTM dealer.
The fuse capacity is 10 Ampere.

CAUTION

NDER NO CIRCUMSTANCES IS A STRONGER FUSE ALLOWED TO BE SET IN OR A FUSE

ALLOWED TO BE

“

REPAIRED

”. A

N INEXPERT TREATMENT COULD DAMAGE THE WHOLE

ELECTRICAL INSTALLATION

Replacing headlight lamp/parking light lamp

Loosen both rubber bands and tilt headlight mask to the front. Pull the par-
king light lamp with holder

carefully out of the reflector. Pull connector

off the headlamp and remove rubber cap

. Disengage retaining clip

and take bulb out of reflector. When changing the parking-light lamp, sim-
ply pull it out of the holder.

Insert new lamp such that the noses

engage the recesses

.When doing

so, do not touch the glass body of the lamp so that it remains free from fat.
Engage retaining clip, mount rubber cap and connector. If the parking-light
lamp is to be replaced, simply insert it into the holder. Reinsert parking-light
lamp together with holder.
Engage the bottom end of headlamp mask at the retaining pins and fix the
mask by means of the rubber bands.
