Check/set distance of the magnetic sensor
The distance between magnet
2
and sensor
1
must be 2-4 mm
(0,08-0,16 in), otherwise malfunctions on the speedometer might occur.
This distance can be corrected by screwing in or off the sensor
1
.
WHEEL CIRCUMFERENCE „WS“

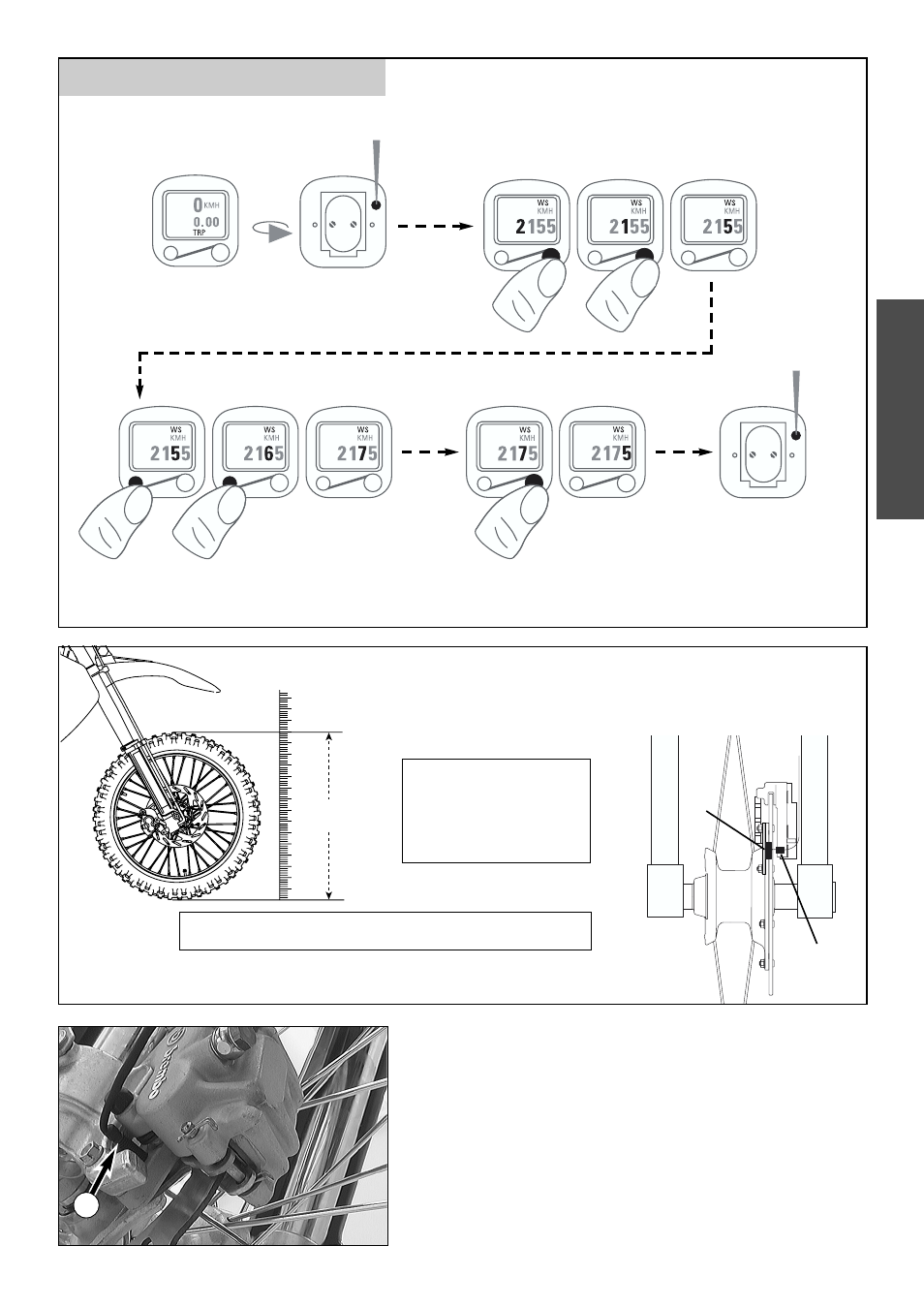

1. make sure that the indication
"TRP" is active and push the but-
ton on the back approx. 5 seconds
("WS" appears)
2. use the right button to select the position
to be changed
3. push the left button until the right figure
is showed in the display
4. repeat nos. 2 + 3 until
correct wheel circumfe-
rence is indicated
5. push the button on
the back for approx. 1
second to terminate
the setting procedure
5 sec
1 sec
mm x 3,14
km/h:
WS = mm x 3,14
mp/h:
WS = (mm x 3,14) : 1,61
1
2
Wheel circumference with standard tires = 2205 mm
