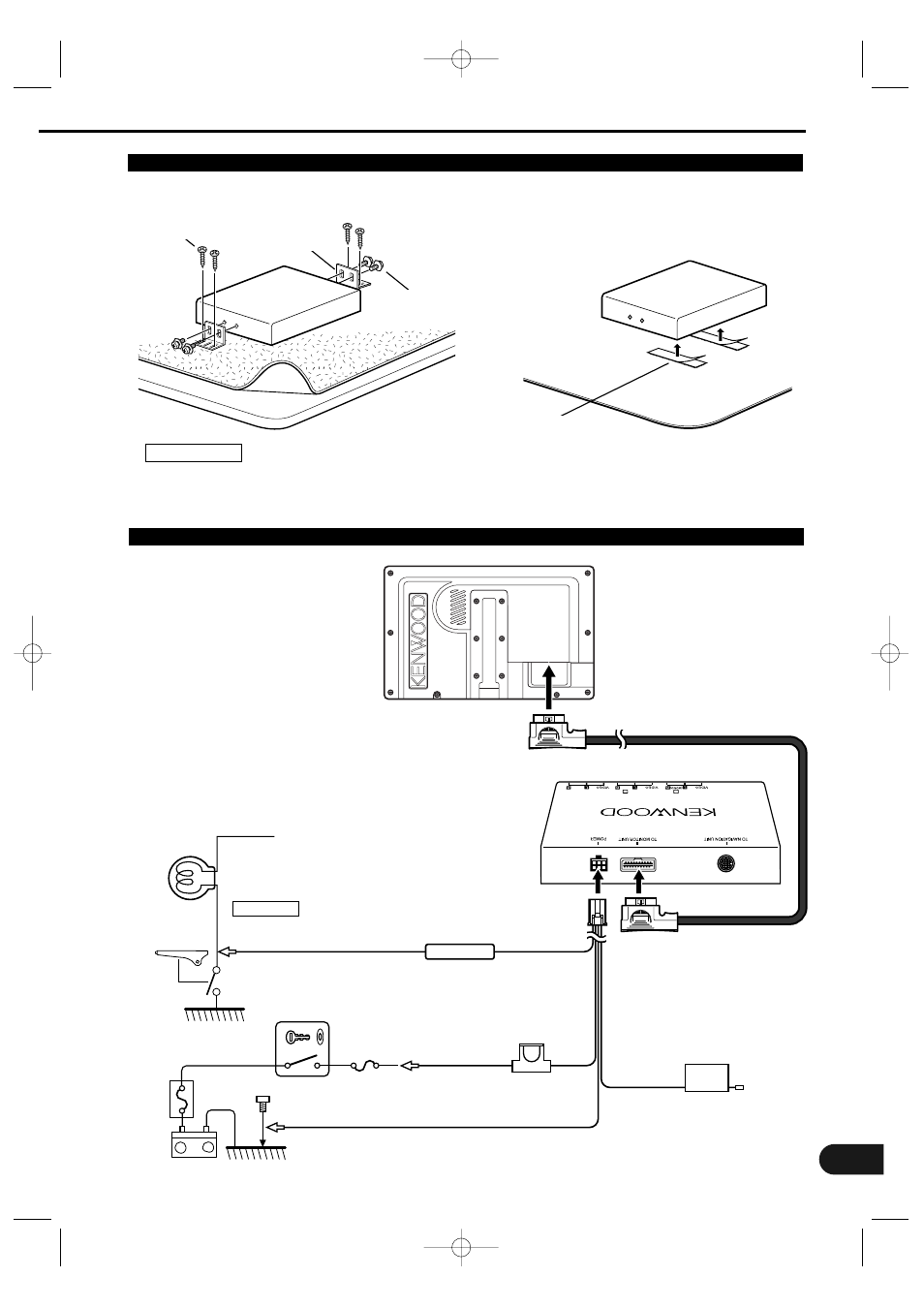

Installation for the Video Box Unit

Connecting the Power

AV INPUT

AV OUTPUT

AV INPUT

PRK SW

FM-TX

–

+12V

;;;;;;

■ Securing to audio board

■ Securing to pile carpet

Accessory 5

(Ø4 x 16 mm)

Accessory 6

Please do not install the unit near the dashboard, the rear tray, or other important components. Doing so could
lead to injury or accident should the unit come off due to a shock and strike a person or an important component.
Tapping screws(Accessory 5) should be used for mounting. (Attachment with velcro strips, although easy, can
come off with a shock.)

2CAUTION

Accessory 8

Accessory 7

Accessory 2

Accessory 1

Ignition wire (Red)

ª12V

Parking sensor wire (Green)

Connect to the vehicle's parking brake
detection switch harness using the
supplied relay connector.

For the sake of safety, be sure to
connect the parking sensor.

2 CAUTION

Ignition key switch

Car fuse box

(Main fuse)

ACC

Ground wire (Black)

· (To car chassis)

Battery

Monitor Unit

Video Box Unit

Peel the protective strips off of the velcro
strips, attach them to the bottom of the
hideaway unit, and secure to the pile carpet.

Fuse (5A)
