Scanner components

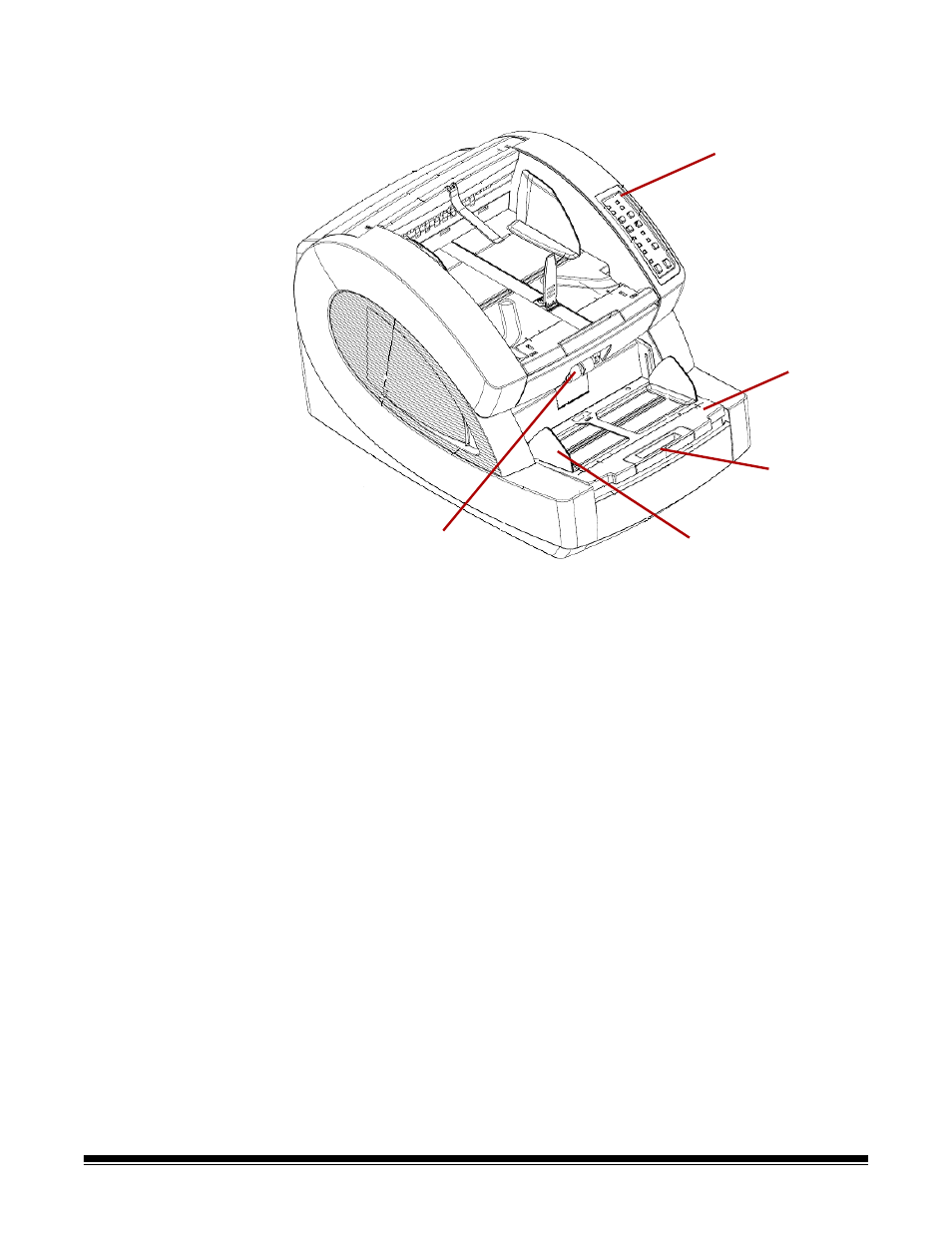

Front view
1
Control Panel — allows you to initiate scanner functions directly
from the scanner.
2
Feeder table — place the documents to be scanned on the feeder
table. It can be raised and lowered using the feeder table buttons
on the control panel.
3
Feeder table extender — provides a support for longer
documents that extend beyond the standard length. The extender
can be pulled out to add approximately 7 inches (18 cm) to the
feeder table.
4
Side guides — used to guide document(s) into the scanner’s
transport. They can be width-adjusted independently, which allows
for left-, right-, or center-feeding of documents.
5
Feed rollers — contains two rollers that assist in grabbing and
feeding documents into the scanner transport. These rollers can be
placed in an up position for manual feeding or a down position for
automatic document feeding.
1
2
3
4
5
