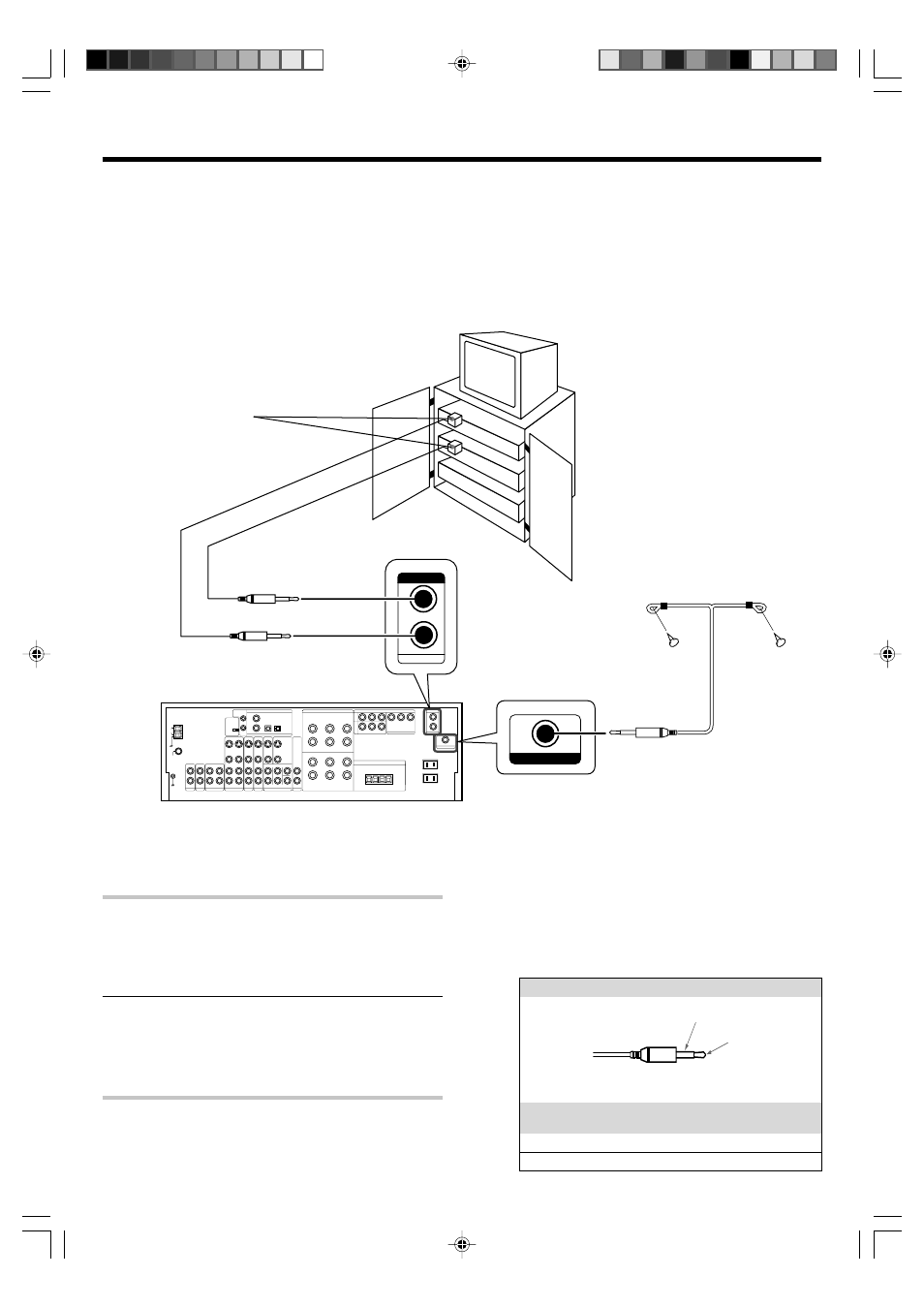

Connecting the RF antenna and external IR Repeater
(For VR-6060 only)
The remote control for this receiver has the RF (radio frequency) and IR (infrared rays) transmission function. IR repeaters enables you to control
components located in cabinets or behind glass doors. You can enjoy a wider remote control signal range by placing the RF antenna and IR repeater away
from the receiver.
KENWOOD components (except DVD player): System control &
Other components: (Registering setup codes) IR REPEATER fl
Setting up the system
RF REMOTE ANTENNA
OUT
IR REPEATER
RF antenna
Monitor TV
IR repeaters
Shape of plug to be connected.
IR REPEATER OUT
Mono Mini Plug
IR OUT SPECIFICATION:
Terminal IR REPEATER
OUT
To Tip Signal
To Sleeve Ground
Sleeve
Tip
(For RF Transmitter, select either
1. RF REMOTE Band 1, or
2. RF REMOTE Band 2)
Connecting IR repeater
1 Connect the IR repeater to the device as described in the
repeater’s manual.
2 Connect the IR repeater cable(s) to the IR REPEATER OUT
jack(s).
Notes
• IR repeaters send a signal similar to the device’s own remote control.
Xantech repeaters (models 282-00, 286-00, or 283-00) are compatible
with your new audio-video receiver.
Connecting the RF remote antenna
1 Insert the jack of the provided RF remote antenna into the
RF REMOTE ANTENNA jack.
2 Place the antenna wire vertically and fix it.
• Place the antenna away from the metallic panel.
