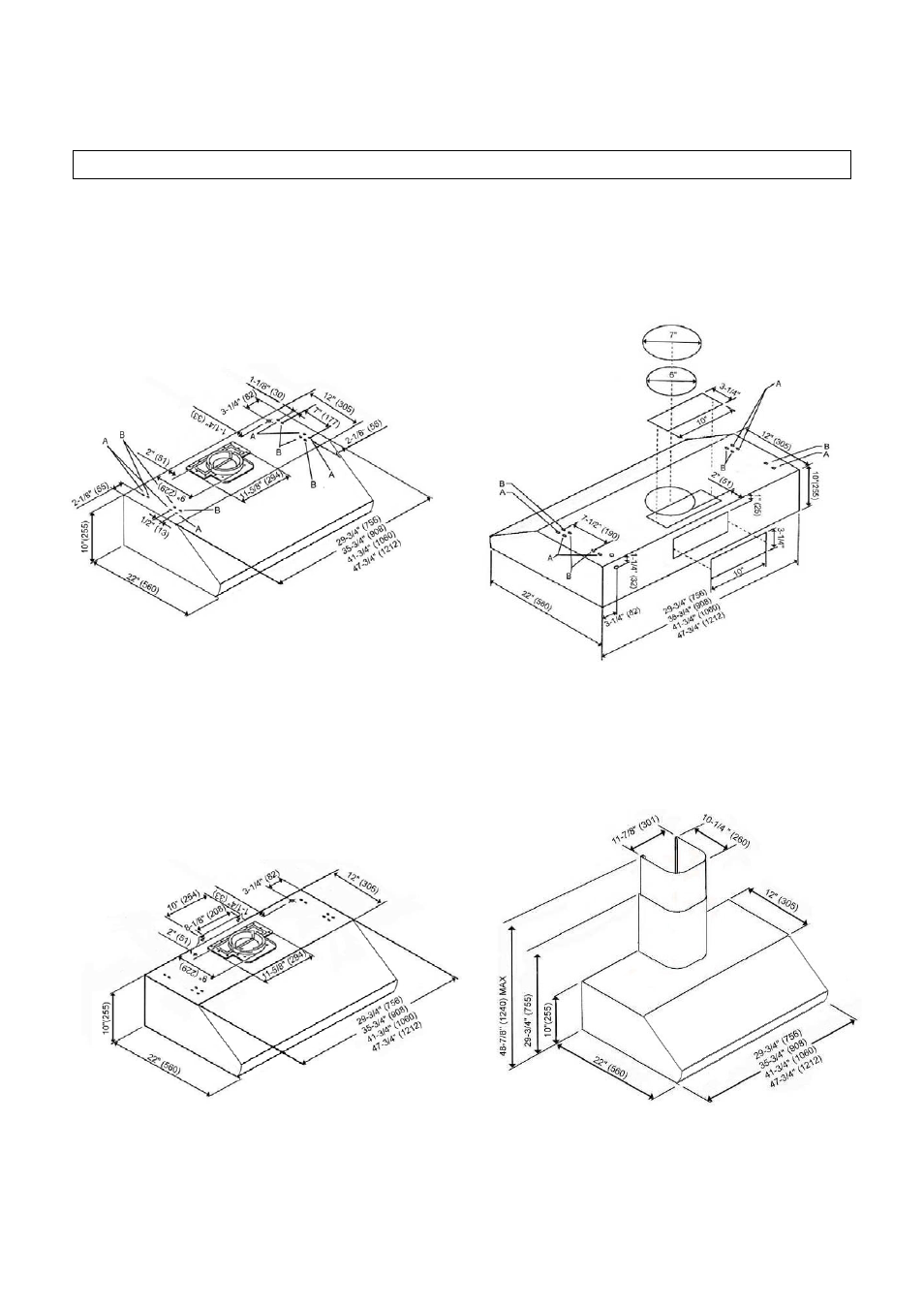

MEASUREMENTS & DIAGRAMS

***All inch measurements are converted from millimeters. Inch measurements are estimated.
***All measurements in ( ) are millimeters.

30

" = Knockout Holes “A”

36", 42”, 48” = Knockout Holes “A” & “B”

- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -

- FOR UNDER THE CABINET -
