25

DNX7180/DNX7480BT/DNX6980/DNX6180/DNX6040EX/DNX6480BT/DNX5180

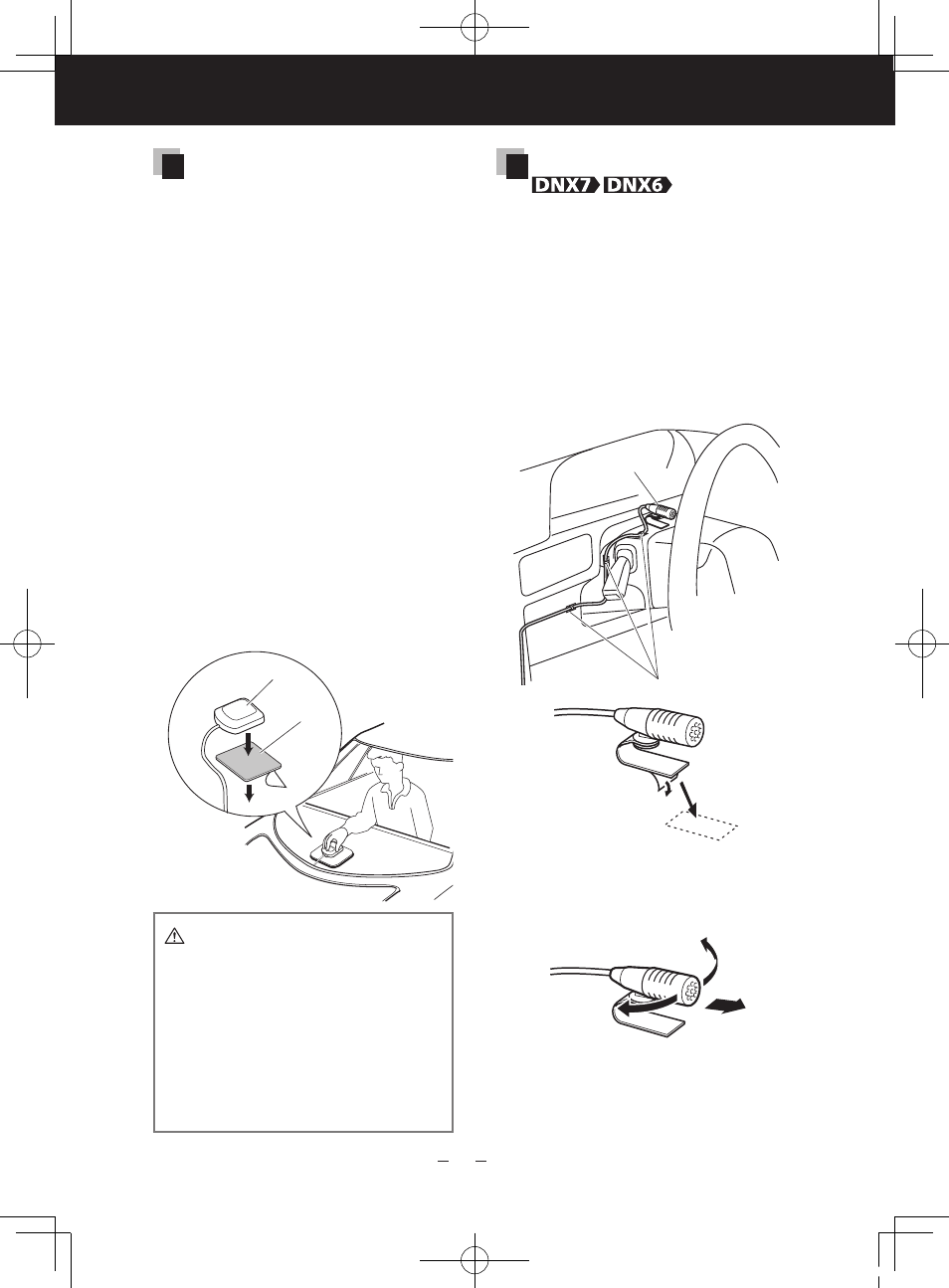

GPS antenna

GPS antenna is installed inside of

the car. It should be installed as

horizontally as possible to allow easy

reception of the GPS satellite signals.
To mount the GPS antenna inside

your vehicle:

1) Clean your dashboard or other

surface.

2) Peel the backing off of the

adhesive on the bottom of the

metal plate (accessory -).

3) Press the metal plate (accessory

-

) down firmly on your

dashboard or other mounting

surface. You can bend the metal

plate (accessory -) to conform to

a curved surface, if necessary.

4) Place the GPS antenna (accessory

0

) on top of the metal plate

(accessory -).

-

0

• Depending on the type of car, reception

of the GPS satellite signals might not be

possible with an inside installation.

• The GPS antenna should be installed at

a position that is spaced at least 12 inch

(30 cm) from cellular phone or other

transmitting antennas. Signals from the

GPS satellite may be interfered with by

these types of communication.

• Painting the GPS antenna with (metallic)

paint may cause a drop in performance.

Microphone unit

1) Check the installation position of

the microphone (accessory =).

2) Remove oil and other dirt from

the installation surface.

3) Install the microphone.
4) Wire the microphone cable up to

the unit with it secured at several

positions using tape or other

desired method.

=

Fix a cable with a commercial item of tape.

Peel the release coated paper of

double-face adhesive tape to fix on

the place shown above.

Adjust the direction of the

microphone to the driver.

Continued
