Keys Fitness Power System 1850 - Manual (Page 21)

Assembly
21
Step 12
Note: Stretch all cables out completely and make sure all twisting is removed before installing.
Install Mid Pulley Cable (46) as detailed in Figure 12. Follow dotted lines to identify exact location
of pulleys. See Page 29 “Cable View” for more detail.
Start by installing cable under the pulley at Leg Extension location.
You will need the following for installation:
Pulley (44) - Qty. 8
Cable (46) - Qty. 1
Nylon Locknut (104) - Qty. 8
Long Pulley Spacer (53) - Qty. 6
Longer Pulley Spacer (55) - Qty. 4
Short Pulley Spacer (54) - Qty. 2 Bolt (91) - Qty. 3
Bolt (92) - Qty. 1
Bolt (93) - Qty 1
Bolt (94) - Qty. 1
Bolt (95) - Qty. 1
Washer (102) - Qty. 18 Pulley Bracket w/ Shaft (21) - Qty. 1
Pulley Bracket Block (22) - Qty. 1
Pulley Bracket (23) - Qty. 1

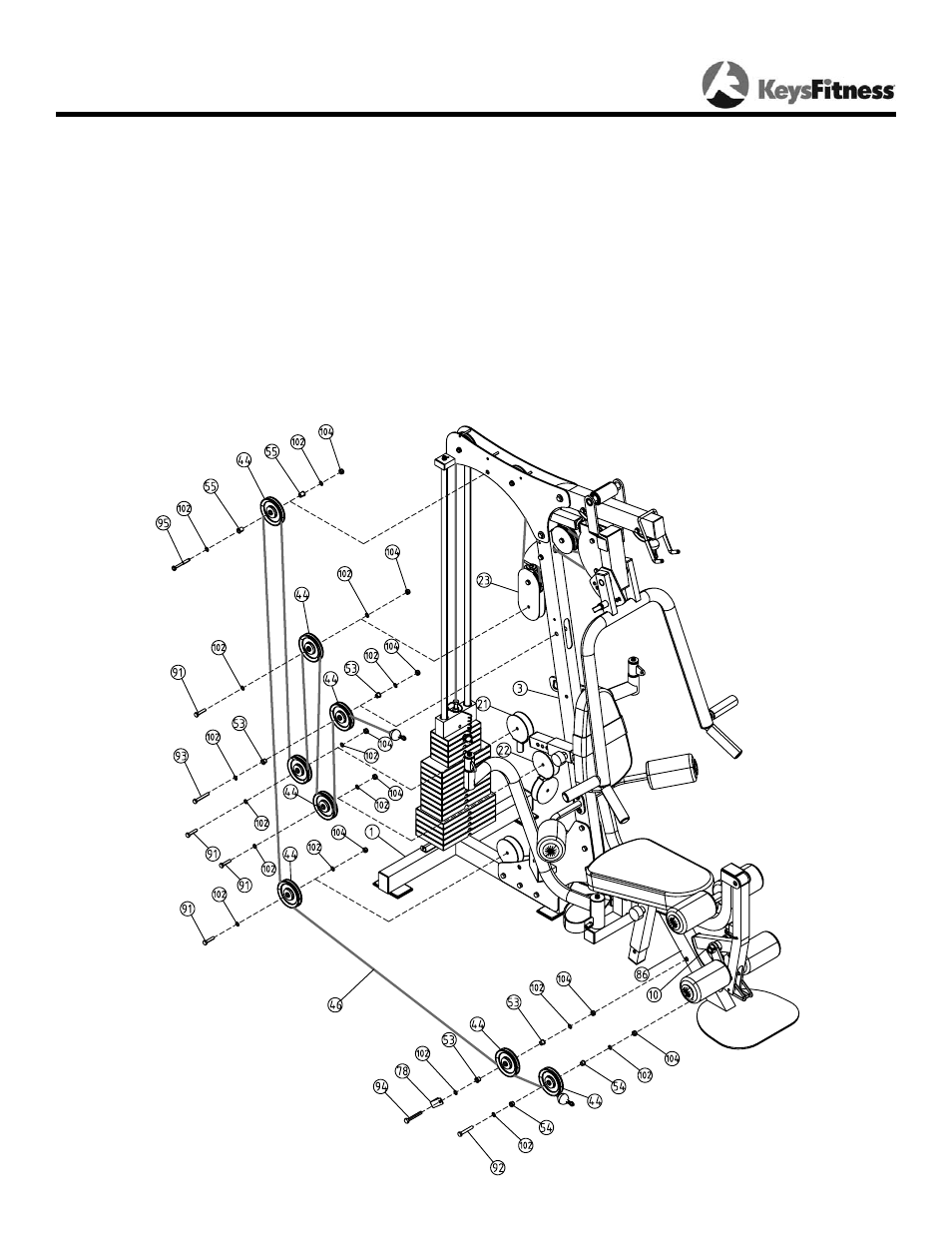

Figure 12
