Assembly – Keys Fitness Power System 1850 User Manual
Page 14
Step 5
Attach Press Arm Support (5) to Main Upright (3) by aligning the holes and sliding the Shaft (74) through.
Secure the Shaft (74) in place using two Set Screws (84).
Install Press Arm (6) to Press Arm Support (5) by aligning the holes and sliding the Shaft (73) through.
Secure the Shaft (73) in place using two Set Screws (84).
Assembly
14

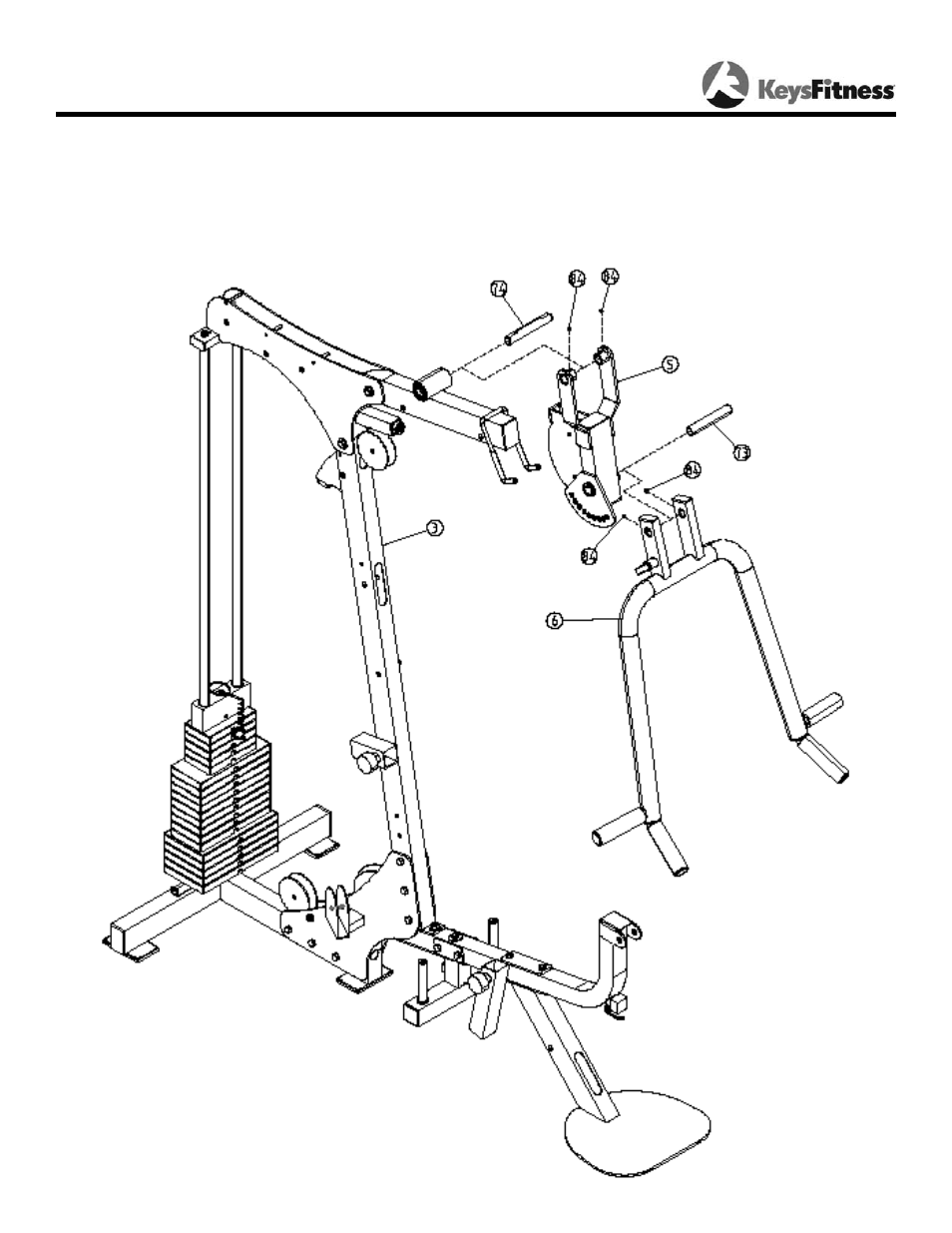

Figure 5
