Assembly – Keys Fitness Power System 1850 User Manual
Page 17
Assembly
17

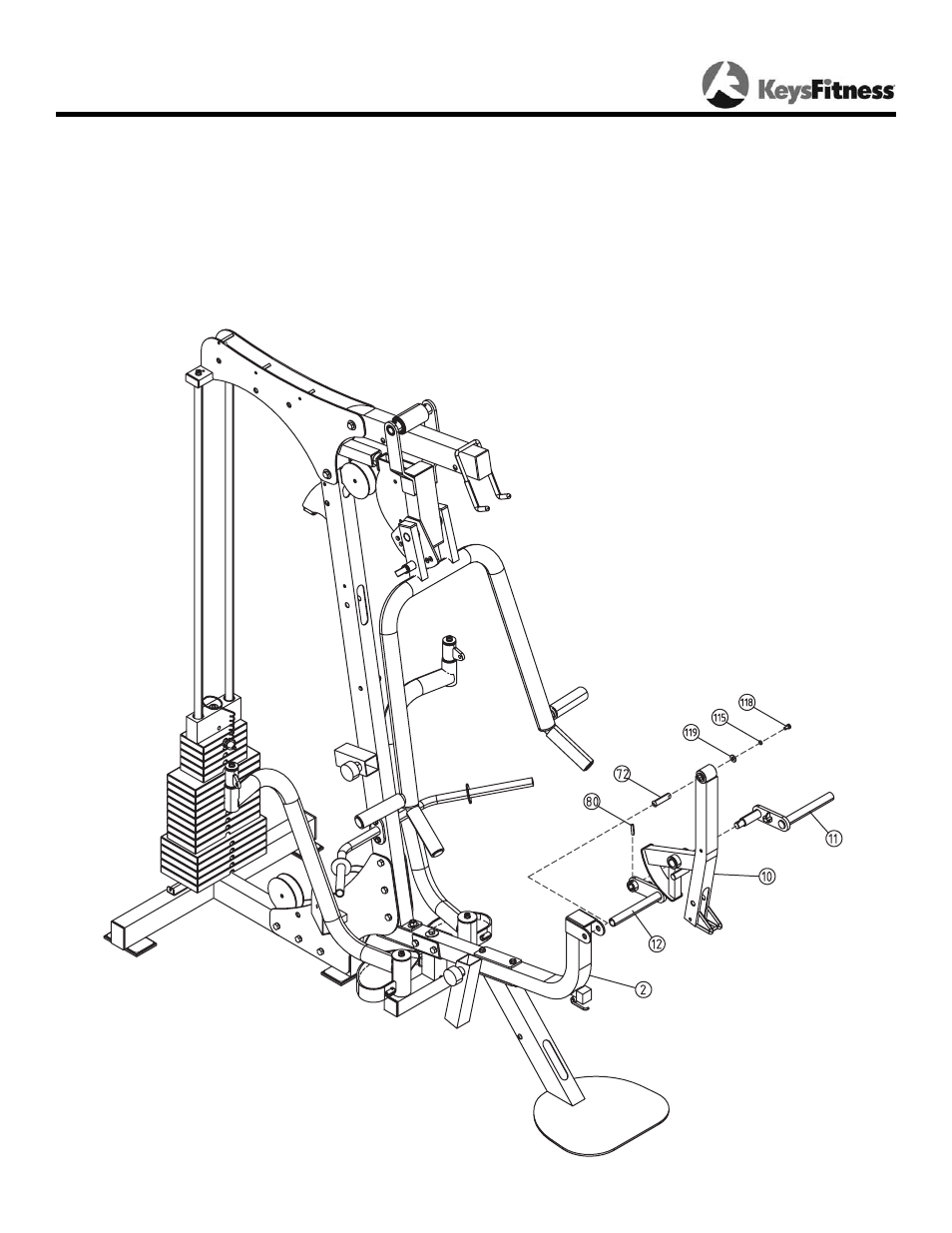

Step 8
Slide the Shaft (72) into the Leg Extension Lever (10). Attach Leg Extension Lever (10) to Seat Pad
Support Receptacle (2) and secure using one Washer (119), one Spring Washer (115), and one Allen Bolt
(118).
Slide Foam Frame w/ Shaft (11) through the Leg Extension Lever (10) and attach the Foam Frame w/o
Shaft (12) to the other side. Insert the Slip Tension Pin (80) through the hole where the two foam frames
meet. Note: You may need to use a rubber mallet to install Slip Tension Pin (80).
Figure 8
