Assembly
20
Step 11
Note: Stretch all cables out completely and make sure all twisting is removed before installing.
Install Chest Press Cable (45) as detailed in Figure 11. Follow dotted lines to identify exact
location of pulleys. See Page 29 “Cable View” for more detail.
Start by threading cable end into Top Plate (27).
You will need the following for installation:
Pulley (44) - Qty. 9
Cable (45) - Qty. 1
Nylon Locknut (104) - Qty. 9
Long Pulley Spacer (53) - Qty. 6
Longer Pulley Spacer (55) - Qty. 4
Adjustable Stopper (75) - Qty. 1
Bolt (90) - Qty. 2
Bolt (91) - Qty.2
Bolt (93) - Qty 3
Bolt (95) - Qty. 2
Washer (102) - Qty. 18
Hex Nut (100) - Qty. 1

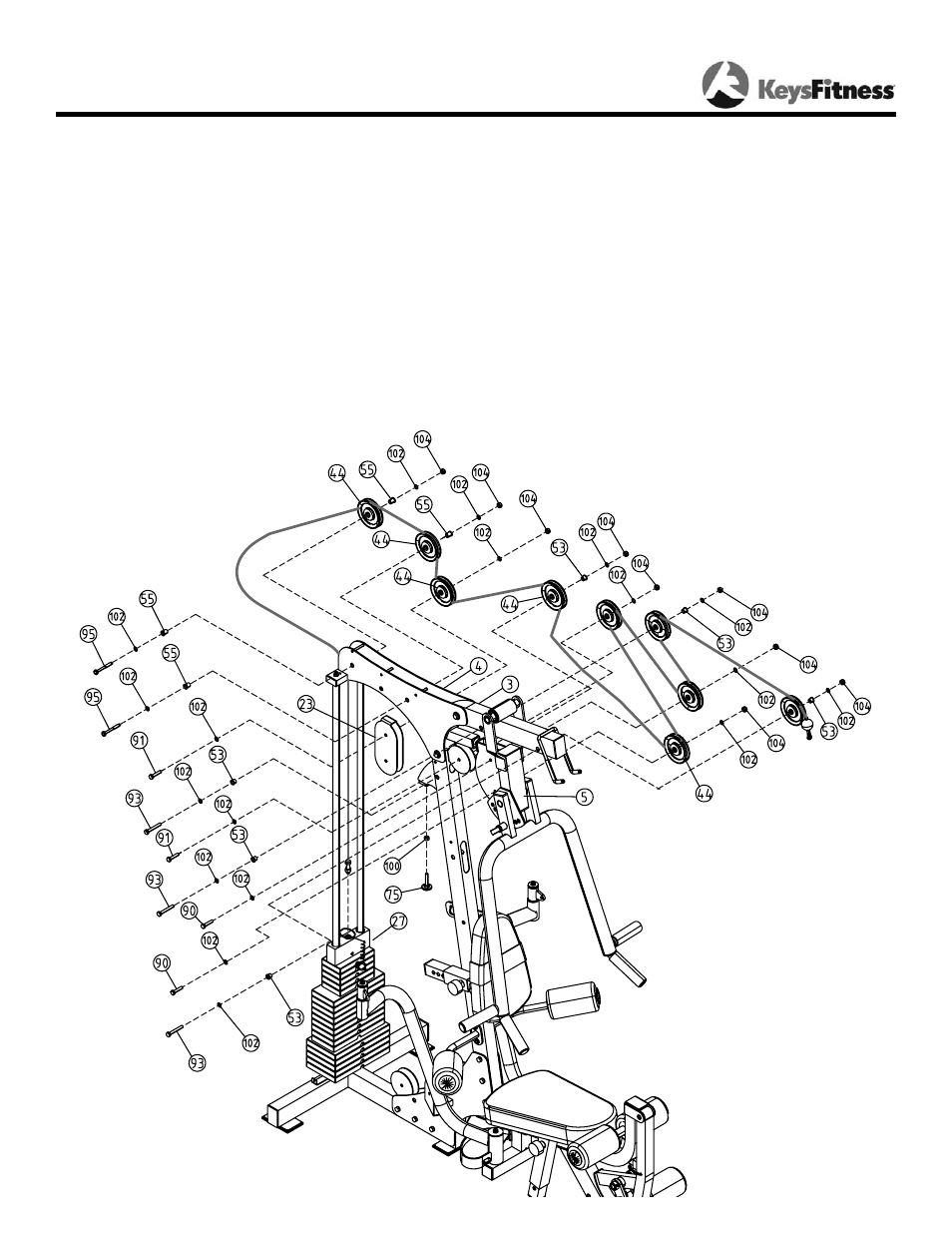

Figure 11
