KR-897/KR-797 (En)
24

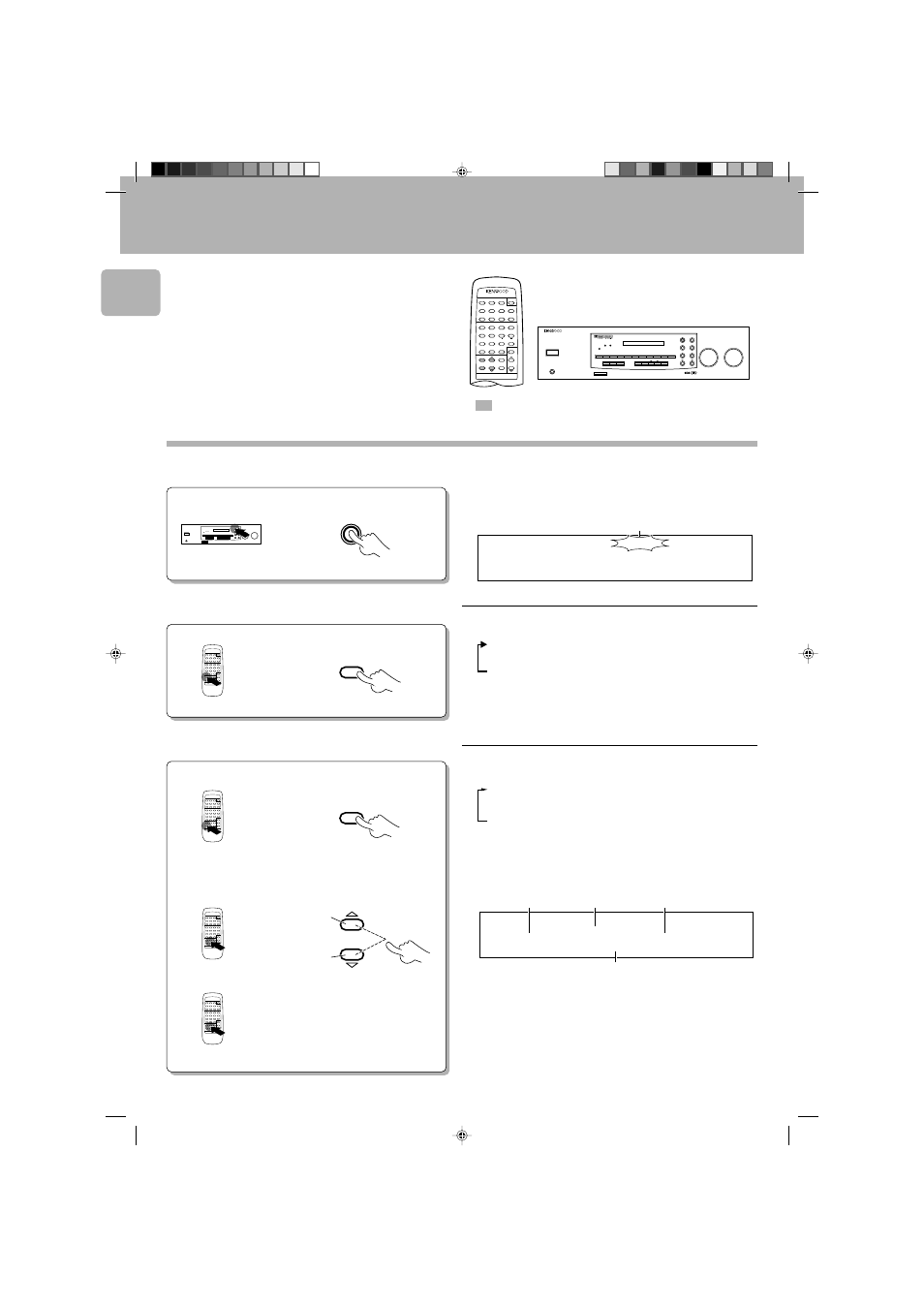

To improve the feeling of presence in the surround modes,
various parameters of each surround mode can be set up
according to the speaker system used as well as to the
environmental of the listening room. The following proce-
dure let you set the parameters of the surround mode (DOLBY
PRO LOGIC, DOLBY 3 STEREO).
Once the settings have been done, it is held in memory so re-
adjustment is not necessary even after the mode has been
changed to other modes.
: Keys or controls to be used in this operation
Select the DOLBY PRO LOGIC surround mode.
1
2
Adjust the front speaker balance.
3
PRO LOGIC
Select the CENTER MODE.
CENTER
MODE
Lights
÷ Select a surround mode according to the played source and your
system components.
Each press of CENTER MODE key switches the modes as follows:
1 NORMAL : When the center speaker is a compact
speaker.
2 WIDEBAND : When the center speaker is a large speaker.
3 PHANTOM : When no center speaker is used.
Adjustment procedure: Each press of the SETUP key switches the
adjusted items as shown below.
1 Press the SETUP key (on the remote con-
trol unit).
2 Adjust the front speaker (left & right)
levels so that the left and right levels are
identical.
3 Press the SETUP key again to establish
the setup.
After this, the unit enters the condition
for “
4 Adjust the volume level of each
speaker”.
SETUP
LEVEL
CONTROL
3 Adjusting the front speaker balance
4 Adjusting the volume level of each speaker
5 Adjusting the delay time
End of setup
To cancel setup in the middle, press the SETUP key repeatedly until the
setup mode is cancelled.
Adjustments for surround play
POWER
PHONES
ON/STANDBY
UP DOWN
1 2 3 4 5 6 7 8 9 0
AUTO DIRECT MEMORY
PRO LOGIC
STEREO SRS 3D
N.B. SOURCE DIRECT
P.CALL
3 STEREO
TUNING TAPE2 MONITOR
POWER 1 2 3
4 5 6
7 8 9
DISK SKIP
0
+10
SOUND
CENTER MODE
A/B +100
TUNER CD PHONO
VIDEO2 MUTE
1 ¡
7 6
AV AUX
REMOTE CONTROL UNIT RC-R0505
4 ¢
2
AUTO BAND
P.CALL
VOLUME CONTROL
STANDBY
SPEAKERS
SRS 3D SPEAKERS INPUT SELECTOR VOLUME CONTROL
+10
AUDIO-VIDEO SURROUND RECEIVER KR-897
BAND DIMMER
VIDEO1 TAPE1
SETUP
TAPE2 MONITOR
LEVEL CONTROL
LISTEN
MODE
SURROUND
P R O L O G I C
Center position
indication
SURROUND
- - - y - - t
Right speaker
position Left speaker
position
Balance setup
To decrease the
left channel sound
To decrease the
right channel sound
