-18-
Module Outline

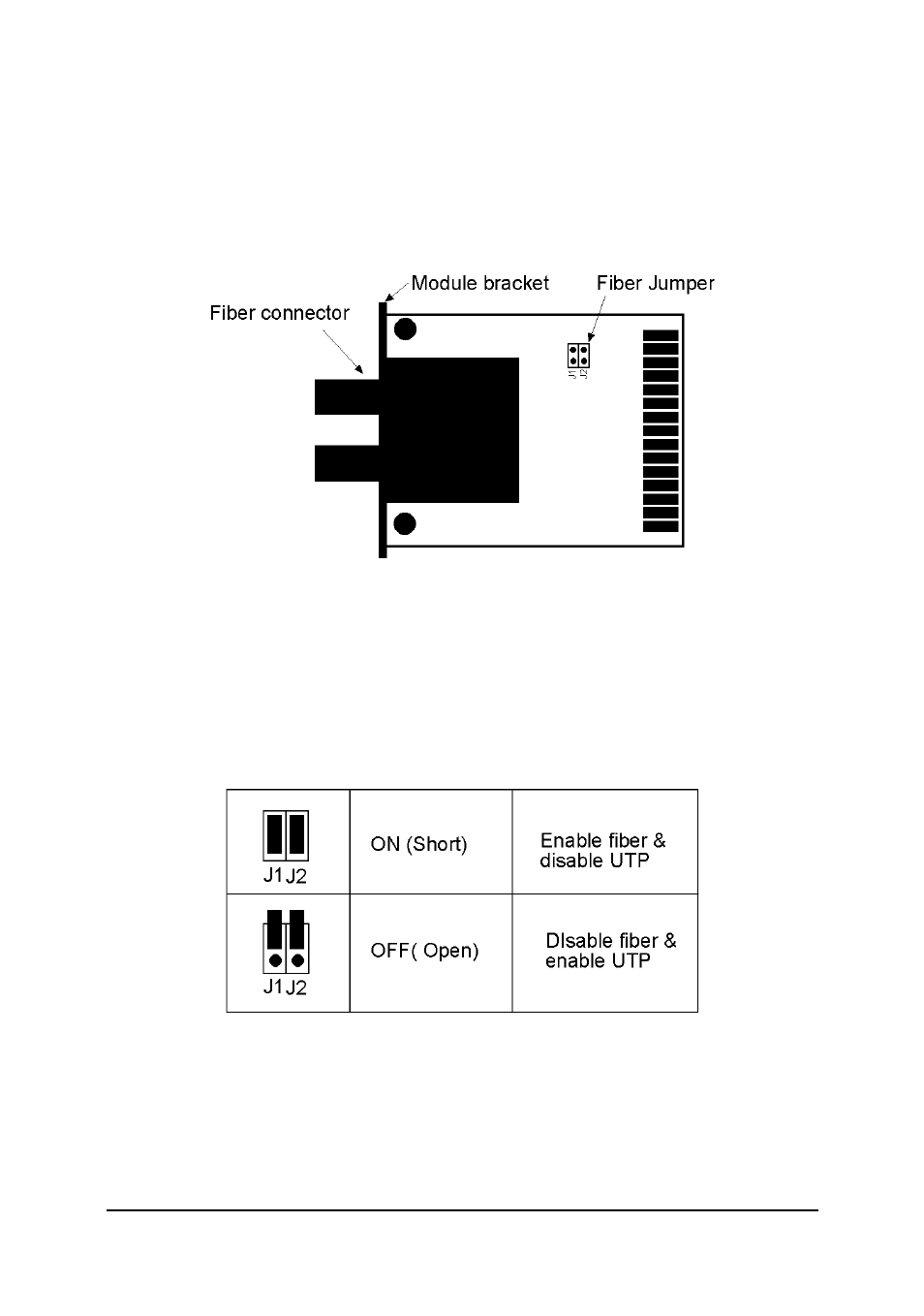

The following figure illustrates an example of the fiber modules. Different
type of modules is mounted with different fiber connector.
Fiber Module (Top view)
Fiber Jumper Setting
The jumper group J1 on the module is used to enable or disable the
fiber module. The following figure shows the jumper setting defini-
tions:
Fiber Jumper Setting
