3. Making Network Connections

3.1 Network Switched Ports

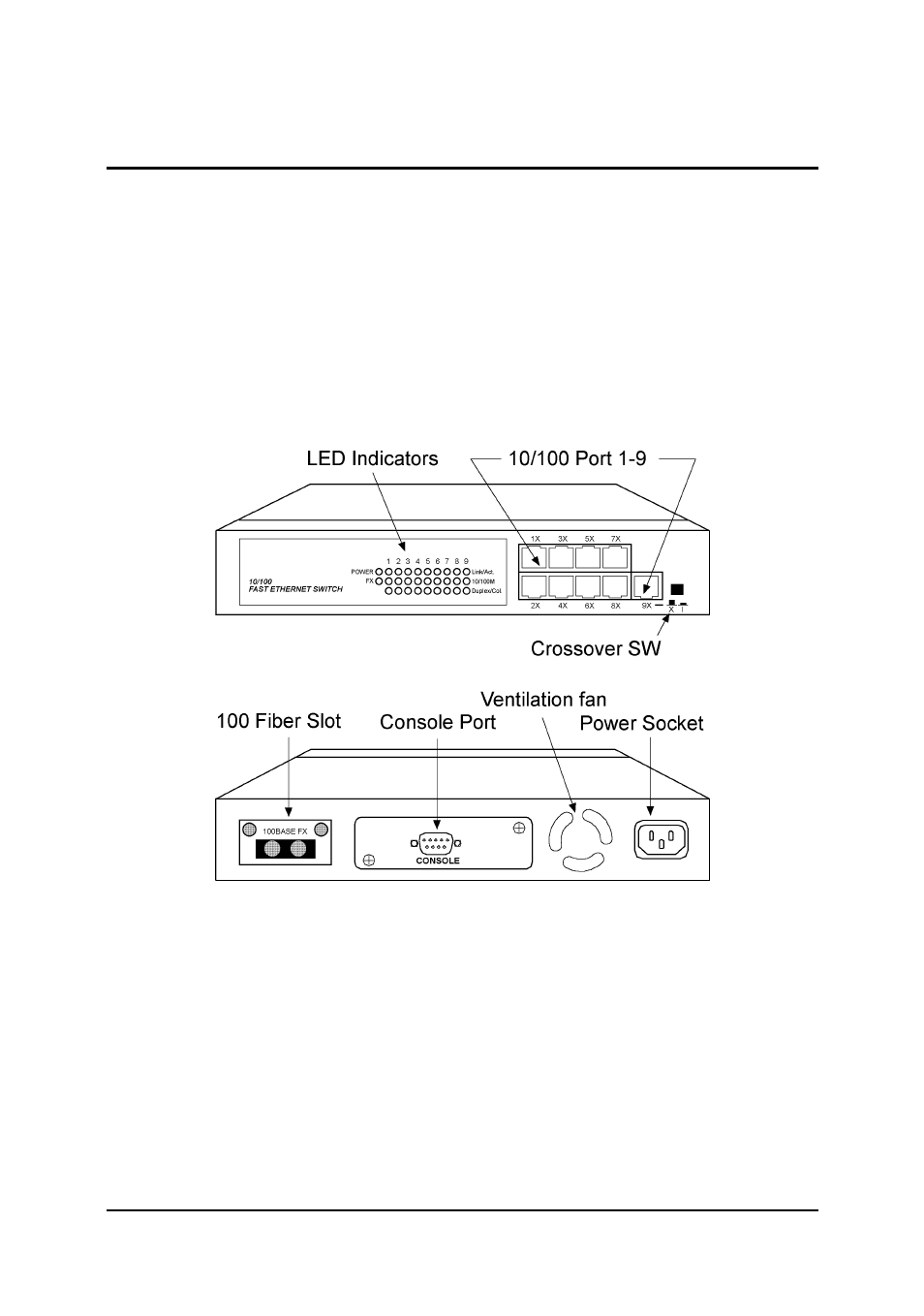

The following figure illustrates the switched ports provided on the switch.

The switch comes with nine Fast Ethernet switched ports and Port #9

provides two connection types, one is 10/100BASE-TX RJ-45 connector

and the other is 100BASE-FX fiber slot. The Fast Ethernet fiber slot can

accommodate one optional Fast Ethernet fiber module.

The following table lists the connectors provided on each network ports:

Port #

Standard

Connector type

Mark

Port 1-8

10/100BASE-TX

MDI-X RJ-45

1X - 8X

Port 9

10/100BASE-TX

RJ-45

9X

(crossover SW defines RJ-45 type)

Port 9

100BASE-FX

100 Fiber Slot

100BASE-FX
