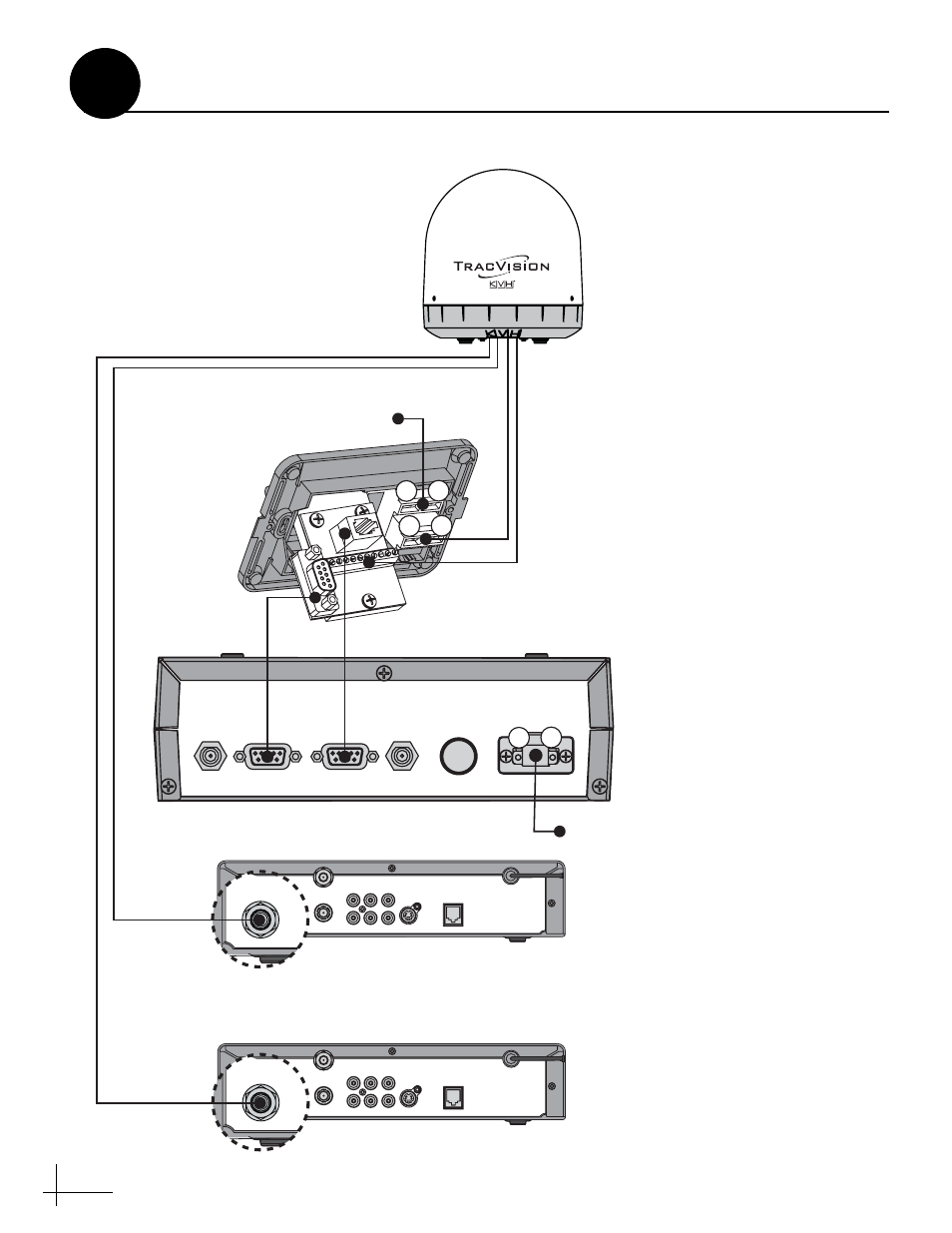

Wiring One or Two Receivers*
Continued...
F
HDTV
CONTROL
ANTENNA UNIT
RF PORT
TONE
DETECT
FUSE
POWER IN
+ / –
Data
MCP
Switchplate
Antenna
Power
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
Secondary Receiver - Optional
Primary Receiver
SATELLITE IN
OUT TO TV
TV ANT/CABLE IN
AUDIO
VIDEO
S-VIDEO
PHONE JACK
R
L
SATELLITE IN
This receiver controls
satellite selection
RF1
RF2
+12 VDC
+12 VDC
+
–
+
–
+
–
* Does not apply to DIRECTV HDTV
