Anschließen des auto blende objektiv konnektor – Samsung SCC-B2091P User Manual
Page 33
9
D

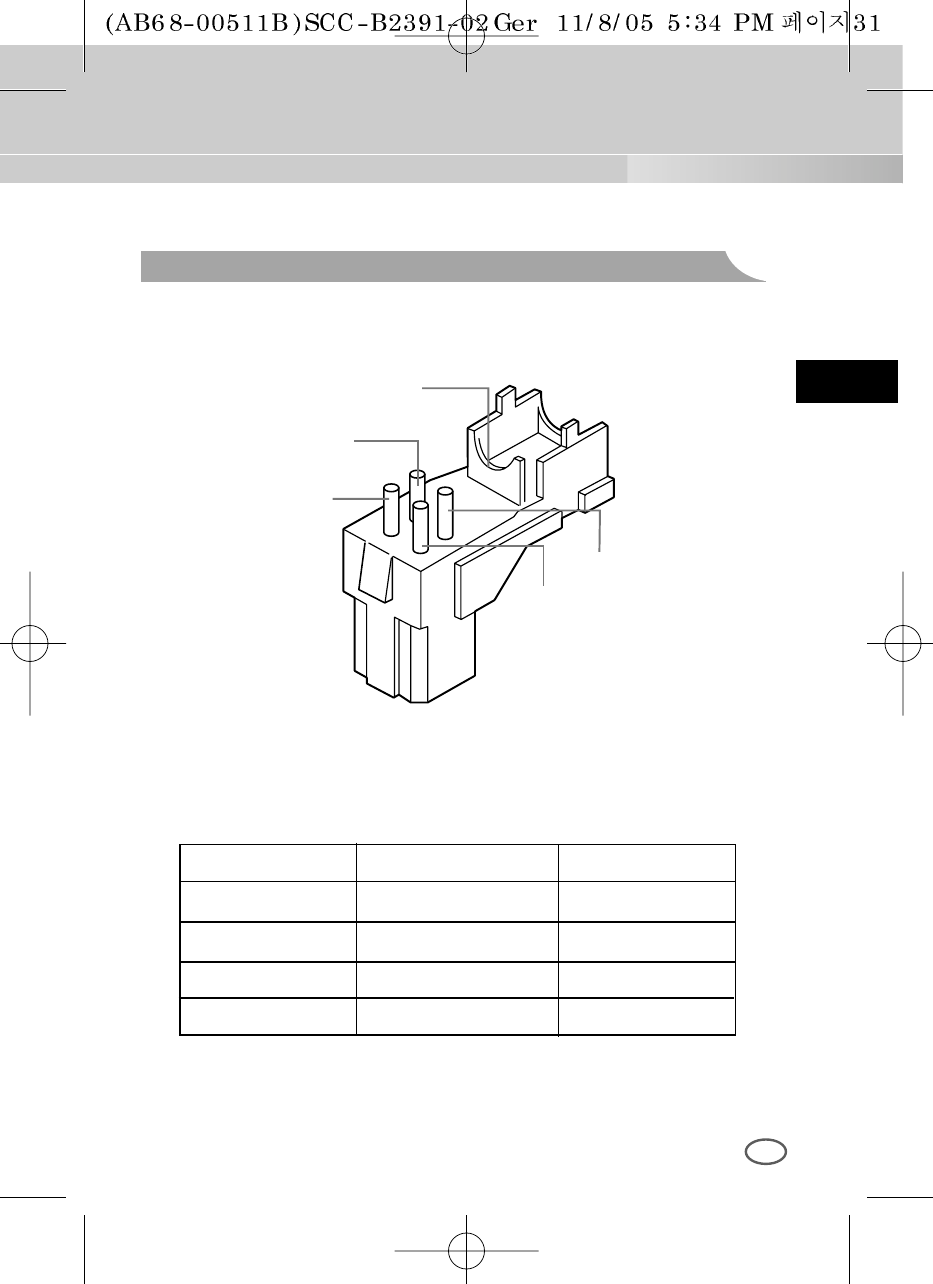

Anschließen des Auto Blende Objektiv Konnektor
Vorbereiten Sie den folgenden Auto Blende Objektiv Konnektor vor, der mit der
Kamera geliefert wird.
Schließen Sie das Kabel des Kontrollkabels, dessen Verkleidung abgestreift
wird, an den Auto Blende Objektiv Konnektor an, wie unten gezeigt.
Stecknadel Nr.
DC Kontrolltyp
VIDEO Kontrolltyp
1 Damp(-)
Strom
(+12V)
2 Damp(+)
N/A
3
Drive(+)
VIDEO Signal
4
Drive(-)
GROUND
Rb
Pin3
Pin2
Pin4
Pin1
