STEP 5

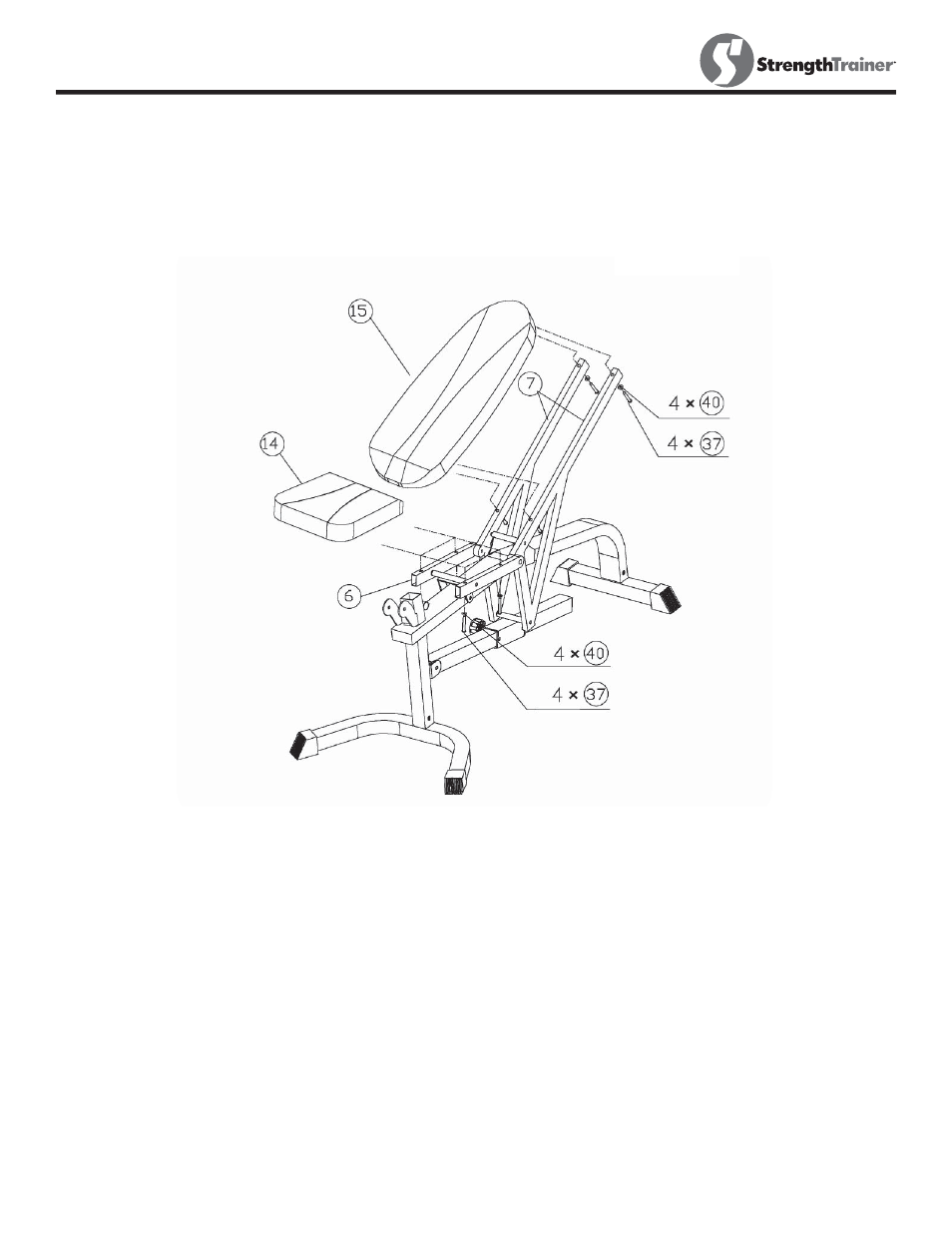

DIAGRAM 5

Place the Seat Pad (#14) onto the Seat Support Frames (#6). Align
the holes and secure it with four M8×2" Allen Bolts (#37) and four
5/8" Washers (#40).

Place the Backrest Board (#15) onto the Backrest Supports (#7).
Align the holes and secure it with four M8×2" Allen Bolts (#37) and
four 5/8" Washers (#40).

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
