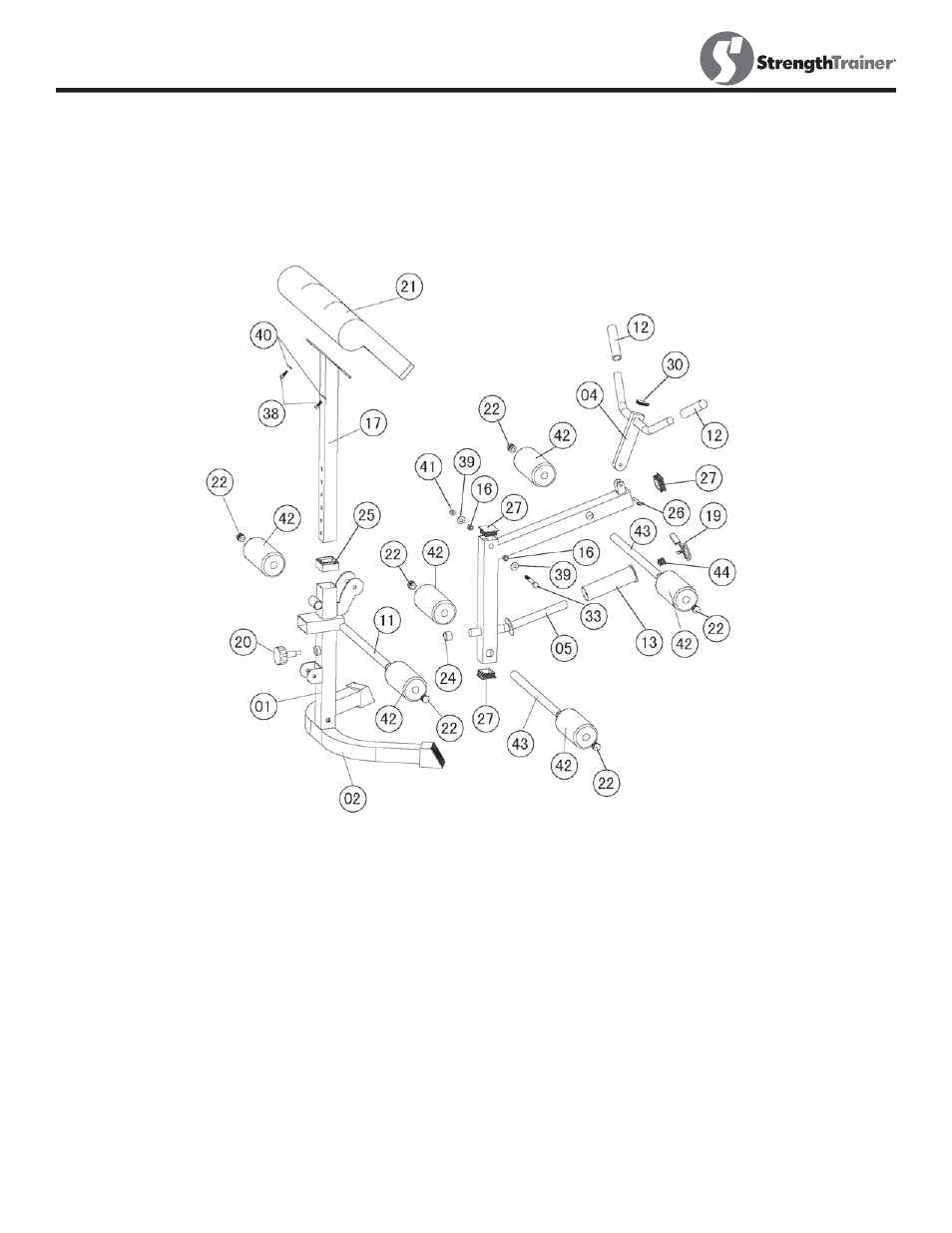

DIAGRAM 6
STEP 6
Insert the Arm Curl Stand (#17) into the top opening in front of the Seat. Secure it with
a Knob Lock (#20) underneath the Seat. Attach the Arm Curl Pad (#21) to the Arm
Curl Stand (#17). Secure it with two M8×5/8" Allen Bolts (#38) and two 5/8" Washers
(#40).
Attach the Leg Developer (#5) to the bracket of the Main Frame (#1). Secure it with an
M10 Nylon Nut (#41), two 3/4" Washers (#39) and two M10×3" Allen Bolts (#33).
Insert the Olympic Sleeve (#13) onto the weight post of the Leg Developer. Attach the
1" Spring Clip (#19) to the post. NOTE: When using the bench at a decline position to
do Ab exercises, place at least 30lbs of weights on the leg developer to hold it down.
NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
