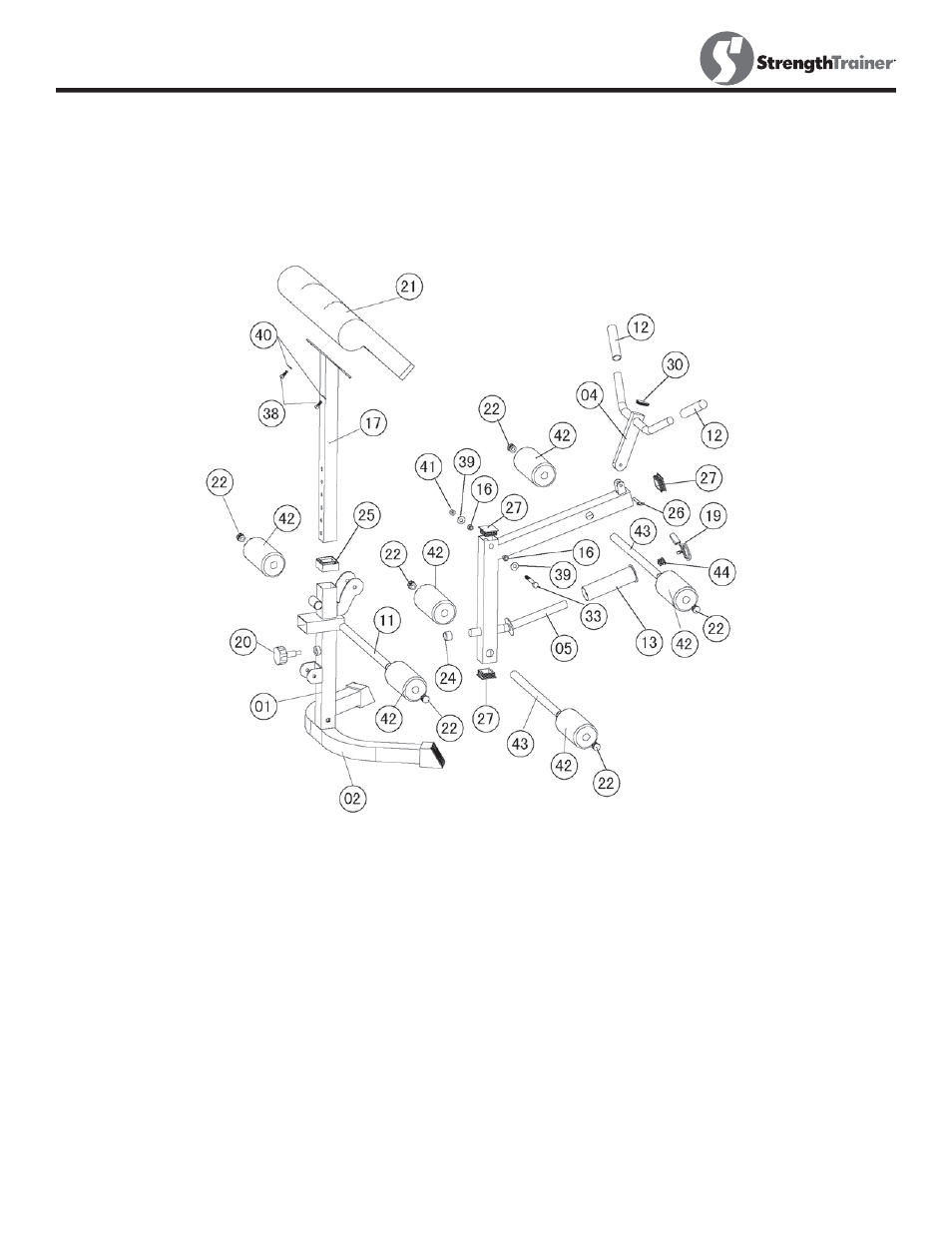

DIAGRAM 6

STEP 6 cont.

Insert one 17" Long Foam Roll Tube (#11) halfway through the holes on front of the
Main Frame (#1). Insert two 16" Foam Roll Tubes (#43) halfway through the holes on
the Leg Developer (#5). Push six Foam Rolls (#42) onto the Tubes from both sides. Plug
six Foam Roll End Caps (#22) to the ends.

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.
