6

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

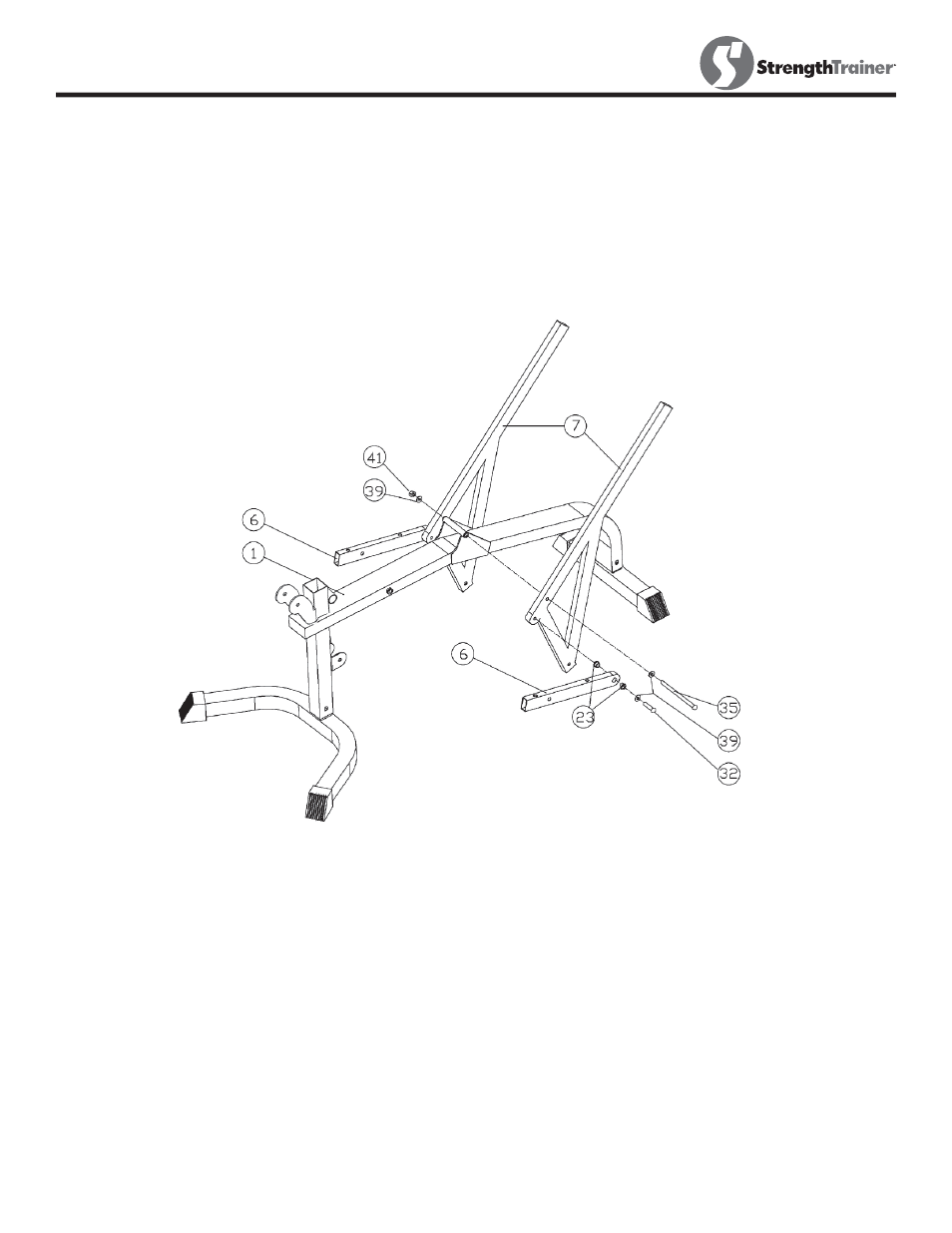

DIAGRAM 2

Attach two Bushings (#23) to each Seat Support Frames (#6).

Attach one Backrest Support (#7) to the Seat Support Frame (#6). Align the holes and
secure them with one M10×1 5/8" Allen Bolt (#32) and one 3/4" Washer (#39). (Repeat
the same procedure to install the other side.

Attach the two Backrest Supports (#7) to the pivot on the Main Frame (#1). Align the
holes and secure them with one M10×6 1/4" Allen Bolt (#35), two 3/4" Washers (#39)
and one M10 Nylon Nut (#41).

STEP 2

Assembly
