STEP 3

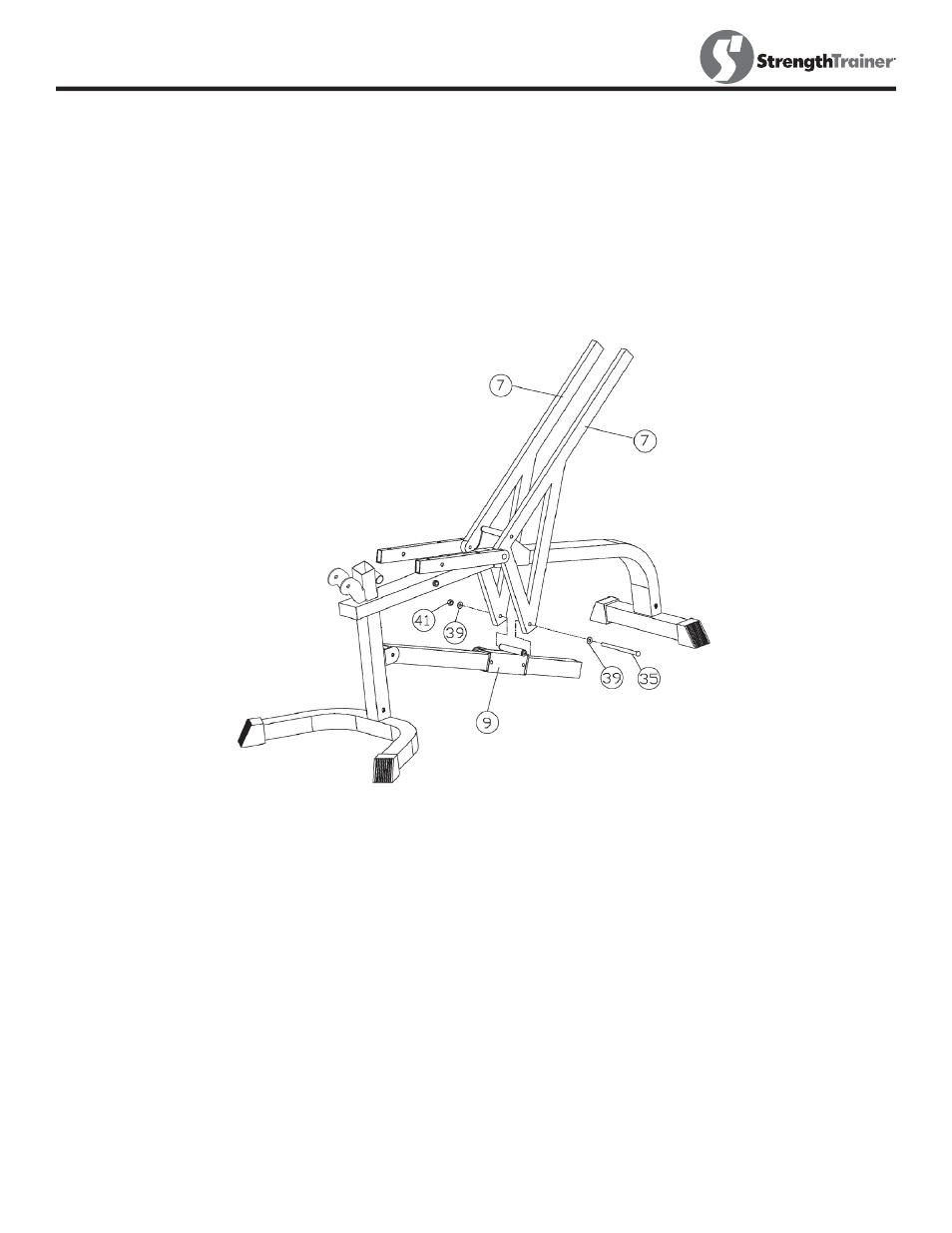

DIAGRAM 3

Align the holes on the two Backrest Supports (#7) to the pivot on the Sliding Block (#9).
Secure them with one M10×6 1/4" Allen Bolt (#35), two 3/4" Washers (#39) and one
M10 Nylon Nut (#41).

NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled.

Assembly
