Kompernass KH 6508 User Manual
Page 14
Silvercrest KH 6508/KH 6509

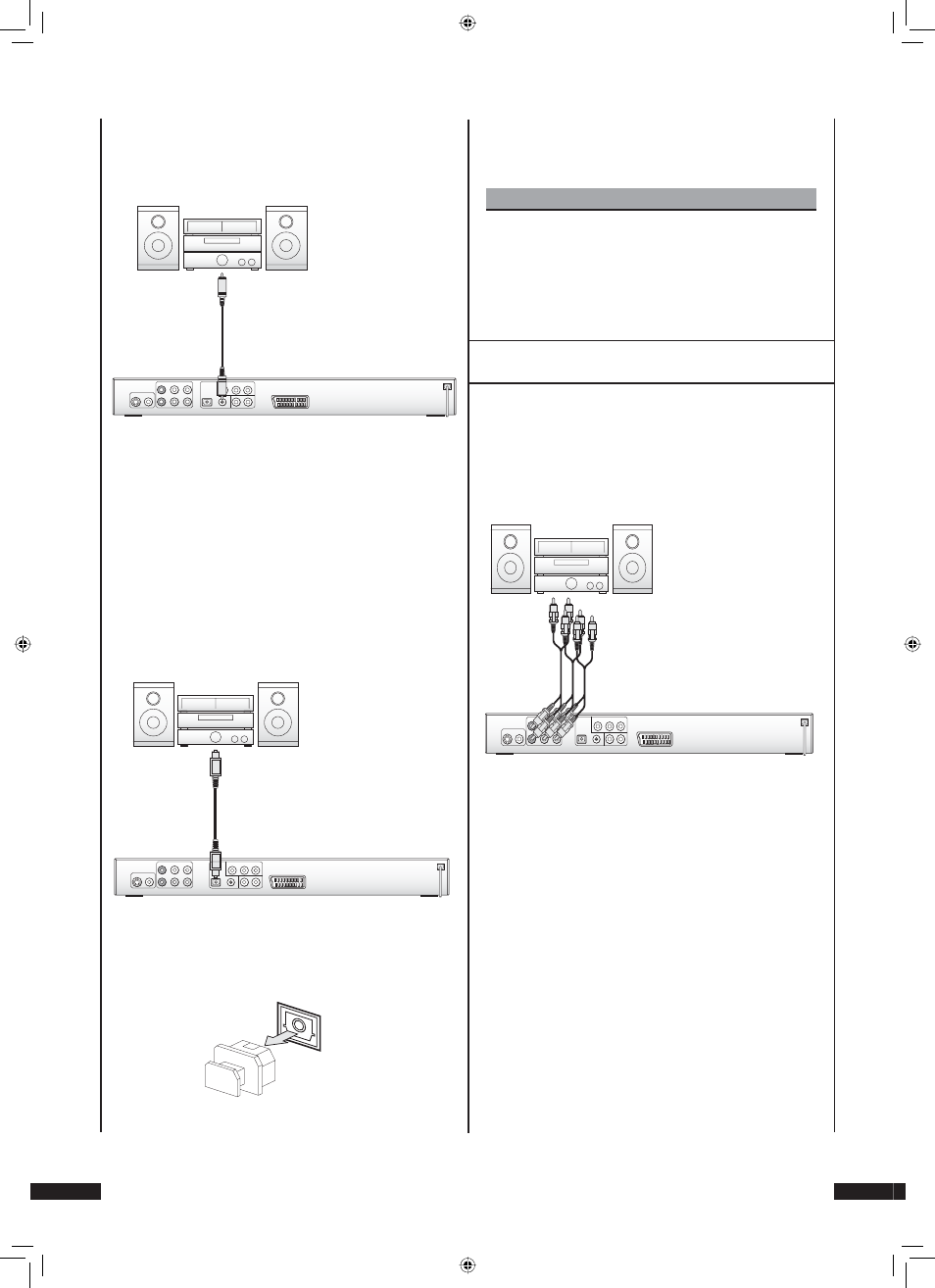

Connection via coaxial cable
Proceed as follows to connect the DVD Player to a surround-
sound system with a digital coaxial cable …
1
Insert the coaxial cable plug into the “COAXIAL” socket
on the back of the DVD Player.
2
Insert the plug on the other end of the coaxial cable in
the corresponding socket of your Dolby Digital or DTS
amplifi er.
Connecting via optical cable
To connect the DVD-Player to an ausio component by means
of an optical cable...
1
Remove the protective plug out of the socket marked
„optical“ on the back of the DVD-Players and insert the
plug of the optical cable.
2 Insert the plug at the other end of the optical cable into
the corresponding socket on the audio
component.
Note:
Make sure that no dirt can enter into the socket for the
optical cable. This could cause signal interference.
Always insert the protective plug into the socket if
no optical cable is connected.
.. Connecting digital audio-components via
analog cable
If the digital audio-component does not have a digital input,
then the DVD Player can also be connected via a conventional
analog chinch cable.
Proceed in the following manner to connect the DVD
Player with analog cables …
1
Insert a chinch cable in the…
• “FL“ socket (Front L channel)
• “FR“ socket (Front R channel)
• “SL“ socket (Rear L channel)
• “SR“ socket (Rear R channel)
• “CENTER“ socket (front middle channel) and
• the
“SUBWOOFER“
(Bass)
socket
… at the back of the DVD Player.
2
Connect the chinch cable with the corresponding analog
inputs on the digital audio component.
