Preparations
1 2
KR-V9090/8090 (En/T)
Operations
Other
−
+
R L
SURROUND
SPEAKERS
B
R L
FRONT SPEAKERS
ª · ª ·
A
R L
FRONT SPEAKERS
−
+
C
CENTER SPEAKER
ª · · ª
ª
·
SURROUND CENTER
SUB
WOOFER
PRE OUT
• Never short circuit the + and – speaker cords.
• If the left and right speakers are connected inversely or the
speaker cords are connected with reversed polarity, the
sound will be unnatural with ambiguous acoustic imaging.
Be sure to connect the speakers correctly.
• To emphasize deep bass sounds, connect a subwoofer as
desired.
1 Strip coating. 2 Loosen. 3 Insert. 4 Secure.

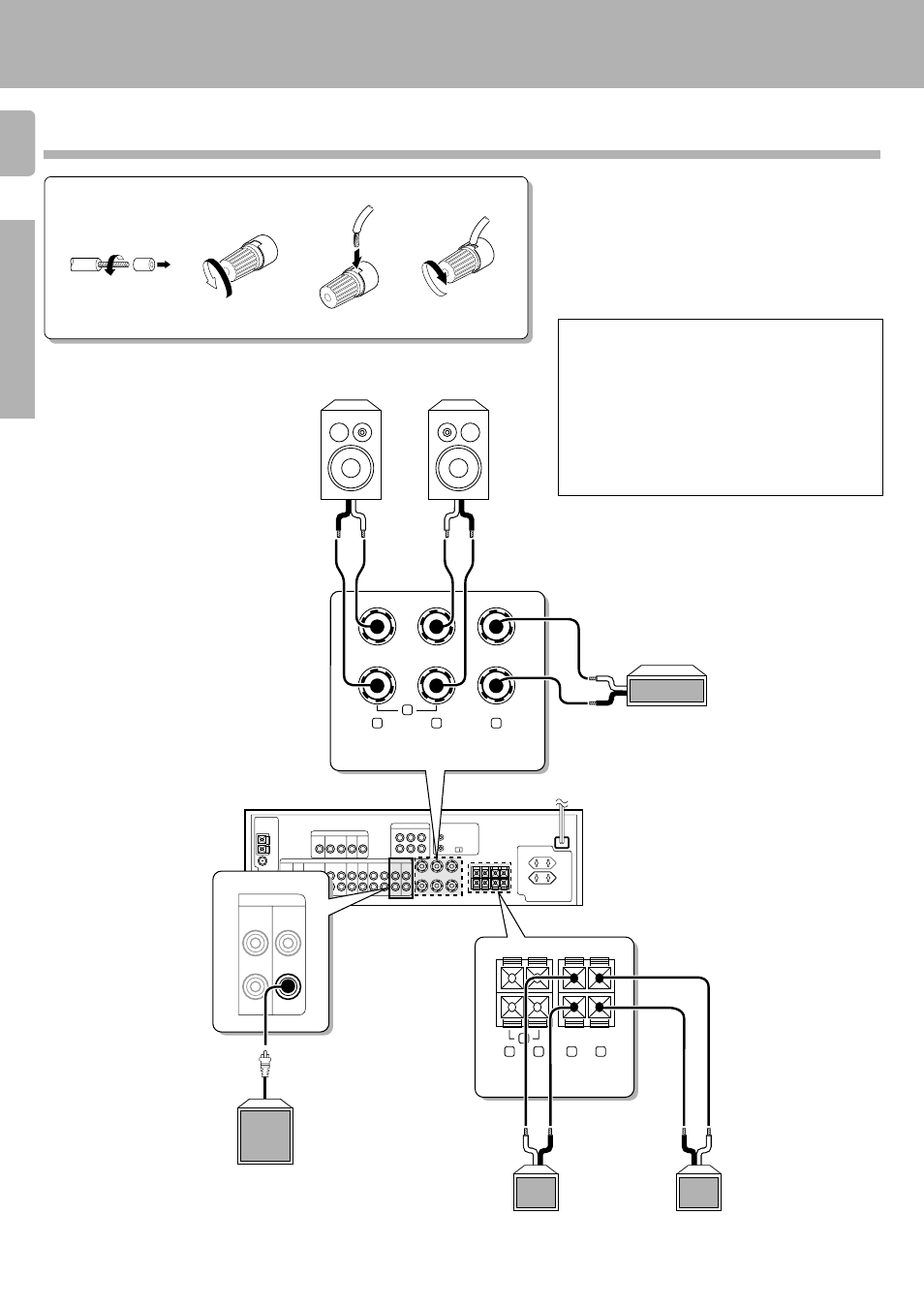

Connecting the speakers
Setting up the system
Right
Front Speakers A
Left Right
Use the FRONT
SPEAKERS B ter-
minals if you want
to connect a sec-
ond front speaker
system.
Left
Center Speaker
Center speaker impedance:
KR-V9090: (4–16
Ω
)
KR-V8090: (4–16
Ω
)
Surround
Speakers
Surround speaker
impedance:
KR-V9090: (4–16
Ω
)
KR-V8090: (8–16
Ω
)
(Be sure to connect both surround speakers)
Powered
subwoofer
Speaker impedance
When only one pair of speakers is connected to
the A or B speaker terminals, use speakers having
an impedance of 4 to 16
Ω
, when two pairs of
speakers are connected to both A and B terminals
simultaneously, use speakers having an imped-
ance of 8 to 16
Ω
. In this case, connecting a
speaker having an impedance of less than 8
Ω
may
cause malfunction of the receiver.
Front speaker impedance:
KR-V9090: (A OR B: 4–16
Ω
, A AND B: 8–16
Ω
)
KR-V8090: (A OR B: 4–16
Ω
, A AND B: 8–16
Ω
)
