Installation

2 CAUTION

• Do not install in the below locations;

(Unstable location, In a location that interferes
with driving, In a location that gets wet, In a dusty
location, In a place that gets hot, In a place that gets
direct sunlight, In a location that gets hit by hot air)

• Do not install the unit under the carpet. Otherwise

heat build-up occurs and the unit may be damaged.

• Install this unit in a location which allows heat to

easily dissipate.
Once installed, do not place any object on top of the
unit.

• The surface temperature of the amplifier will become

hot during use. Install the amplifier in a place
where people, resins, and other substances that are
sensitive to heat will not come into contact with it.

• This unit has cooling fan to decrease the internal

temperature. Do not mount the unit in a place where
the cooling fan and ducts of the unit are blocked.
Blocking these openings will inhibit the cooling of
the internal temperature and result in malfunction.

• When making a hole under a seat, inside the trunk,

or somewhere else in the vehicle, check that there
is nothing hazardous on the opposite side such as a
gasoline tank, brake pipe, or wiring harness, and be
careful not to cause scratches or other damage.

• Do not install near the dashboard, rear tray, or air bag

safety parts.

• The installation to the vehicle should securely fasten

the unit to a place in which it will not obstruct
driving. If the unit comes off due to a shock and hits
a person or safety part, it may cause injury or an
accident.

• After installing the unit, check to make sure that

electrical equipment such as the brake lamps,
turn signal lamps and windshield wipers operate
normally.

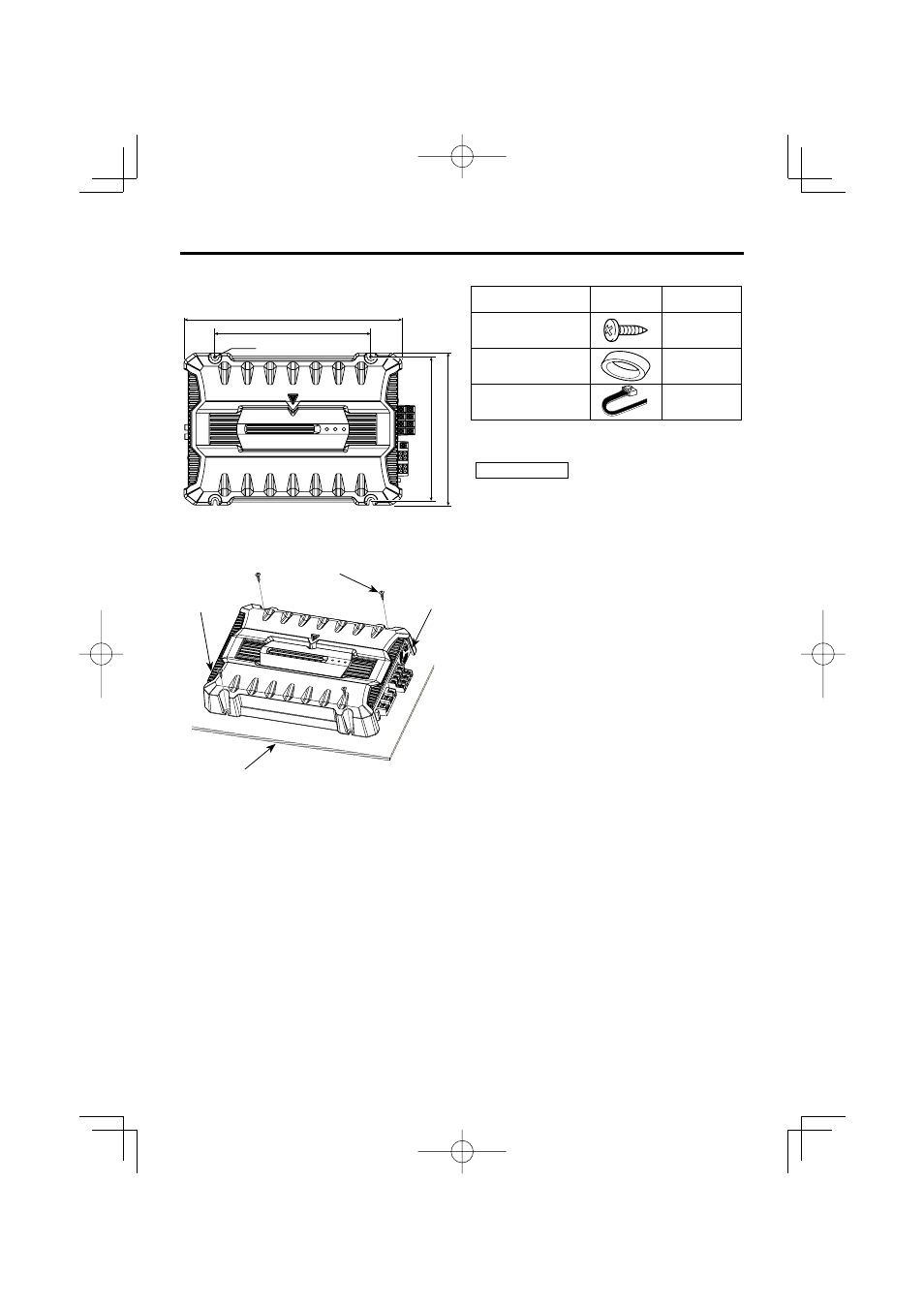

Installation board, etc.
(thickness : 15 mm or more)

Self-tapping screw
(ш4 Ч 16 mm)

330 mm
236 mm

Ø4.6

218.4 mm

230 mm

Accessories

Part name

External

View

Number of

Items

Self-tapping screws
(ш4 Ч 16 mm)

4

Terminal cover
(Power terminal)

1

Speaker level input
cable

1

Cooling fan
(KAC-7404)

Cooling fan
(KAC-7404)
