17
AC ADAPTER (SOLD SEPARATELY)
The AC adapter allows the camera to be
powered from a household outlet. The AC
adapter is recommended when the camera
is interfaced with a computer or during
periods of heavy use. AC adapter model
AC-9U is for use in North America, Taiwan
and Japan; AC-9GB is for the United
Kingdom and Hong Kong; AC-9C is for
China; AC-9E is for use in all other areas.

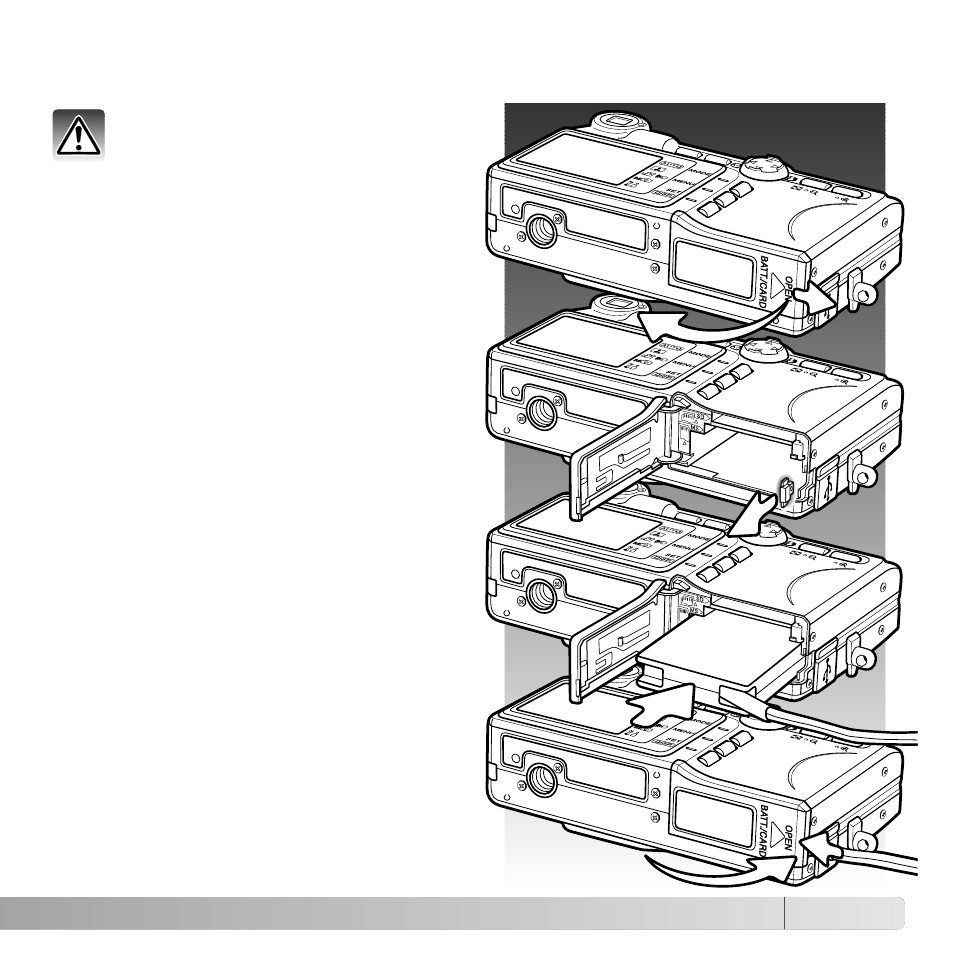

Slide the battery-chamber door toward the
side of the camera to release the safety
catch (1). Open the door.
Remove the battery and the cable-slot
cover (2).
Insert the adapter making sure the cable
passes through the slot at the side of the
camera (3).
Close the battery-chamber door (4) and
slide it toward the camera to engage the
safety catch.
Connect the AC adapter cables as
described in the adapter's instruction
manual. Read all warnings and cautions in
the manual before using the AC adapter.
Always turn off the camera before
changing between power supplies.
3
2
1
4
