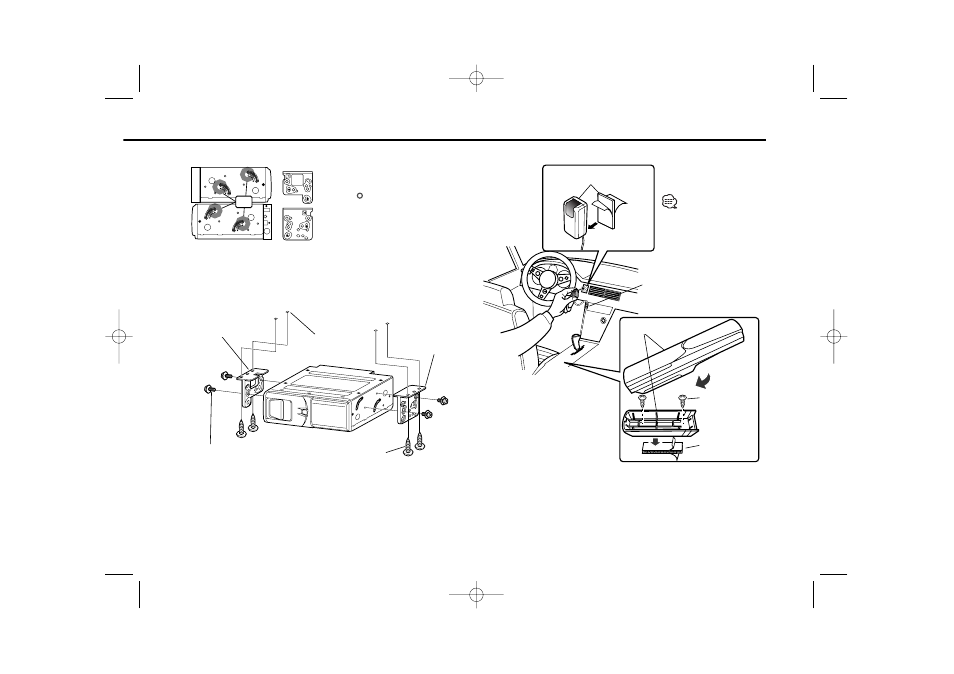

■ In case of hanging in the trunk
H
V 45 °
H
V 45 °
H
V
45 °
H
V 45 °
3
3
3
3
“H”
Accessory 1 (R)
Accessory 4
(M5 x 8) Accessory 3
(Ø5 x 12)
Accessory 1 (L)
Ø3.6
Set "H" for all the four angle
adjustment parts on both sides.
Cover the holes indicated by
"
3"/" " with the dustproof
seals ! , @ .
Use the holes marked " ●" to
install the unit.
■ Mounting the remote controller
Accessory 9
Accessory $
Light detector of remote
controller (Accessory8)
Accessory $
(M3 x 8 mm)
Accessory #
Clear the surface to be
affixed with
accessories0.
