TEL MUTE

P.CONT.

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

8

EXT. CONT

NON-FAD

English

— 40 —

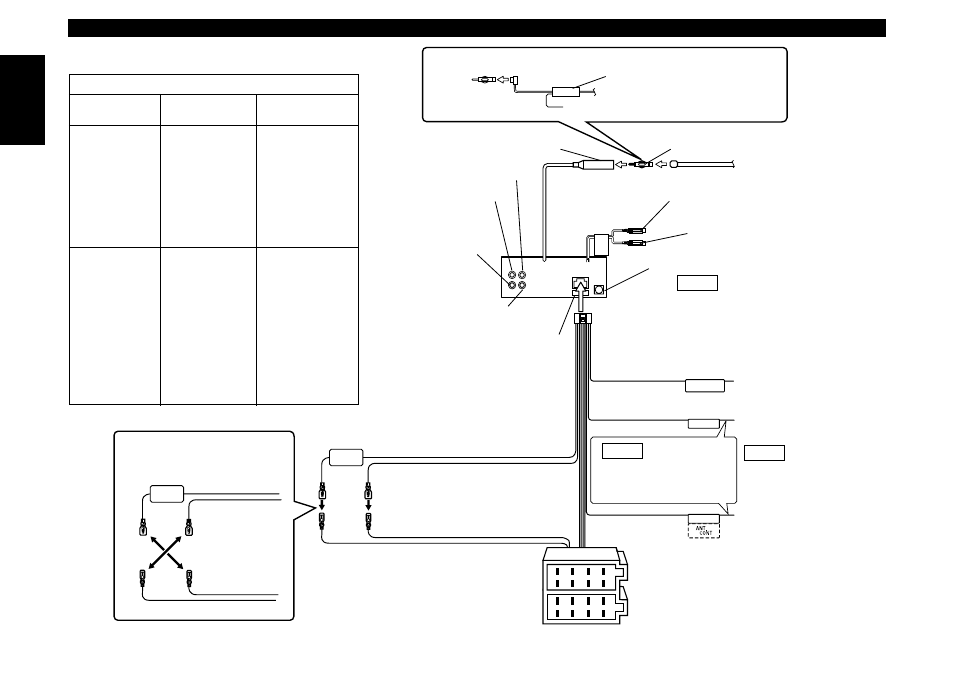

Connecting Cables to Terminals

Front left output (White)

Front right output (Red)

Non-fading right output (Red)
(KRC-PS978R only)

Rear right output (Red)

Rear left output (White)

Connector Function Guide

Pin Numbers for

ISO Connectors

Cable Colour

Functions

External Power
Connector

A–4
A–5
A–6
A–7
A–8

Speaker
Connector

B–1
B–2
B–3
B–4
B–5
B–6
B–7
B–8

Yellow
Blue/White
Orange/White
Red
Black

Purple
Purple/Black
Gray
Gray/Black
White
White/Black
Green
Green/Black

Battery
Power Control
Dimmer
Ignition (ACC)
Earth (Ground)
Connection

Rear Right (

+

)

Rear Right (

)

Front Right (

+

)

Front Right (

)

Front Left (

+

)

Front Left (

)

Rear Left (

+

)

Rear Left (

)

KENWOOD disc changer/DAB control input

Battery cable (Yellow)

Ignition cable (Red)

FM/AM
antenna input

Antenna Cord (ISO)

Antenna Conversion Adaptor (ISO–JASO)
(Accessory3)

To connect the Disc changer or DAB unit,
consult each manual.

NOTE

Wiring harness
(Accessory1)

If no connections are
made, do not let the cable
come out from the tab.

NOTE

Connect to the terminal
that is grounded when
either the telephone rings
or during conversation.

Power control/
Motor antenna
control cable
(Blue/White)

Connect either to the
power control terminal
when using the optional
power amplifier, or to the
antenna control terminal in
the vehicle.

A–7 Pin (Red)

A–4 Pin (Yellow)

Connector B

Fuse(10A)

Connector A

TEL mute cable (Brown)

To connect the KENWOOD
navigation system, consult
your navigation manual.

NOTE

External amplifier
control cable
(Pink / Black)

To "EXT.AMP.CONT."
terminal of the amplifier
having the external amp
control function.

Non-fading left output (White)
(KRC-PS978R only)

Non-fading right output
(Red) (KRC-878R only)

Non-fading left output
(White) (KRC-878R only)

A–7 Pin (Red)

A–4 Pin (Yellow)

Battery cable
(Yellow)

Ignition cable
(Red)

for Volkswagen car

for Volkswagen car

To Power Control terminal

Special antenna cable
(commercially available)
