Preparations
L
VIDEO 3 VIDEO 2 VIDEO 1
R A L C L R
L R B
PLAY IN PLAY IN PLAY IN REC OUT PLAY IN
MONITOR OUT VIDEO 1 DVD
R
75µs
AM 10kHz
FM 100kHz
50µs
AM 9kHz
FM 50kHz
DE-
EMPHASIS
CHANNEL
SPACE
+
FRONT SPEAKERS CENTER SPEAKER
SUB WOOFER
PRE OUT
+ +
FRONT SPEAKERS
SURROUND SPEAKERS
RED BLUE GREEN
GRAY ORANGE
Setting up the system
Right
Front Speakers A
Right
Left
(Be sure to connect both
surround speakers)
Center
Speaker
Surround Speakers
Powered
subwoofer

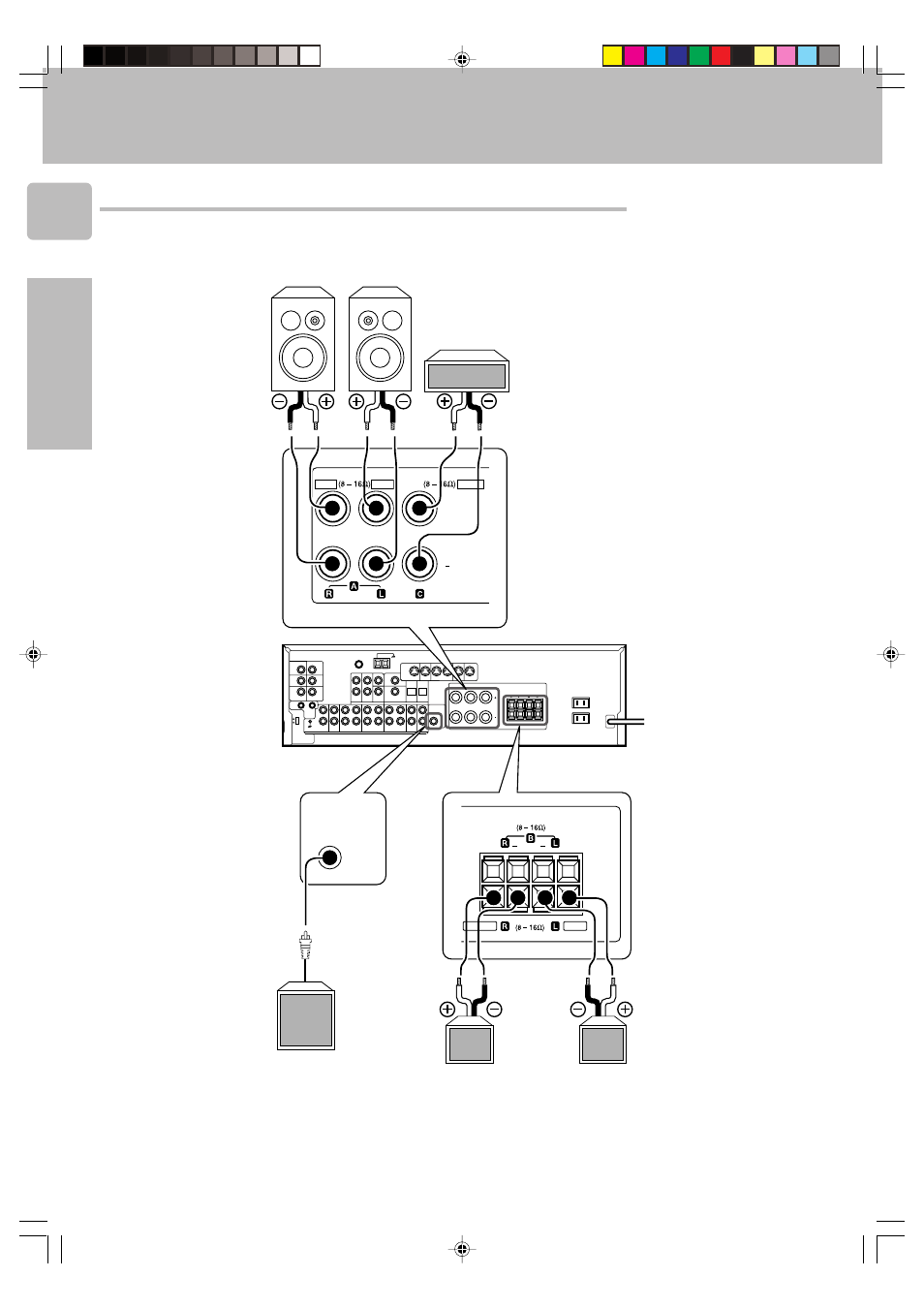

Connecting the speakers
Use the FRONT SPEAKERS B
terminals if you want to connect
a second front speaker system.
