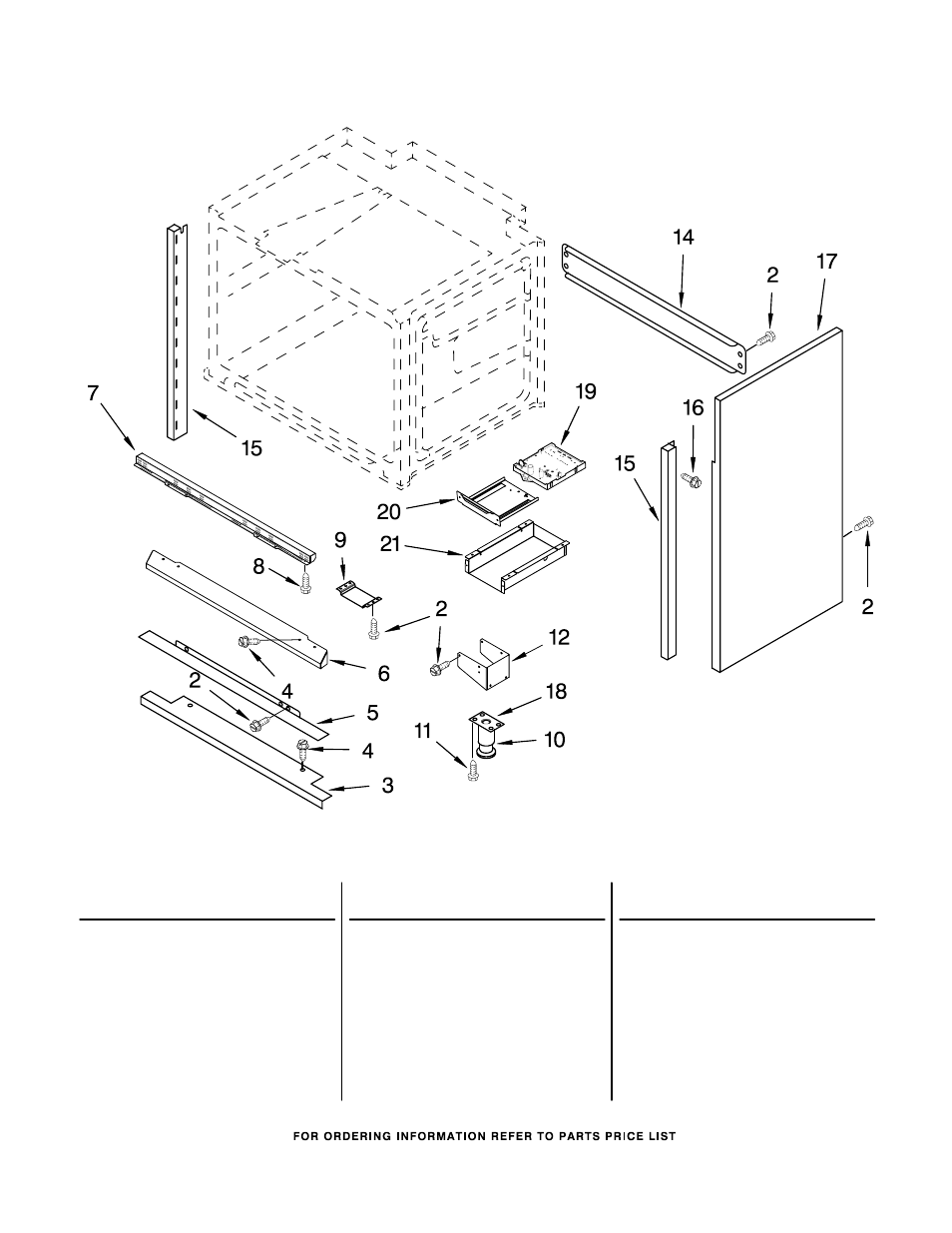

CHASSIS PARTS
For Model:KDRP487MSS03
(Stainless Steel)
8186197
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
2
4449809 Screw, 8−18 x 3/8
3
8301141 Backer, Trim Lower
4
3400837 Screw, 8−18 x 3/8
5
8301137 Deflector, Center
6
8301138 Vent, Bottom Upper
7
8302545 Vent, Center
8301576 Gasket
3400805 Screw (4)
8
3196537 Screw, 8−18 x 3/8
9
9759092 Bracket, Mounting
Regulator
10
9759117 Foot Assembly
11
3400518 Screw,
5/16−12 x 5/8
12
4455644 Gusset
14
9760674 Brace, Rear
15
Trim, Front
8301133 Right Side
8301134 Left Side
16
3400805 Screw, 8−18 x 3/8
17
Side Chassis
4457201 Right Side
4457202 Left Side
3400837 Screw
18
9759118 Plate, Mounting
19
8301195 Control, Master
20
8302528 Box, Control
21
8301577 Bracket, Control
Box
